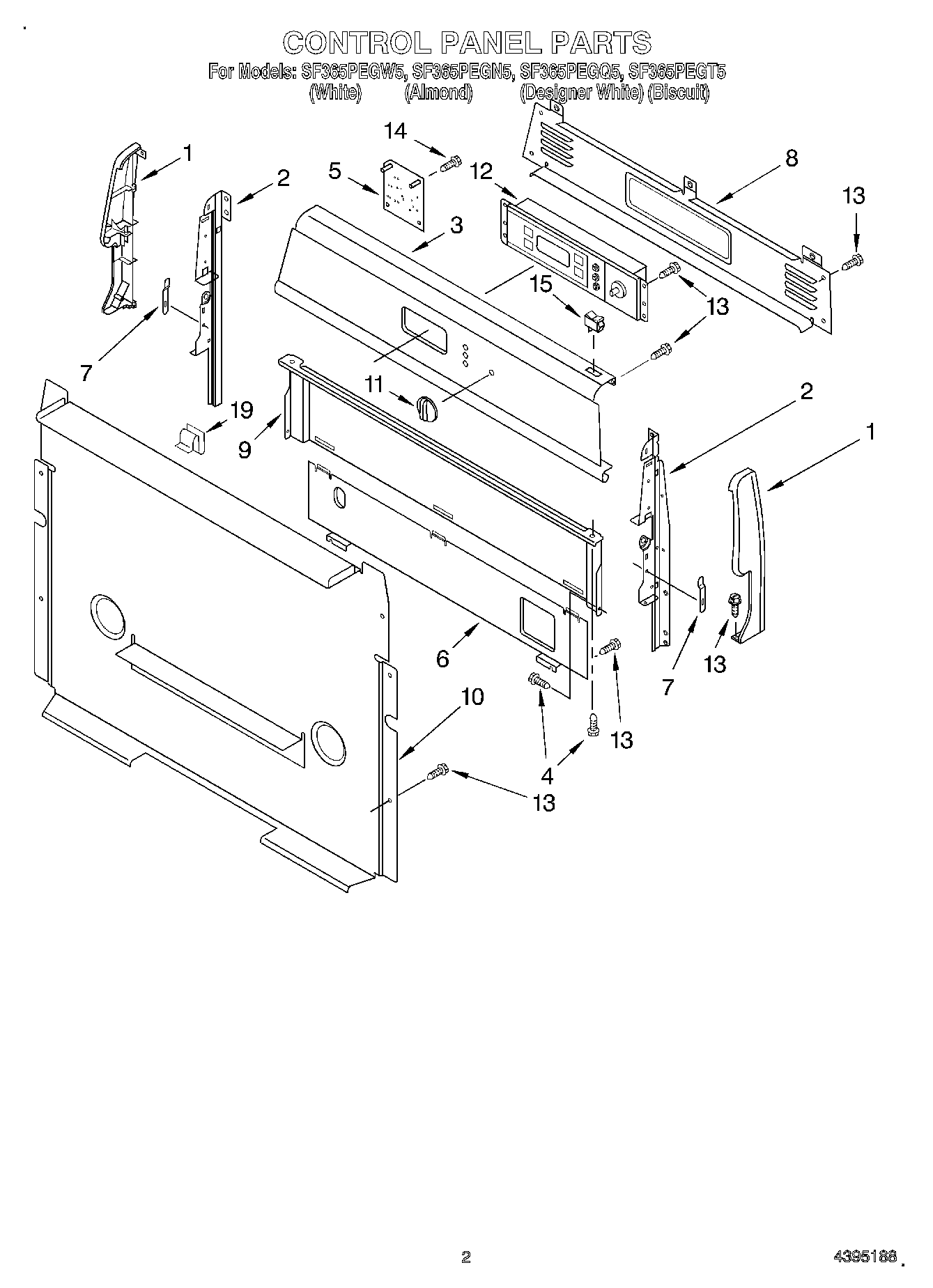

SF365PEGQ5 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Black Left Hand)
1	Endcap, Right Hand (Black)
1	Endcap (Biscuit Left Hand)
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
1	Endcap (Biscuit Right Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (Biscuit)
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
4	Screw
5	WPW10331686 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	3196200 Whirlpool Clip
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
11	Knob, 150 Control (Biscuit)
11	Knob, 150 Control (Black)
11	Knob, 150 Control (White)
12	Control, Range (White)
12	Control, Oven (Black)
12	Control, Oven (Biscuit)
13	SCREW
14	WP3196557 Whirlpool Screw
15	3149360 Whirlpool Light Switch
15	Switch, Rocker (Biscuit)
15	WP4314961 Whirlpool Lite Switch
19	WP8273564 Whirlpool Clip
