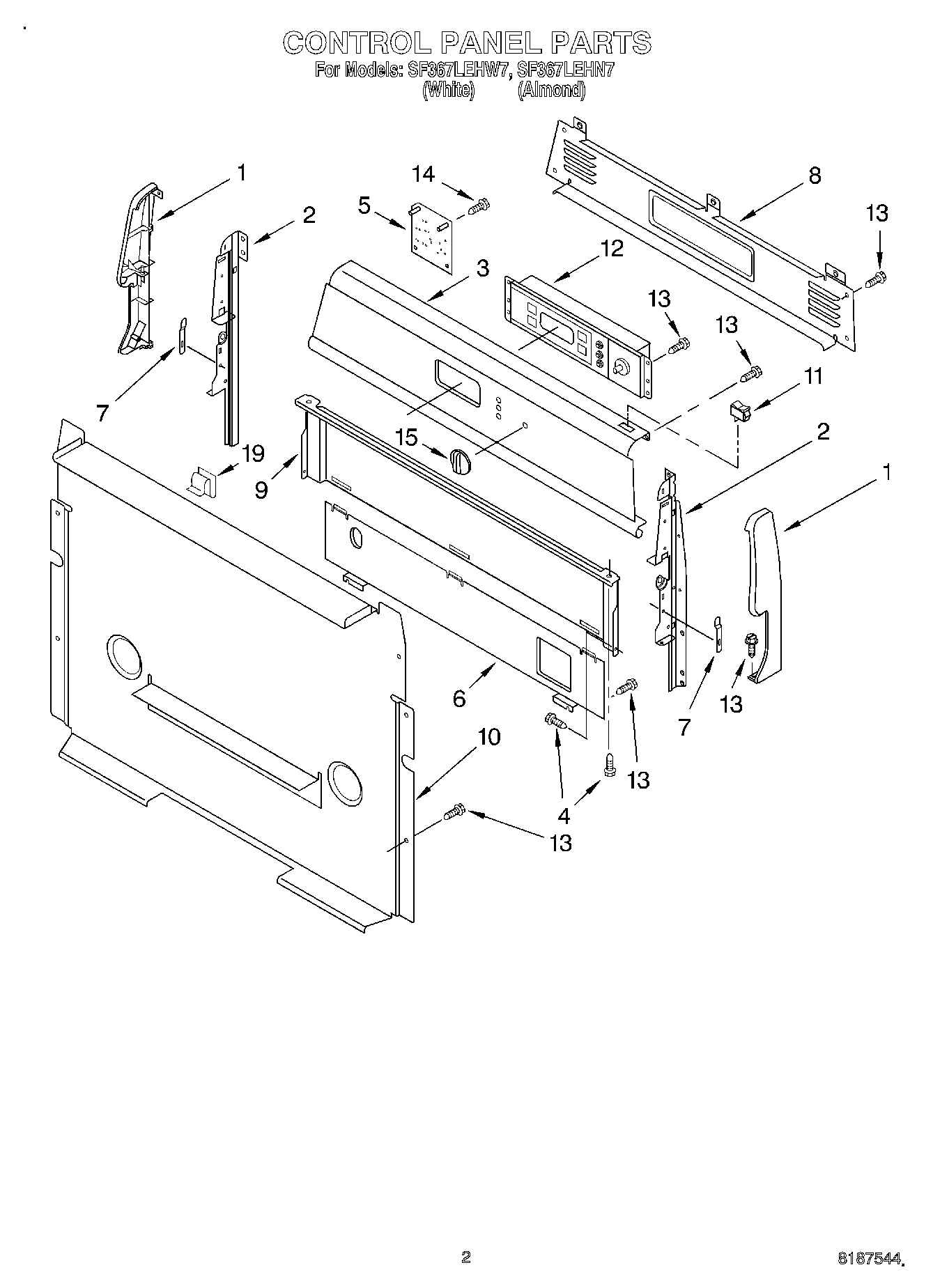

SF367LEHW7 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Black)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11WP4314961 Whirlpool Lite Switch
12Control, Oven (Black)
13SCREW
14WP3196557 Whirlpool Screw
15Knob, 150 Control (Black)
19WP8273564 Whirlpool Clip
