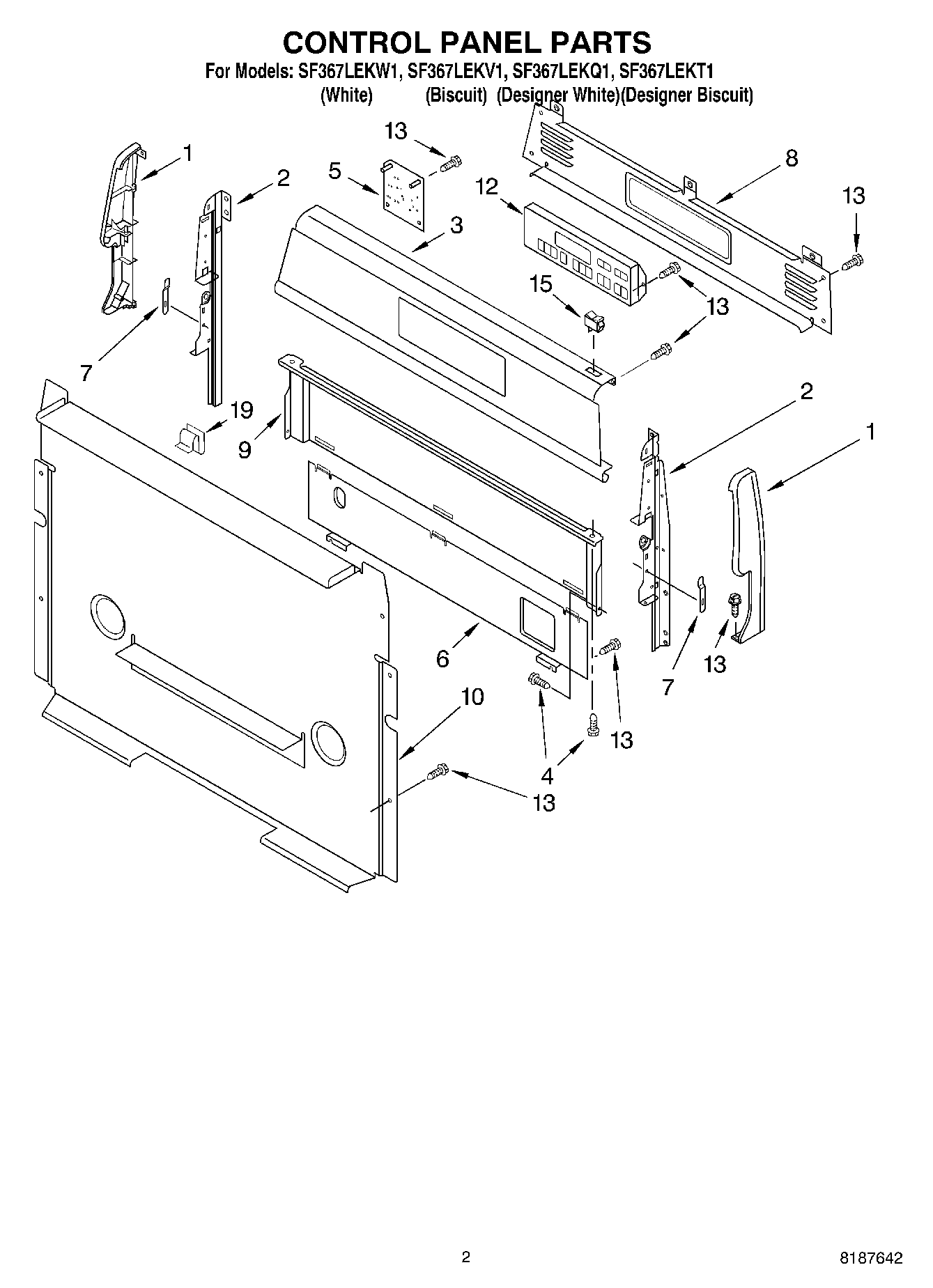

SF367LEKV1 02 – CONTROL PANEL

Products

Position	Product
1	Endcap, Right Hand (Black)
1	Endcap (Black Left Hand)
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
1	Endcap (Biscuit Left Hand)
1	Endcap (Biscuit Right Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (Biscuit)
3	Panel, Backguard (White)
3	Panel, Backguard (Black)
4	Screw
5	WPW10331686 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	3196200 Whirlpool Clip
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
12	Control, Range (White)
12	Control, Range (Black)
12	Control, Range (Biscuit)
13	SCREW
15	Switch, Rocker (Biscuit)
15	3149360 Whirlpool Light Switch
15	WP4314961 Whirlpool Lite Switch
19	WP8273564 Whirlpool Clip
