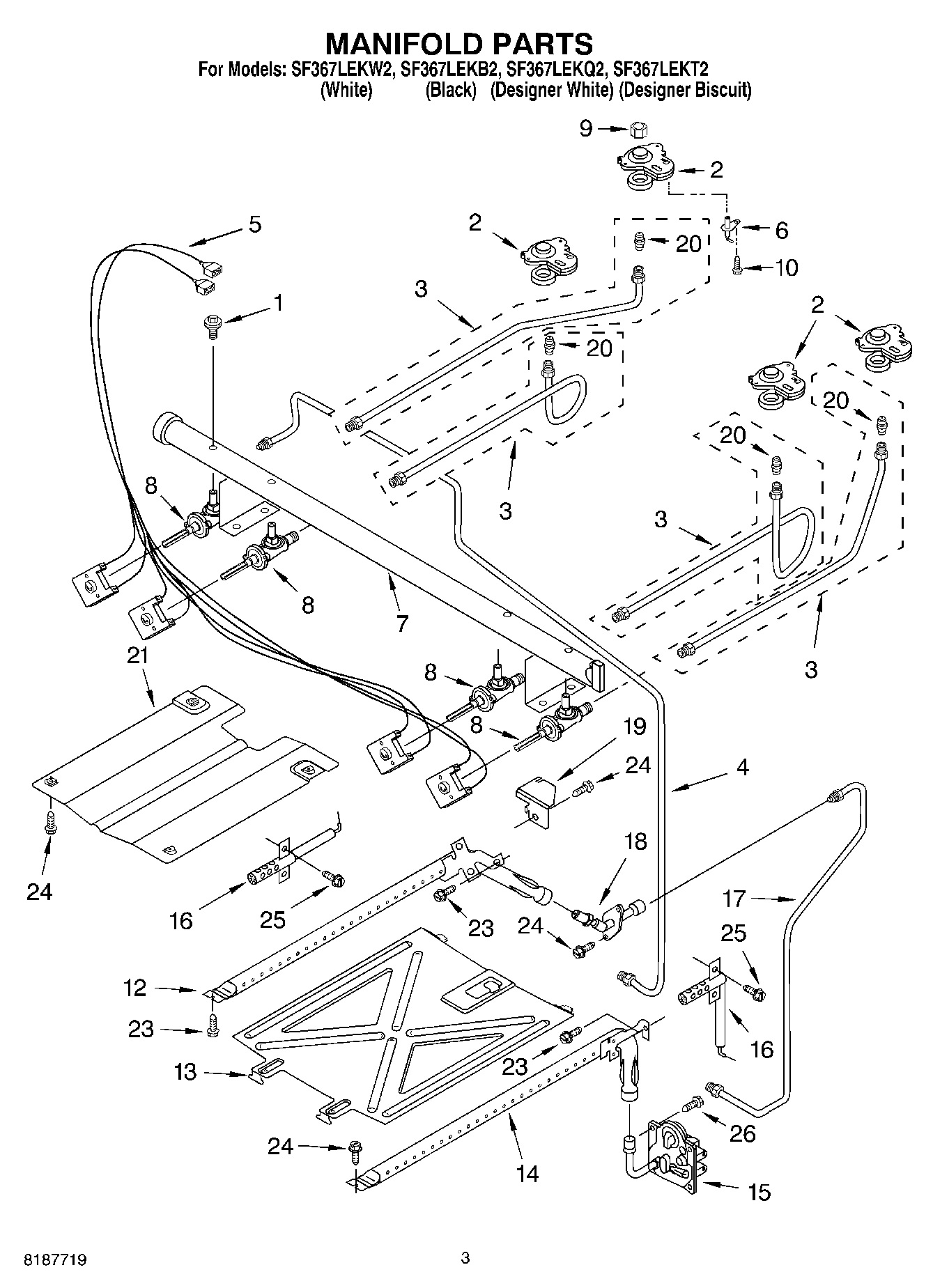

SF367LEKW2 03 – MANIFOLD PARTS

Products

Position	Product
1	WP8273096 Whirlpool Screw
2	WP8273700 Whirlpool Base Burner
3	Tubing, Burner W/Orifice (Right Front)
3	Tubing, Burner W/Orifice (Left Rear)
3	WP8273693 Whirlpool Gas Tubing
3	Tubing, Burner W/Orifice (Right Rear)
4	Tubing (Manifold to Regulator)
5	WPW10295998 Whirlpool Wire Harness
6	WP8523793 Whirlpool Oven Surface Igniter
7	Pipe, Manifold
8	Valve (Right Rear)
8	WP9757218 Whirlpool Burner Valve
9	Nut (4)
10	WP8273062 Whirlpool Screw
12	WP8054078 Whirlpool Broiler Burner
13	Spreader, Flame (Oven)
14	8190618 Whirlpool Gas Range Oven Burner Assembly with Spark Igniter
15	WPW10293048 Whirlpool Gas Valve
16	WP8054129 Whirlpool Oven Igniter
17	Tubing (Broiler Fitting To Valve)
18	Fitting, Broiler
19	Cover, Igniter
20	WP8273066 Whirlpool Orifice
20	WP8273065 Whirlpool Orifice
20	WP8273064 Whirlpool Orifice
20	WP8273067 Whirlpool Orifice
21	W10137062 Whirlpool Burner Baffle
23	3196265 Whirlpool Oven Screw
24	SCREW
25	W11684507 Whirlpool Screw
26	Spuds, LP Gas (Kit of 4)
26	WP3400016 Whirlpool Screw Assembly
26	FOLLOWING PARTS NOT ILLUSTRATED
