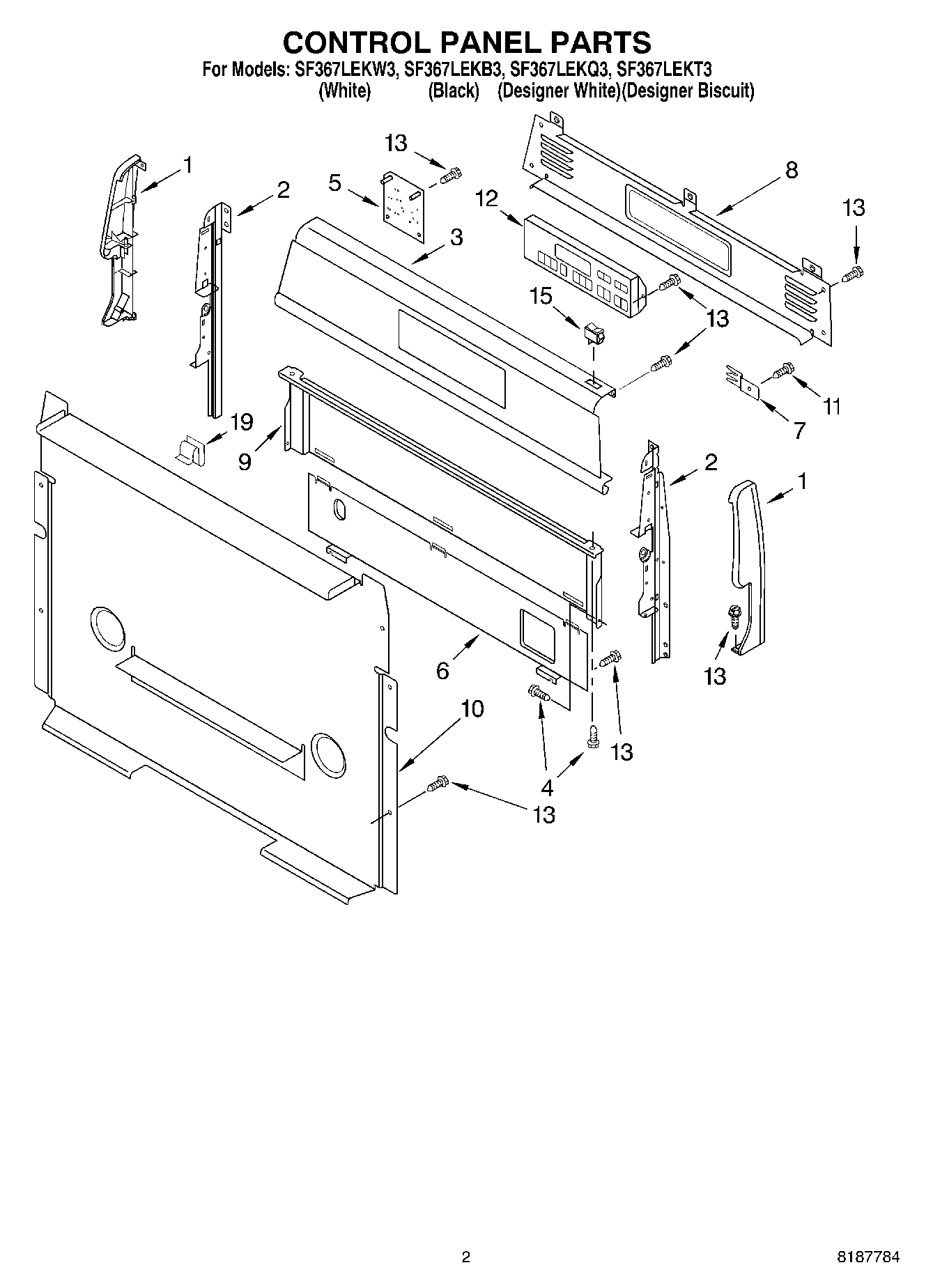

SF367LEKW3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (Black Left Hand)
1	Endcap, Right Hand (Black)
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
1	Endcap (Biscuit Right Hand)
1	Endcap (Biscuit Left Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Control (White)
3	Panel, Control (Black)
3	Panel, Backguard (Biscuit)
4	Screw
5	WPW10331686 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	8523412 Whirlpool Mounting Bracket
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
11	WP3196557 Whirlpool Screw
12	WP6610449 Whirlpool Electronic Control Board
12	Control, Range (White)
12	Control, Range (Biscuit)
13	SCREW
15	Switch, Rocker (Biscuit)
15	3149360 Whirlpool Light Switch
15	WP4314961 Whirlpool Lite Switch
19	WP8273564 Whirlpool Clip
