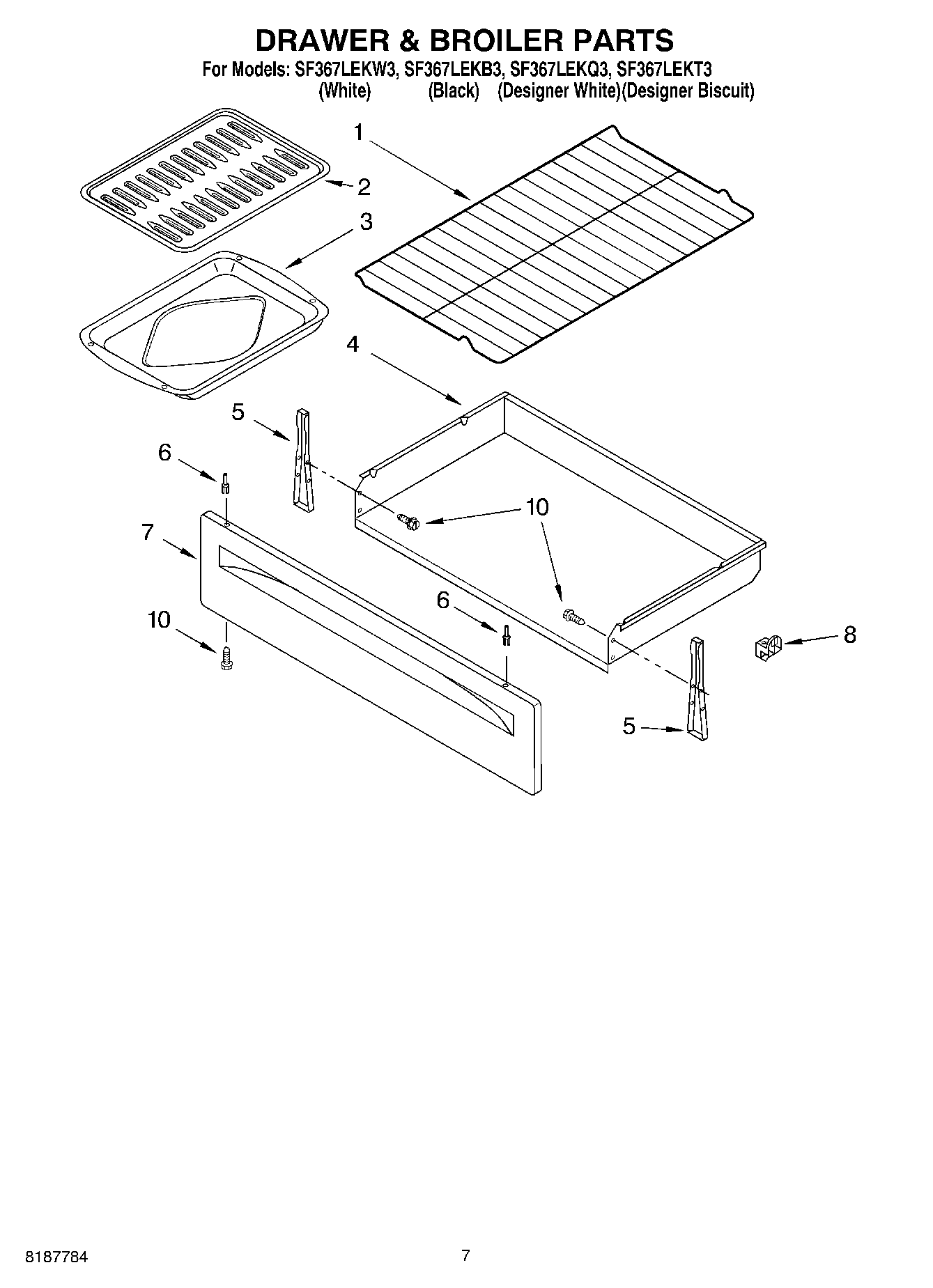

SF367LEKW3 05 – DRAWER & BROILER PARTS

SF367LEKW3 05 – DRAWER & BROILER PARTS

Written by

in

SF367LEKW3 05 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5BRKT-MNTG
63196815 Whirlpool Oven Rivet
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7W11230490 Whirlpool Drawer Panel
7W11230486 Whirlpool Drawer Panel
7PANEL, DRAWER FRONT (BISCUIT)
8WP8053334 Whirlpool Drawer Glide
10WP3400832 Whirlpool Screw
