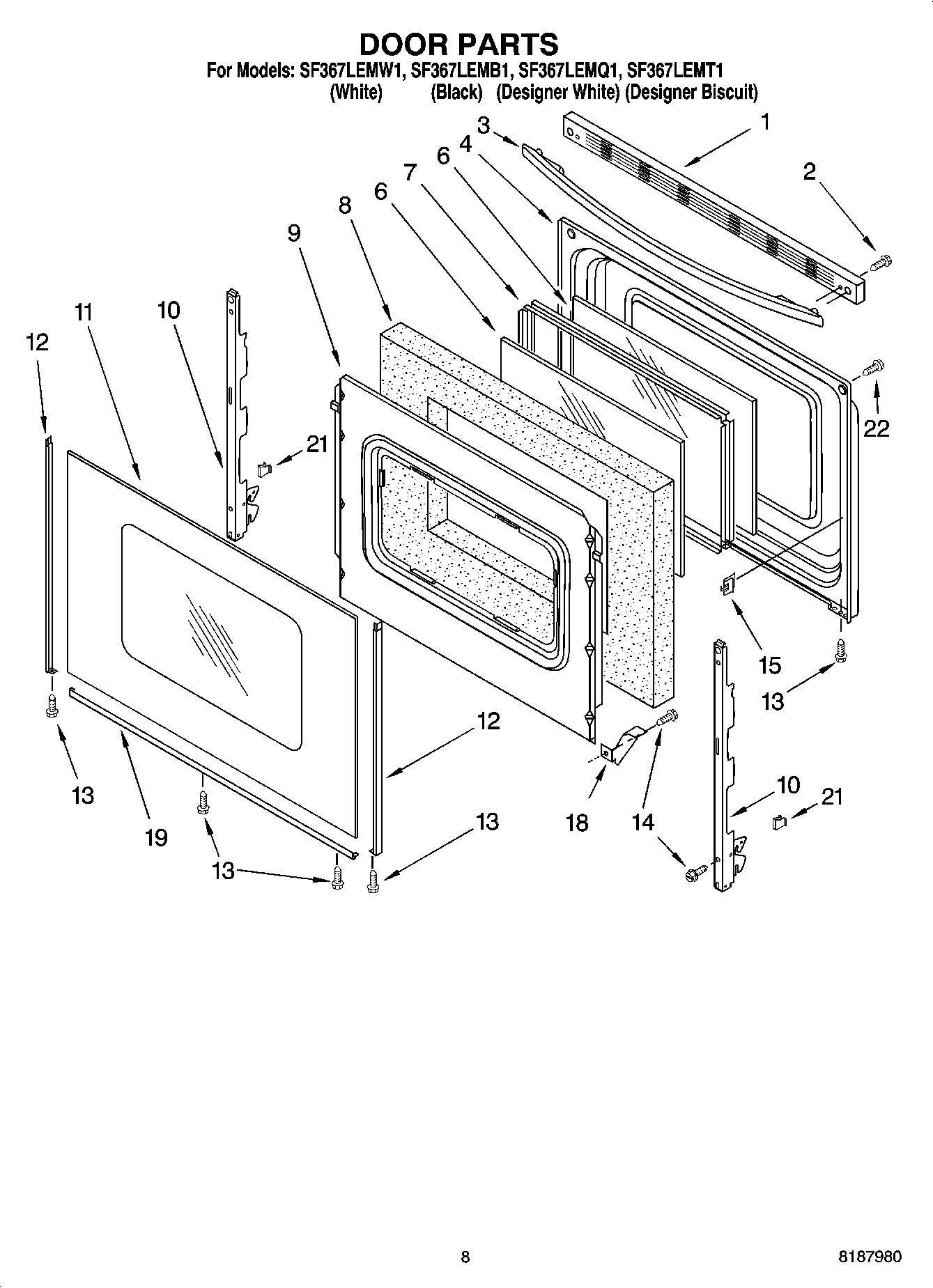

SF367LEMB1 06 – DOOR PARTS, MISCELLANEOUS PARTS

SF367LEMB1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

SF367LEMB1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI163116A
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	WPL 8316781
	3196896 Whirlpool Clip
	WPL ARI163115A
	WPL ARI163114A
	WPL ARI163113A
	WPL ARI163112A
	WPL ARI163111A
	WPL ARI163110A
	WPL 8524207
	WPL 8523424
	TIE,WIRE
	8523599 Whirlpool Oven Wire Harness
	WPL ARI163117A
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	350930 Whirlpool White Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	Wire, 25` Roll (Red 14 Ga.)
	WPW10208653 Whirlpool Insulation
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	511873 Whirlpool Refrigerator Paint
	Wire, 25“ Roll (White 14 GA.)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	350942 Whirlpool Spray Paint
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Biscuit)
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WPW10118455 Whirlpool Door Glass Assembly
11	WP8053834 Whirlpool Door Glass
11	Glass, Outer Door (Biscuit)
12	WP8523166 Whirlpool Door Trim
12	WP8523173 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
13	W10491985 Whirlpool Screw
14	WP3196175 Whirlpool Screw
15	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP8523178 Whirlpool Door Trim
19	WP8523177 Whirlpool Door Trim Assembly
19	WP8523175 Whirlpool Door Trim Assembly
21	WP3196925 Whirlpool Clip Assembly
22	WP179051 Whirlpool Screw
