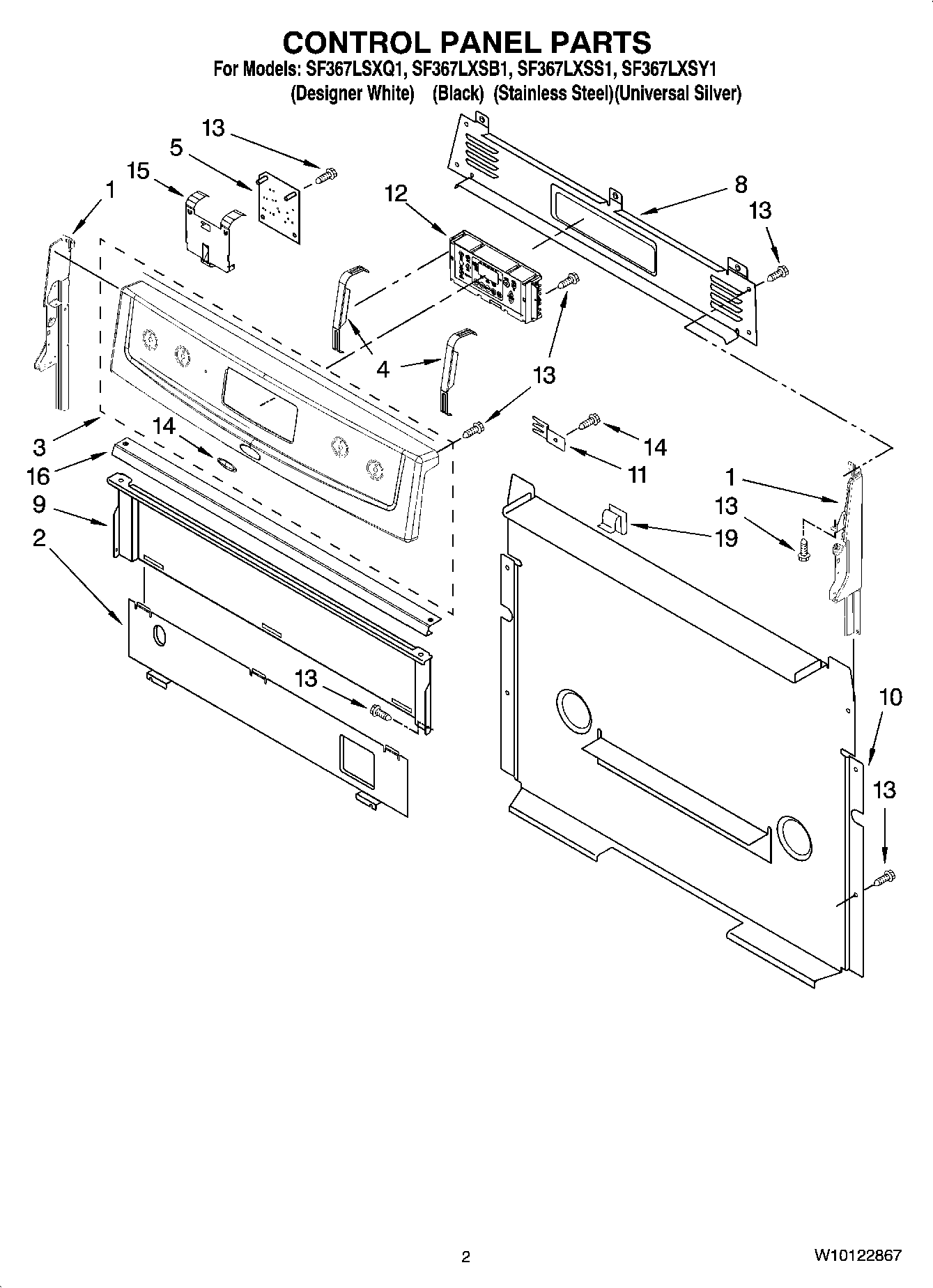

SF367LSXQ1 02 – CONTROL PANEL PARTS

SF367LSXQ1 02 – CONTROL PANEL PARTS

Written by

in

SF367LSXQ1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
28053505 Whirlpool Oven Shield
3Panel, Backguard (Black)
3Panel, Backguard (White)
3Panel, Backguard (Silver for Stnlss)
4BRACKET, MOUNTING EOC
5WPW10331686 Whirlpool Oven Spark Module
8Cover, Upper
9Shield, Heat
10Cover, Lower
118523412 Whirlpool Mounting Bracket
12WPW10108190 Whirlpool Electronic Control Board
13SCREW
14Nameplate
15Brkt-Mntg, DSI
16Bracket, Console
19WP8273564 Whirlpool Clip
