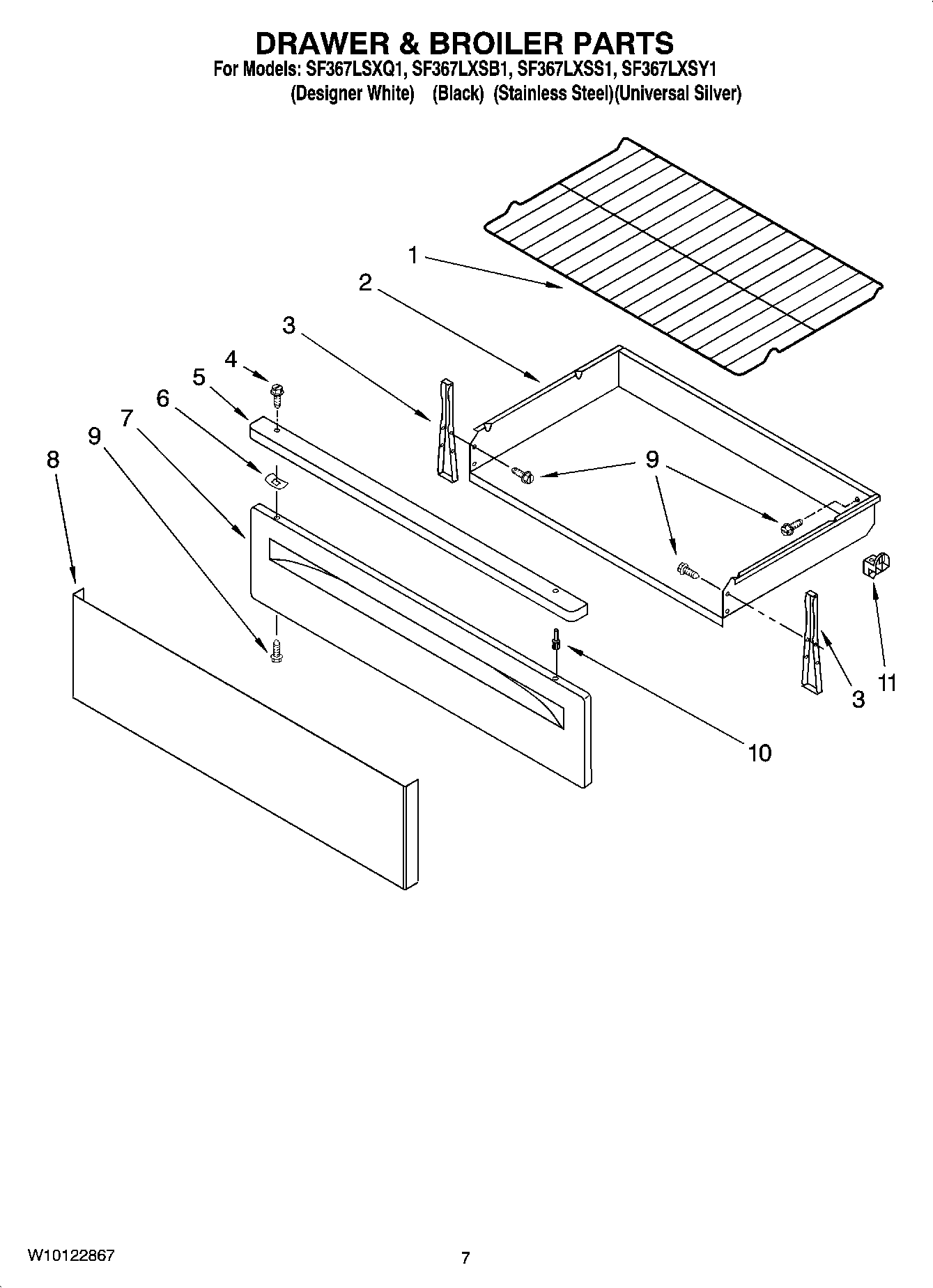

SF367LSXQ1 05 – DRAWER & BROILER PARTS

SF367LSXQ1 05 – DRAWER & BROILER PARTS

Written by

in

SF367LSXQ1 05 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3BRKT-MNTG
4WPW10031790 Whirlpool Screw
5Handle (Black)
5Handle, Drawer
6WP9781235 Whirlpool Clip
7W11230486 Whirlpool Drawer Panel
7W11230490 Whirlpool Drawer Panel
8Panel, Stnls & US
9WP3400832 Whirlpool Screw
10WP3196814 Whirlpool Rivet
10WP3196813 Whirlpool Rivet
11WP8053334 Whirlpool Drawer Glide
