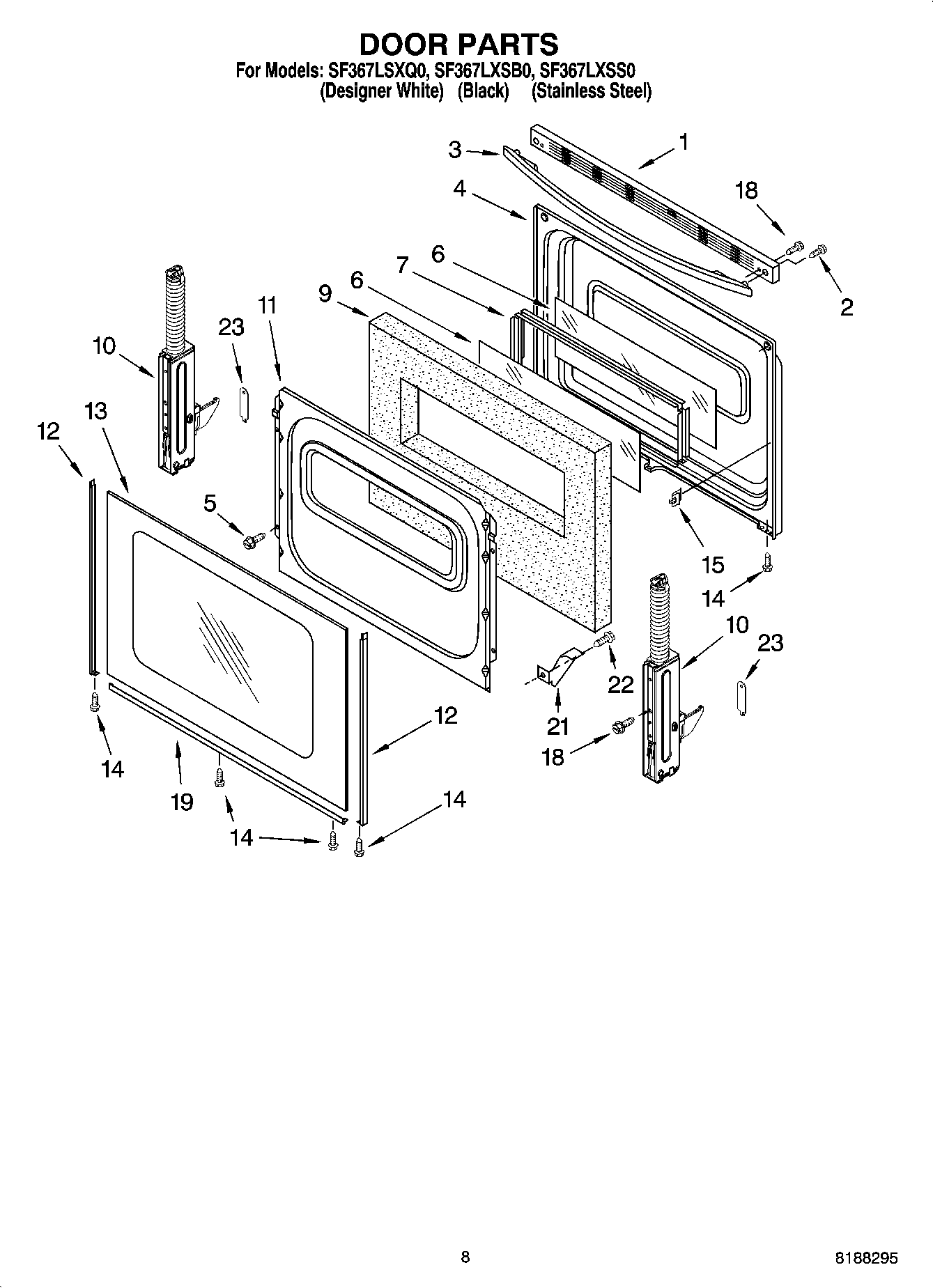

SF367LXSS0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

SF367LXSS0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

SF367LXSS0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI130213A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WP3196174 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
WPL ARI130214A
WPL ARI130212A
WPL ARI130211A
WPL ARI130210A
WPL ARI130209A
WPL ARI130208A
WPL 9762433
WPL 8524207
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
W10045060 Whirlpool Grounding Wire
3196896 Whirlpool Clip
3196696 Whirlpool Clip
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
4396923 Whirlpool Broil Pan Set Gray Porcelain
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
W11447673 Whirlpool Range Tip Anchor
511873 Whirlpool Refrigerator Paint
Wire, 25` Roll (Red 14 Ga.)
350942 Whirlpool Spray Paint
16515 Whirlpool Clip
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
3400964 Whirlpool Oven Clip
FOIL, ALUMINUM OVEN (18“ X 25 )
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
1Trim, Top (White)
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (Black)
3Handle, Door (White)
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
9WPW10278991 Whirlpool Insulation
10W10347464 Whirlpool Door Hinge
10W10347466 Whirlpool Door Hinge
11W11539580 Whirlpool Retainer
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
13WPW10118454 Whirlpool Door Outer Glass White
13WPW10118455 Whirlpool Door Glass Assembly
13Glass, Outer (Stainless Steel)
14W10491985 Whirlpool Screw
15Clip, Glass (4)
18W10777162 Whirlpool Screw
19WP8523180 Whirlpool Door Trim Assembly
19WP8523175 Whirlpool Door Trim Assembly
19WP8523177 Whirlpool Door Trim Assembly
21WP3196794 Whirlpool Glass Bracket
22WP3196175 Whirlpool Screw
239761517 Whirlpool Oven Clip Assembly
