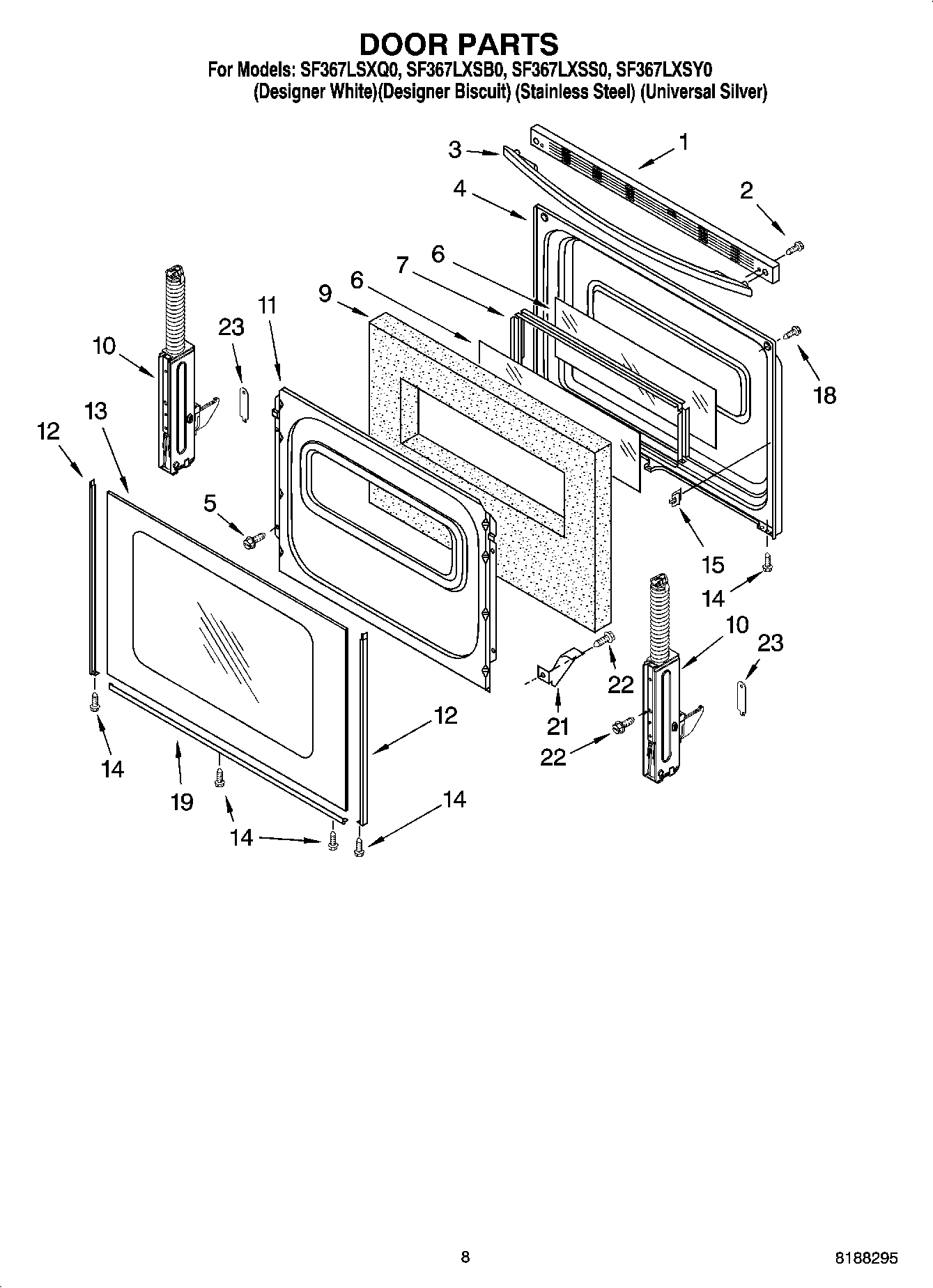

SF367LXSY0 06 – DOOR PARTS, OPTIONAL PARTS

SF367LXSY0 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

SF367LXSY0 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	3196896 Whirlpool Clip
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	WPL 9762433
	Wire (12 Ga. 150 c Black)
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	WPL 9761165
	WPL ARI130228A
	WPL ARI130229A
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	8523599 Whirlpool Oven Wire Harness
	TIE,WIRE
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	WPL 8524207
	Wire (14 Ga. 200 c Brown)
	Wire (14 Ga. 150 c Yellow)
	WPL ARI130230A
	WPL ARI130231A
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WPL ARI130235A
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	WPW10208653 Whirlpool Insulation
	WPL ARI130232A
	W11447673 Whirlpool Range Tip Anchor
	WPL ARI130233A
	814381 Whirlpool Pin
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	WPL ARI130234A
	FOIL, ALUMINUM OVEN (18“ X 25 )
1	WP9762391 Whirlpool Door Trim Assembly
1	Trim, Top (White)
1	Trim, Top (Stainless Steel)
2	WP3196164 Whirlpool Screw
3	Handle, Door (White)
3	Handle, Door (Black)
3	Handle, Door (Universal Silver)
4	WP9761344 Whirlpool Door Liner
5	Screw
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
9	WPW10278991 Whirlpool Insulation
10	W10347466 Whirlpool Door Hinge
10	W10347464 Whirlpool Door Hinge
11	W11539580 Whirlpool Retainer
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP2179234 Whirlpool Refrigerator Pan Trim
12	W10761014 Whirlpool Right Door Trim
13	WPW10330077 Whirlpool Door Glass
13	Glass, Outer (Stainless Steel)
13	WPW10118454 Whirlpool Door Outer Glass White
13	WPW10118455 Whirlpool Door Glass Assembly
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP8523180 Whirlpool Door Trim Assembly
19	WP8523177 Whirlpool Door Trim Assembly
19	WP8523175 Whirlpool Door Trim Assembly
19	Trim, Bottom (Universal Silver)
21	WP3196794 Whirlpool Glass Bracket
22	WP3196175 Whirlpool Screw
23	9761517 Whirlpool Oven Clip Assembly
