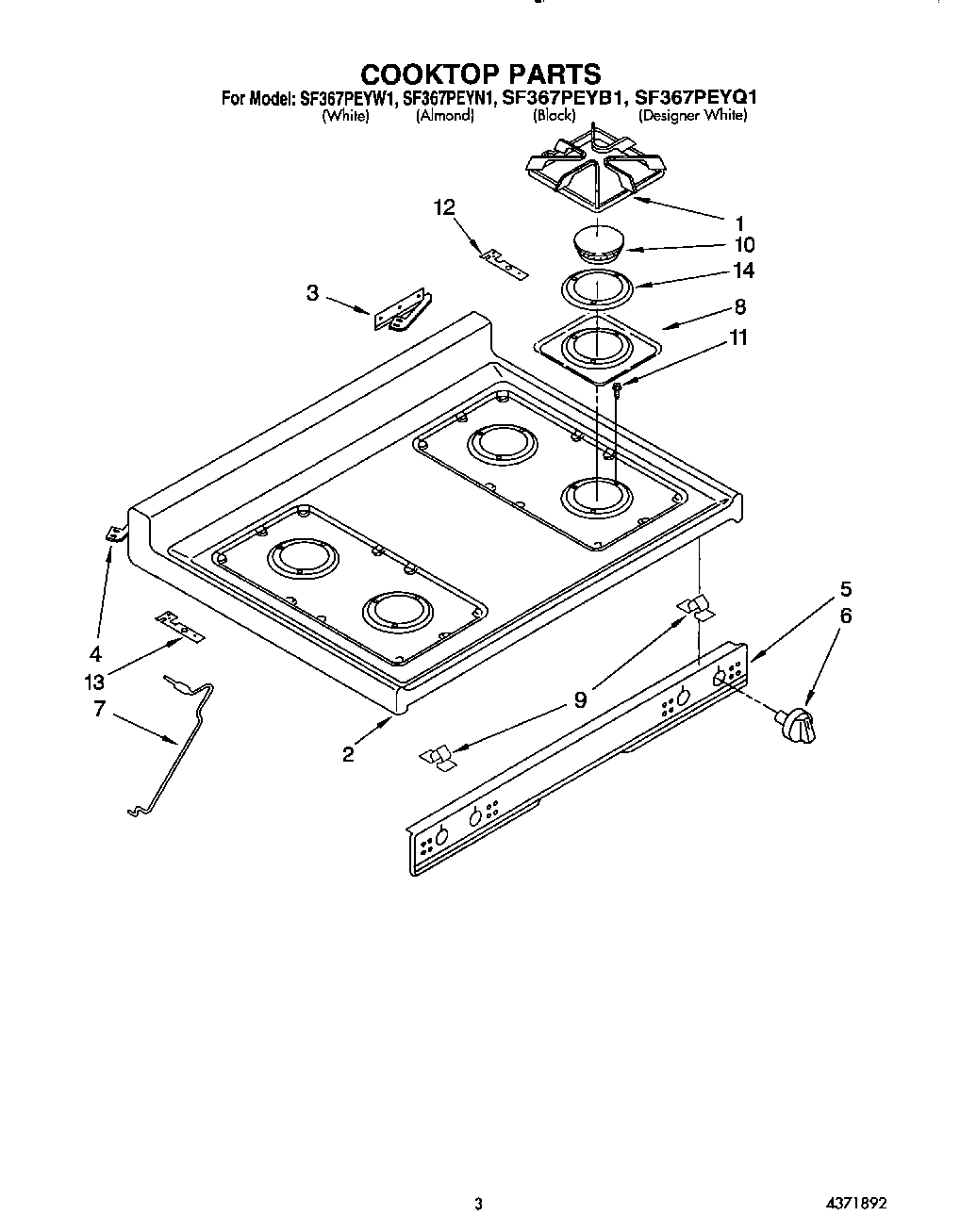

SF367PEYB1 03 – COOKTOP

Products

PositionProduct
1Grate (4)
1Grate (4)
2Top, Main (Black)
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Right Side)
4Bracket, Hinge (Left Side)
5Panel, Manifold
5Panel, Manifold
6Knob, Control (4)
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
8Pan, Burner (4)
9Clip, Top Mtg.
10Cap, Burner
10Cap, Burner (4)
11Screw, Burner Mtg.
12Bracket, Mounting (R.H.)
13Bracket, Mounting (L.H.)
14Ring, Trim
