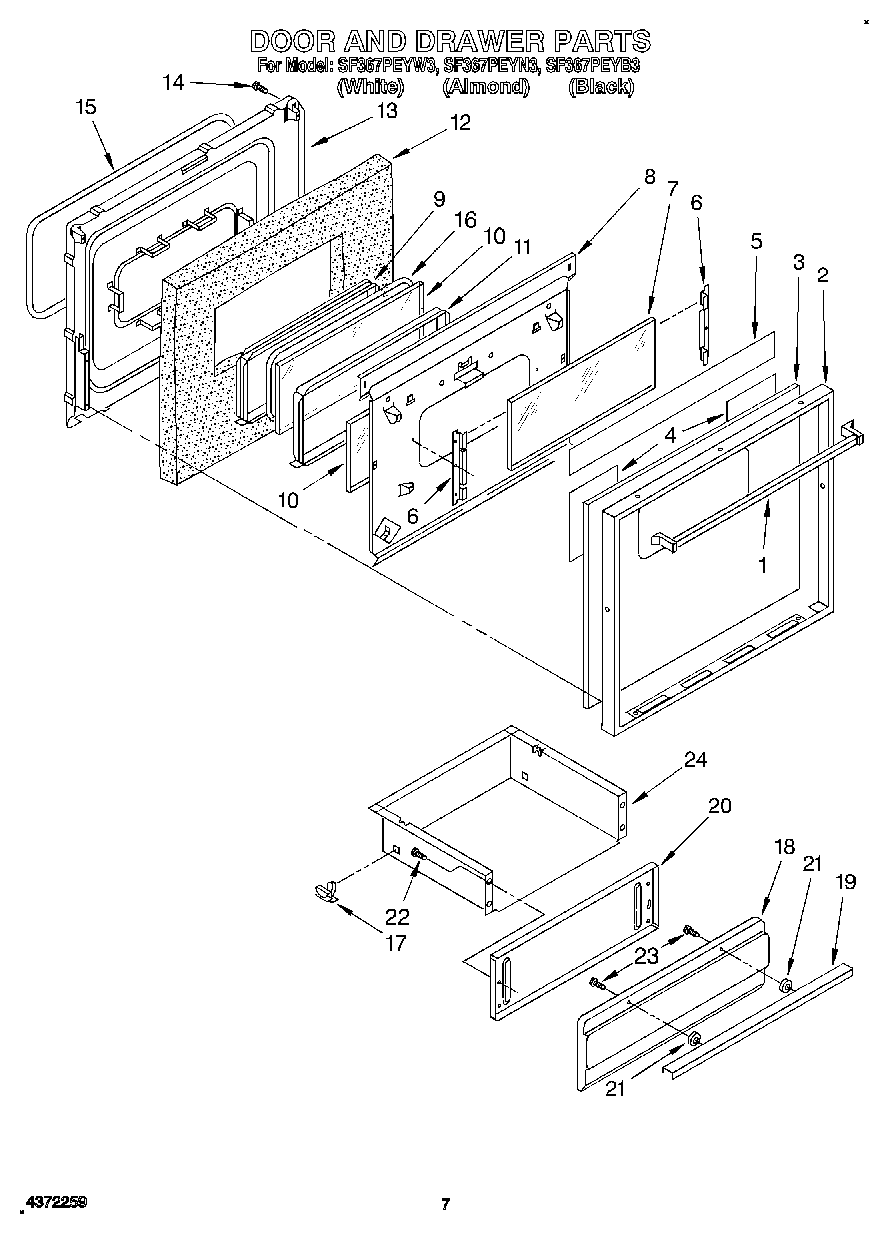

SF367PEYB3 07 – DOOR AND DRAWER

Products

PositionProduct
1Handle, Door
2Trim, Door
3Glass, Door
4Foil, Alum. (2)
5Foil, Alum.
6Bracket, Glass
7Glass, Oven Door
8Shield, Heat
9Collar, Glass
10Glass, Heat Barrier (2)
11Spacer, Glass
12Insulation, Door
13Liner, Oven Door
14Screw, Handle
15Seal, Oven Door
16Seal, Rope
17Guide, Drawer
18Panel, Drawer
19Handle, Utility Drawer
20Shield, Panel
21Spacer, Handle
22Screw, Panel (4)
23Screw, Handle (2)
24Drawer, Utility
