SF367PEYN0 03 – COOKTOP

SF367PEYN0 03 – COOKTOP

Written by

in

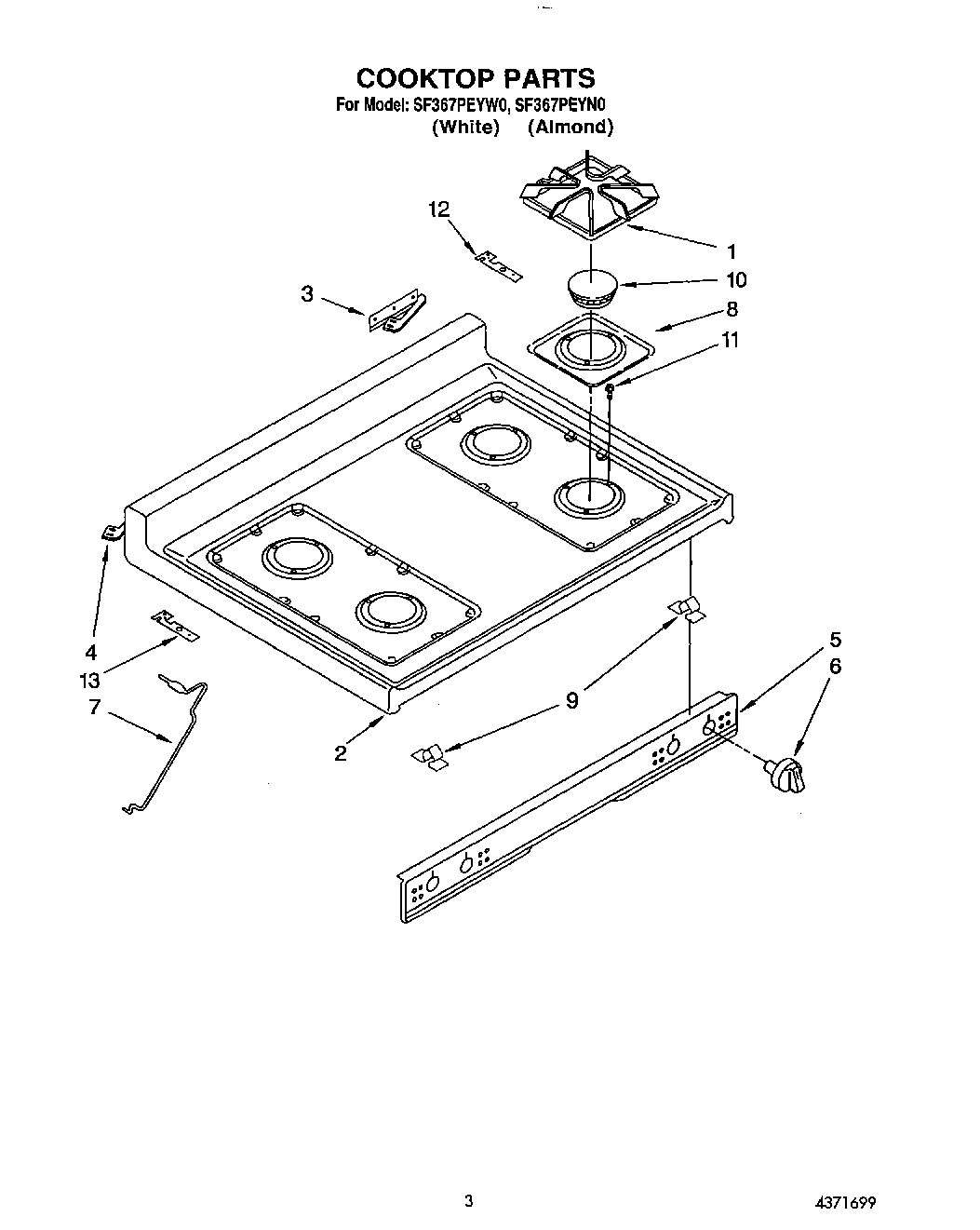

SF367PEYN0 03 – COOKTOP

Products

PositionProduct
1Grate (4)
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Right Side)
4Bracket, Hinge (Left Side)
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
9Clip, Top Mtg.
10Cap, Burner (4)
11Screw, Burner Mtg.
12Bracket, Mounting (R.H.)
13Bracket, Mounting (L.H.)
