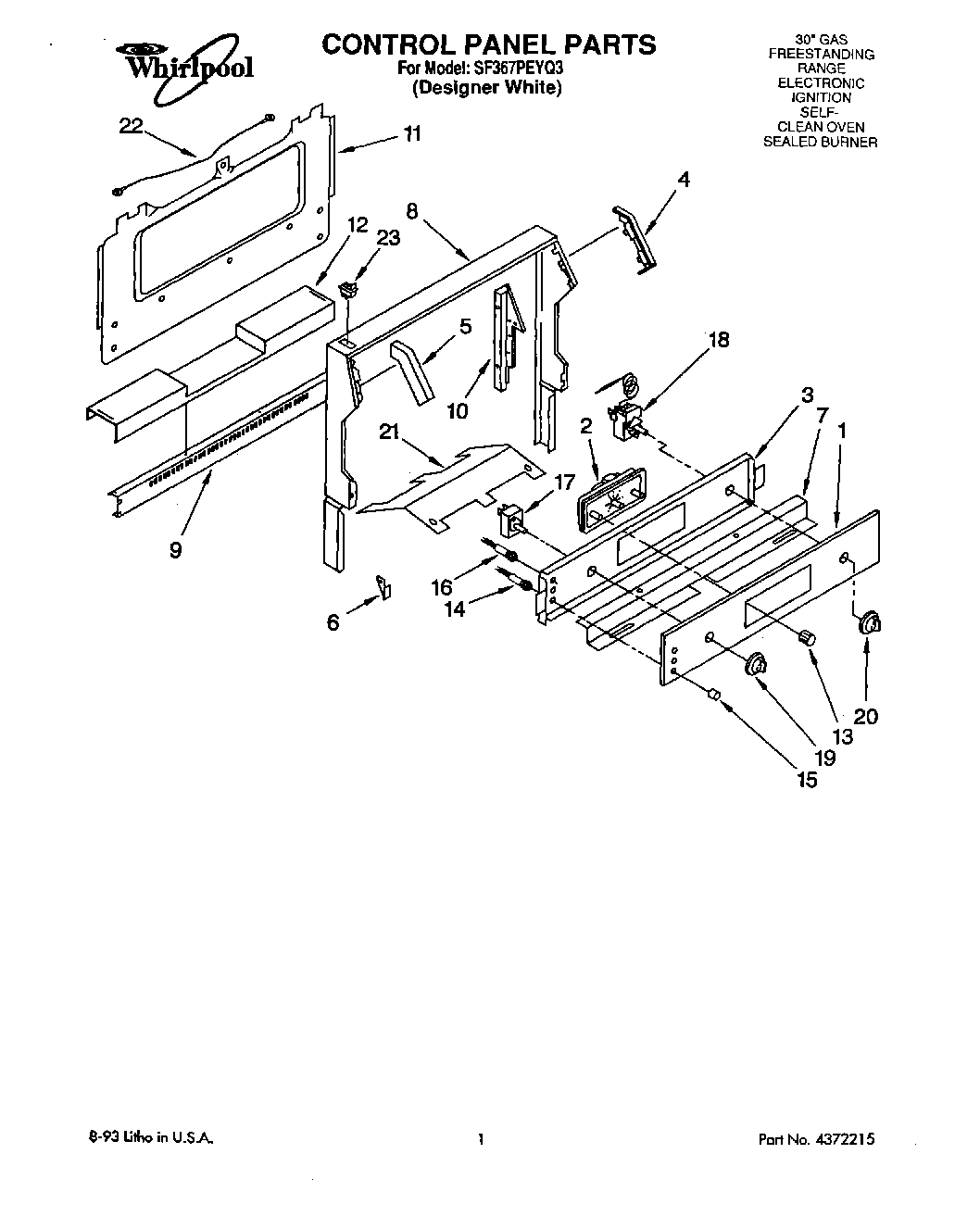

SF367PEYQ3 01 – CONTROL PANEL

Products

PositionProduct
1Panel, Control
2Clock, Timer
3Bracket, Timer
4Cap, End (R.H.)
5Cap, End (L.H.)
6Cap, Filler
7Retainer, Timer
8Trim, Wrapper
9Trim, Vent
10Support, Control Panel (R.H.)
10Support, Control Panel (L.H.)
11Shield, Rear Wall
12Deflector, Flue
13Knob, Clock
14Light, Indicator (2)
15Lens, Ind Light (3)
16Light, Indicator
17Switch, Selector
18Thermostat
19Knob, Selector
20Knob, Thermostat
21Shield, Inner Bkgd
22Cable, Anti-Tip
23WP4314961 Whirlpool Lite Switch
