SF367PEYQ4 02 – COOKTOP

SF367PEYQ4 02 – COOKTOP

Written by

in

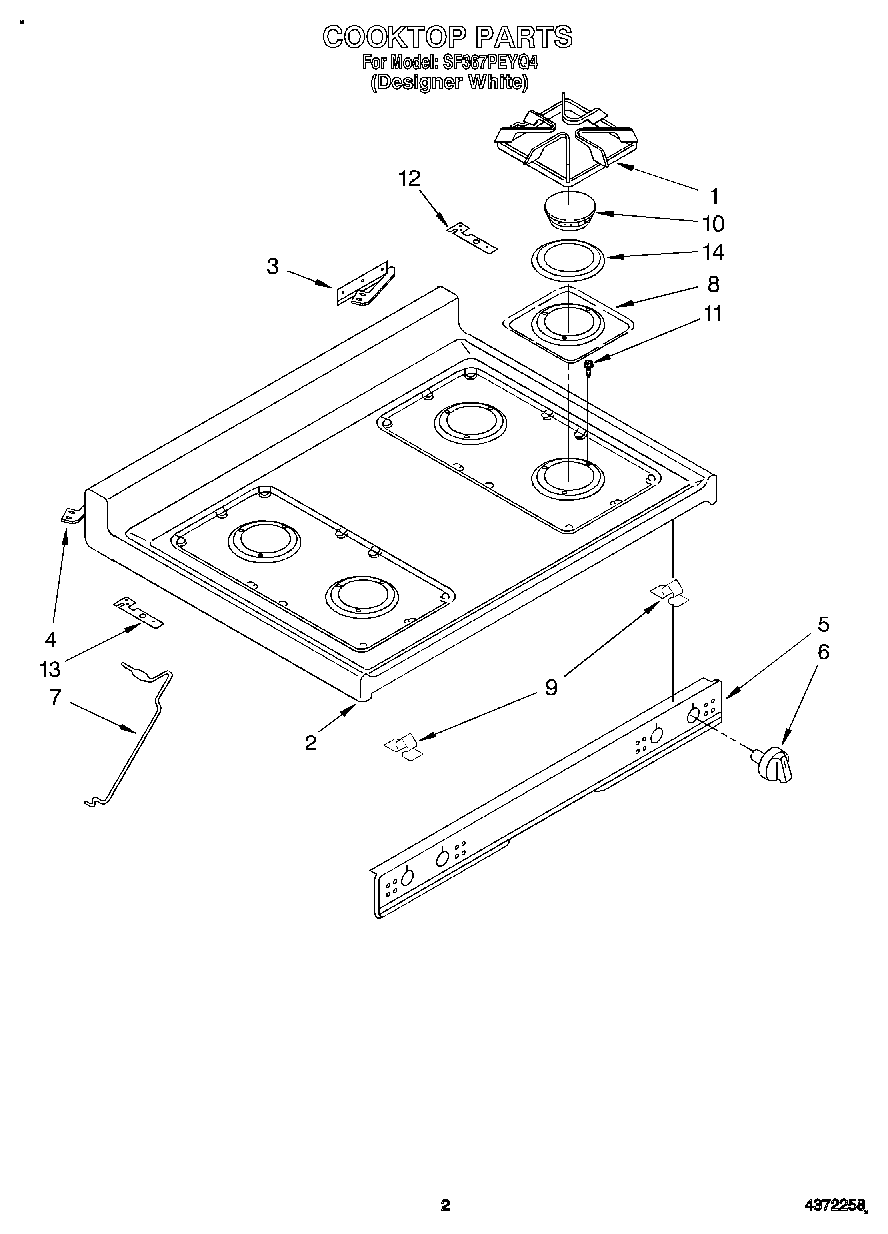

SF367PEYQ4 02 – COOKTOP

Products

Position	Product
1	Grate (4)
2	Top, Main (White)
3	Bracket, Hinge (Right Side)
4	Bracket, Hinge (Left Side)
5	Panel, Manifold
6	Knob, Control (4)
7	Rod, Support Top
8	Pan, Burner (4)
9	Clip, Top Mtg.
10	Cap, Burner (4)
11	Screw, Burner Mtg.
12	Bracket, Mounting (R.H.)
13	Bracket, Mounting (L.H.)
14	Ring, Trim (4)
