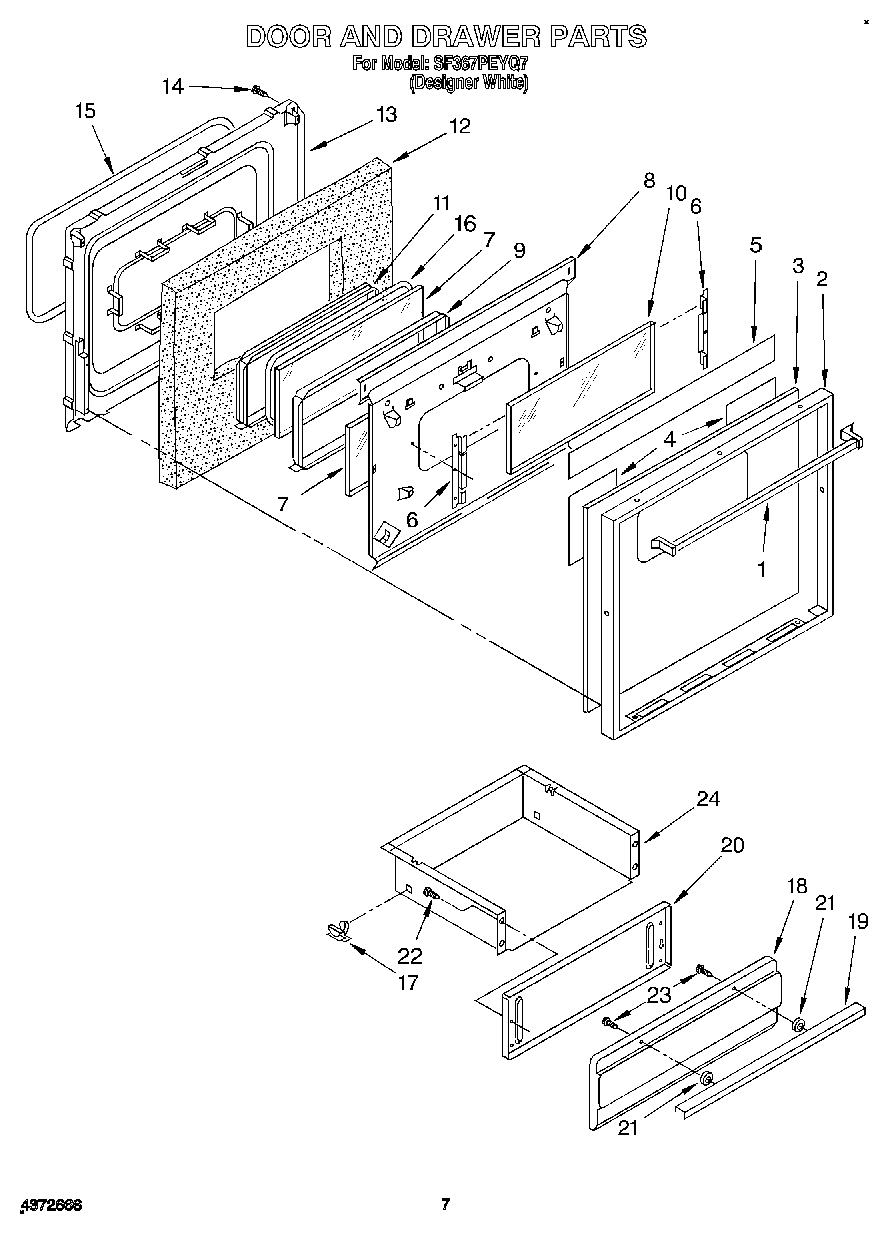

SF367PEYQ7 06 – DOOR AND DRAWER

SF367PEYQ7 06 – DOOR AND DRAWER

Written by

in

SF367PEYQ7 06 – DOOR AND DRAWER

Products

Position	Product
1	Handle, Door
2	Trim, Oven Door
3	Glass, Door
4	Foil, Alum. (2)
5	Foil, Alum.
6	Bracket, Glass
7	Glass, Heat Barrier (2)
8	Shield, Heat
9	Spacer, Glass
10	Glass, Oven Door
11	Collar, Glass
12	Insulation, Door
13	Liner, Oven Door
14	Screw, Handle
15	Seal, Oven Door
16	Seal, Rope
17	Guide, Drawer
18	Panel, Drawer (White)
19	Handle, Broiler Drawer
20	Shield, Panel
21	Spacer, Handle
22	Screw, Panel (4)
23	Screw, Handle (2)
24	Drawer, Utility
