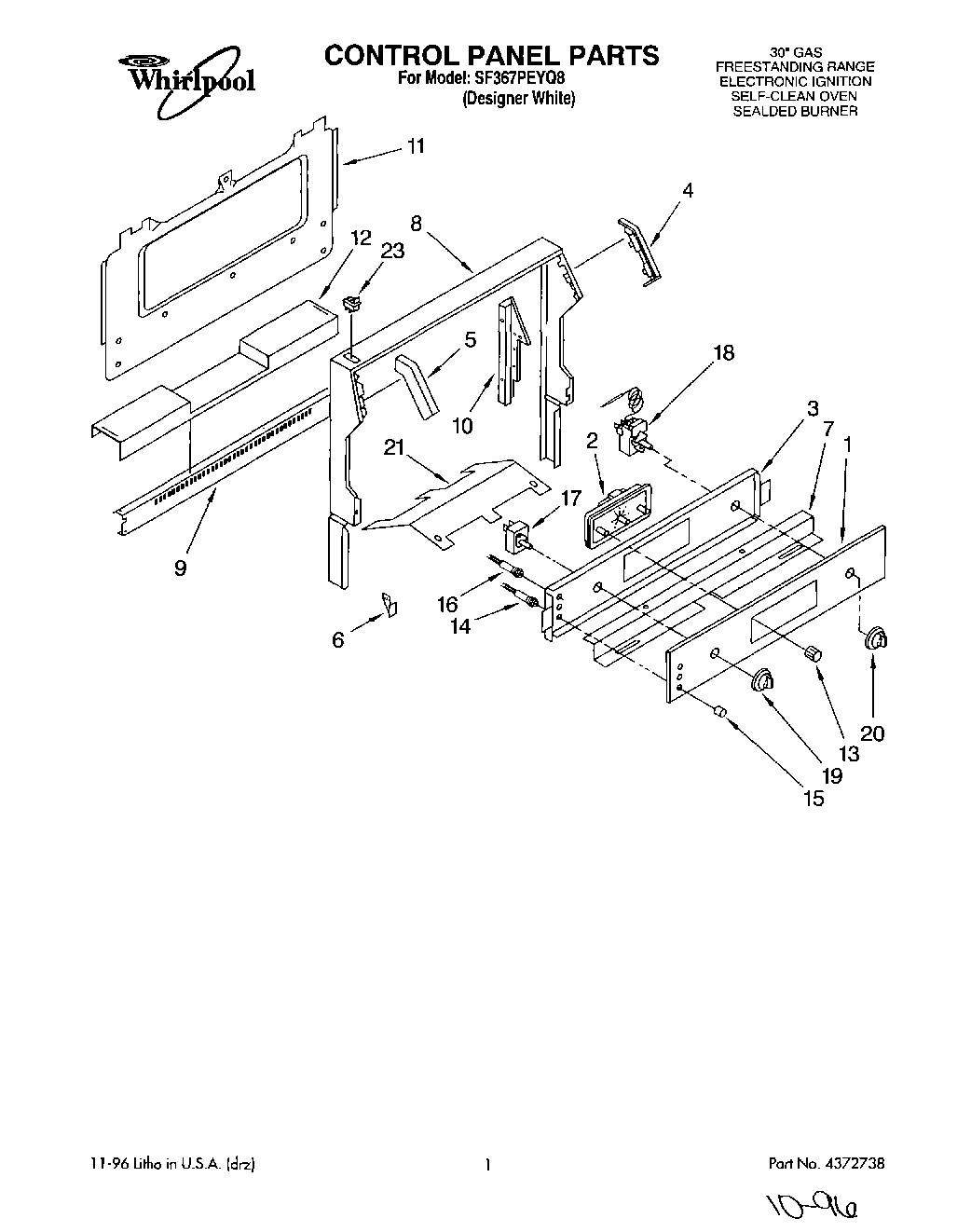

SF367PEYQ8 01 – CONTROL PANEL

Products

PositionProduct
1Panel, Control
2Clock, Timer
3Bracket, Timer
4Cap, End (R.H.)
5Cap, End (L.H.)
7Retainer, Timer
8Cap, Filler
9Trim, Vent
10Support, Backguard (R.H.)
10Support, Backguard (L.H.)
11Shield, Rear Wall
12Deflector, Flue
13Knob, Clock
14Light, Indicator (2)
15Lens, Ind Light (3)
16Light, Indicator
17Switch, Selector
18Thermostat
19Knob, Selector
20Knob, Thermostat
21Shield, Inner Bkgd
23Switch, Rocker
