SF367PEYQ8 02 – COOKTOP

SF367PEYQ8 02 – COOKTOP

Written by

in

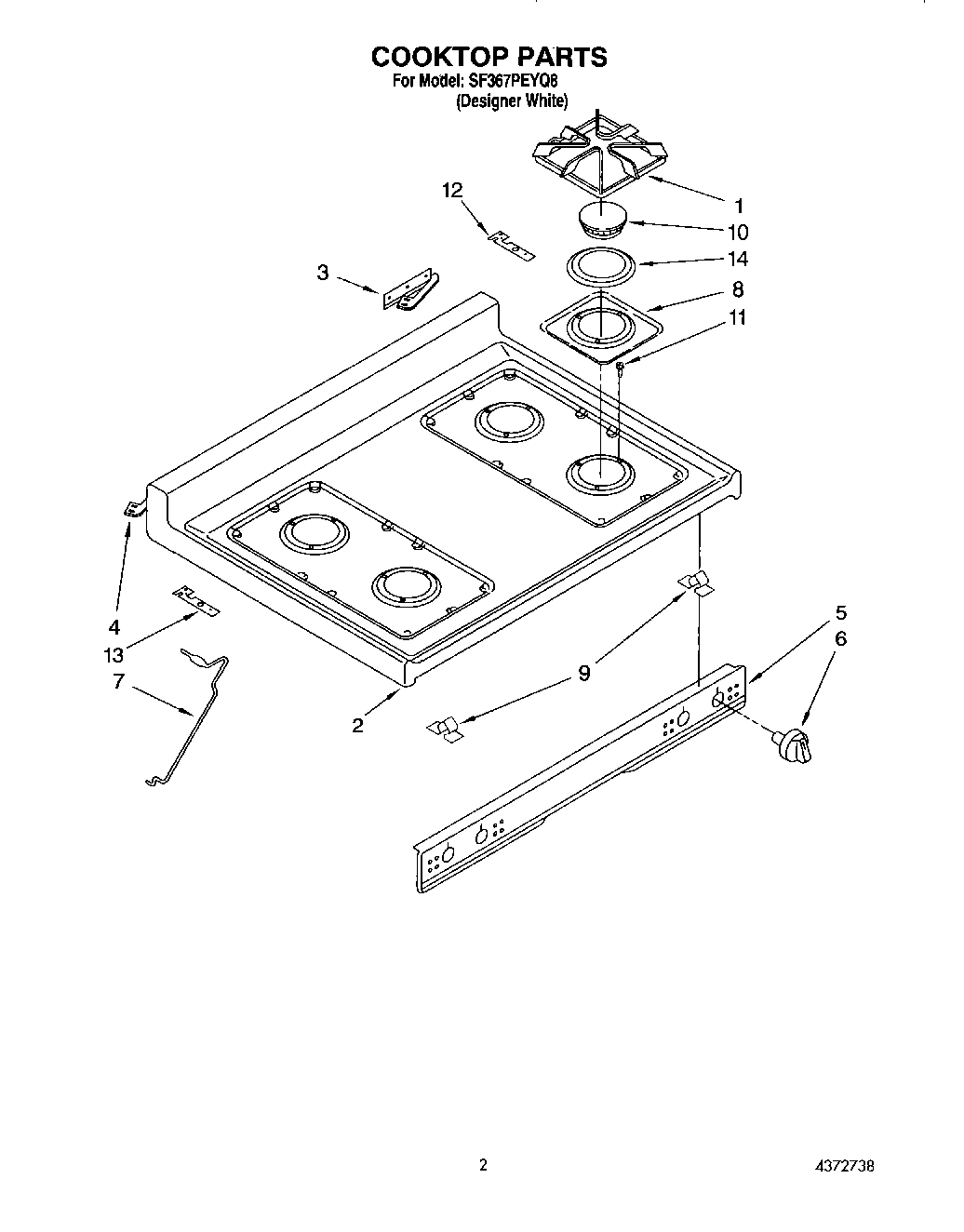

SF367PEYQ8 02 – COOKTOP

Products

PositionProduct
1Grate (4)
2Top, Main (White)
3Bracket, Hinge (Right Side)
4Screw
4Bracket, Hinge (Left Side)
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
9Clip, Top Mtg.
10Cap, Burner (4)
11Screw, Burner Mtg.
12Bracket, Mounting (R.H.)
13Bracket, Mounting (L.H.)
14Ring, Trim (4)
