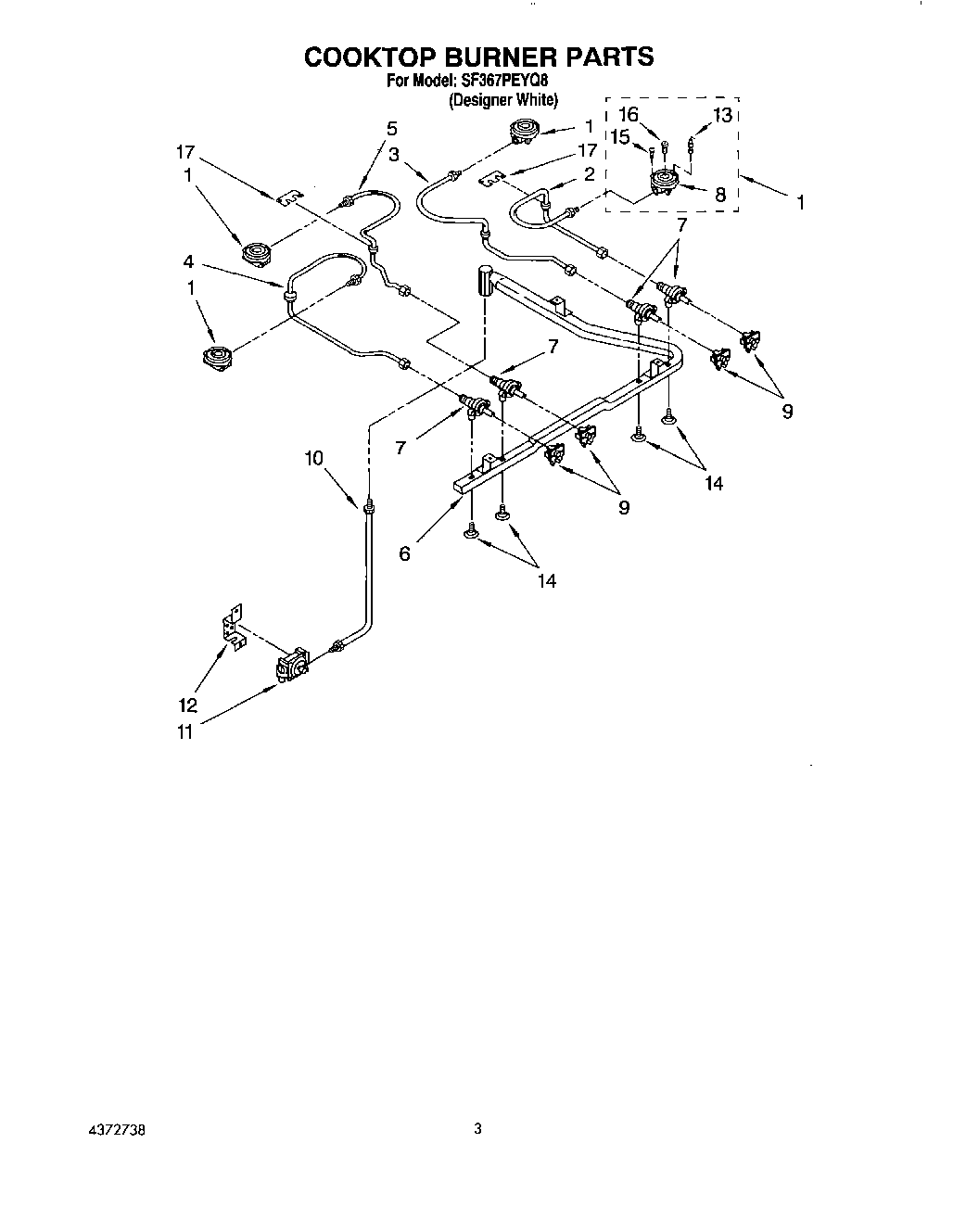

SF367PEYQ8 03 – COOKTOP BURNER

SF367PEYQ8 03 – COOKTOP BURNER

Written by

in

SF367PEYQ8 03 – COOKTOP BURNER

Products

PositionProduct
1Burner, (4)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Pipe, Manifold
7Valve, Top Burner
8Head, Burner
9Switch, Ignitor (4)
10Tubing, Regulator To Manifold Pipe
11Control, Regulator
12Bracket, Regulator
13Bracket & Electrode
14WP3186217 Whirlpool Screw
15Screw, Electrode
16Orifice
17Conversion Kit (Natural Gas To L.P. Gas)
17Plate, Burner
