SF367PEYQ8 06 – DOOR AND DRAWER

SF367PEYQ8 06 – DOOR AND DRAWER

Written by

in

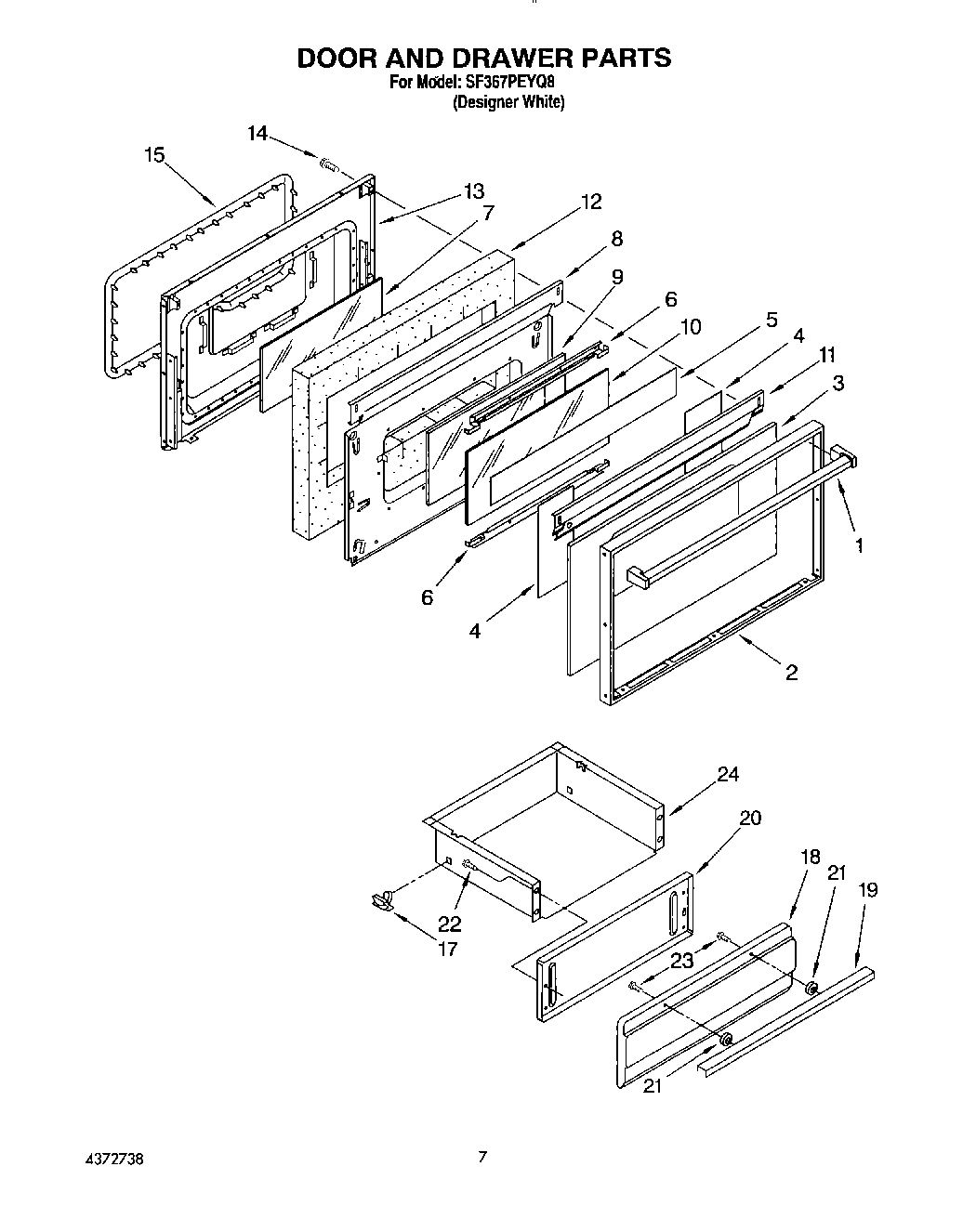

SF367PEYQ8 06 – DOOR AND DRAWER

Products

PositionProduct
1Handle, Door
2Trim, Oven Door
3Glass, Door
4Foil, Alum. (2)
5Foil, Alum.
6Bracket, Glass
7Glass, Heat Barrier (2)
8Shield, Heat
9Glass, Inner
10Glass, Inner
11Liner, Oven Door
12Insulation, Door
13Liner, Oven Door
14Screw, Handle
15Seal, Oven Door
17Guide, Drawer
18Panel, Drawer (White)
19Handle, Broiler Drawer
20Shield, Panel
21Spacer, Handle
22Screw, Panel (4)
23Screw, Handle (2)
24Drawer, Utility
