SF367PEYW0 03 – COOKTOP

Products

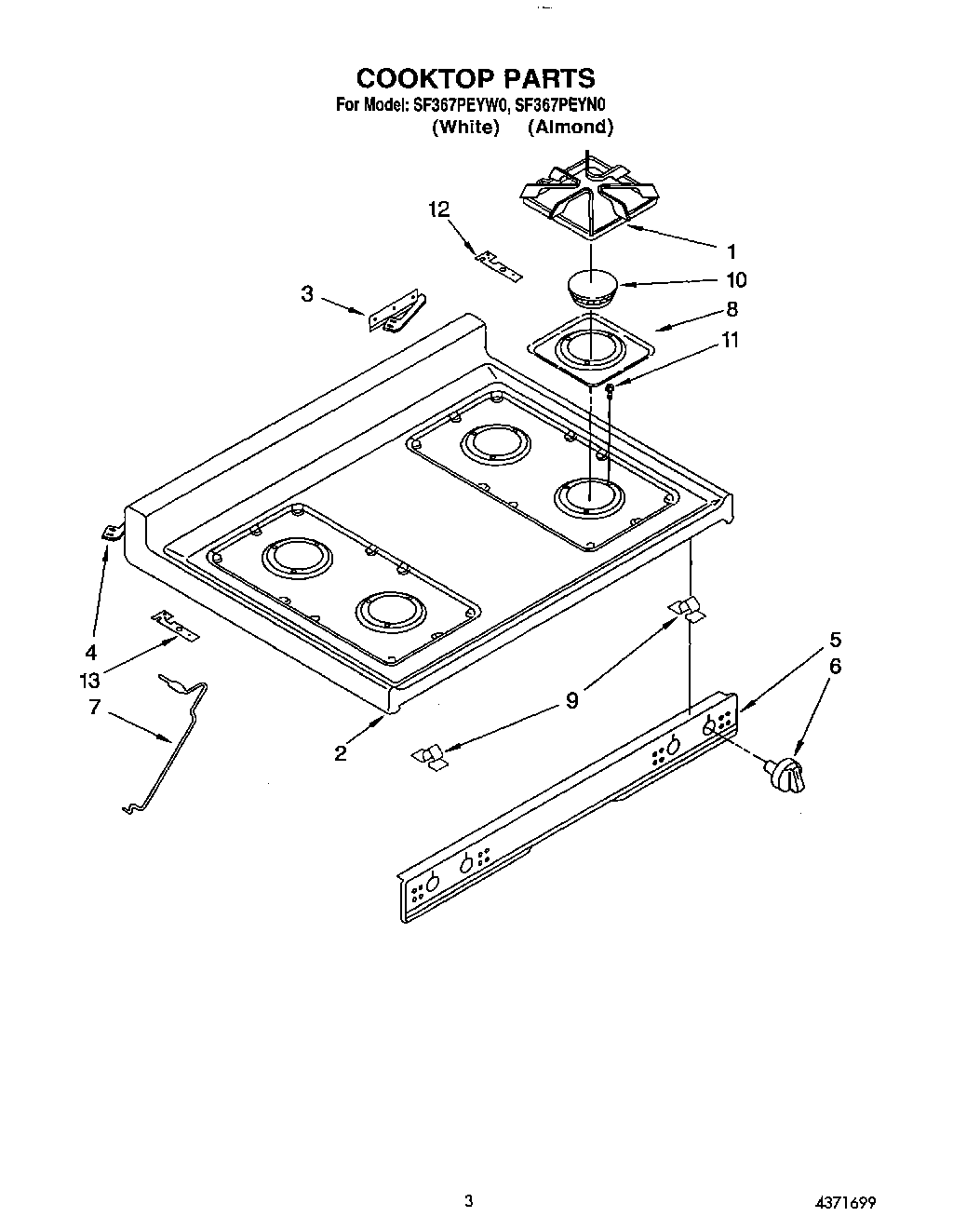

PositionProduct
1Grate (4)
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Right Side)
4Bracket, Hinge (Left Side)
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
9Clip, Top Mtg.
10Cap, Burner (4)
11Screw, Burner Mtg.
12Bracket, Mounting (R.H.)
13Bracket, Mounting (L.H.)
