SF367PEYW6 02 – COOKTOP

Products

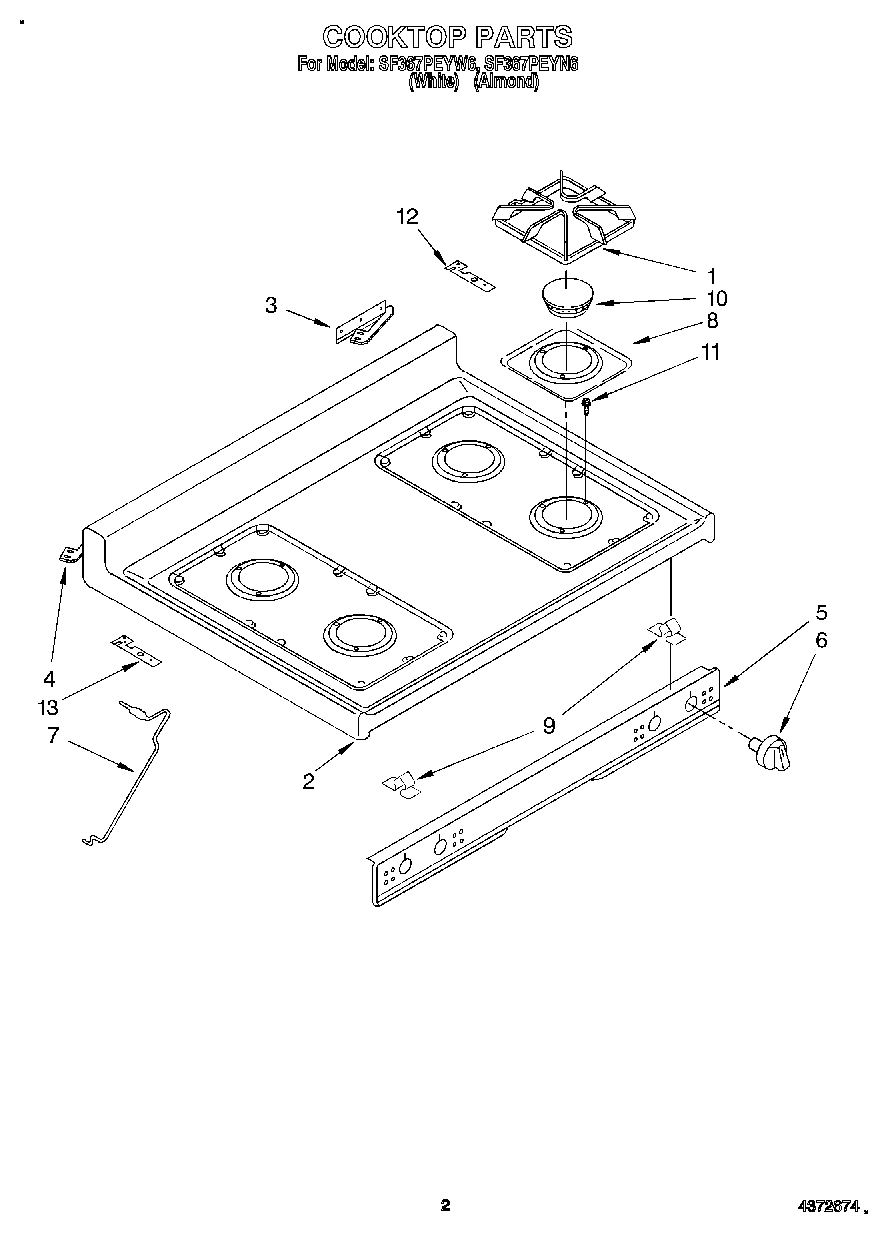

PositionProduct
1Grate (4)
2Top, Main
2Top, Main (Almond)
3Bracket, Hinge (Right Side)
4Bracket, Hinge (Left Side)
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
9Clip, Top Mtg.
10Cap, Burner (4)
11Screw, Burner Mtg.
12Bracket, Mounting (R.H.)
13Bracket, Mounting (L.H.)
