SF367PEYW7 02 – COOKTOP

SF367PEYW7 02 – COOKTOP

Written by

in

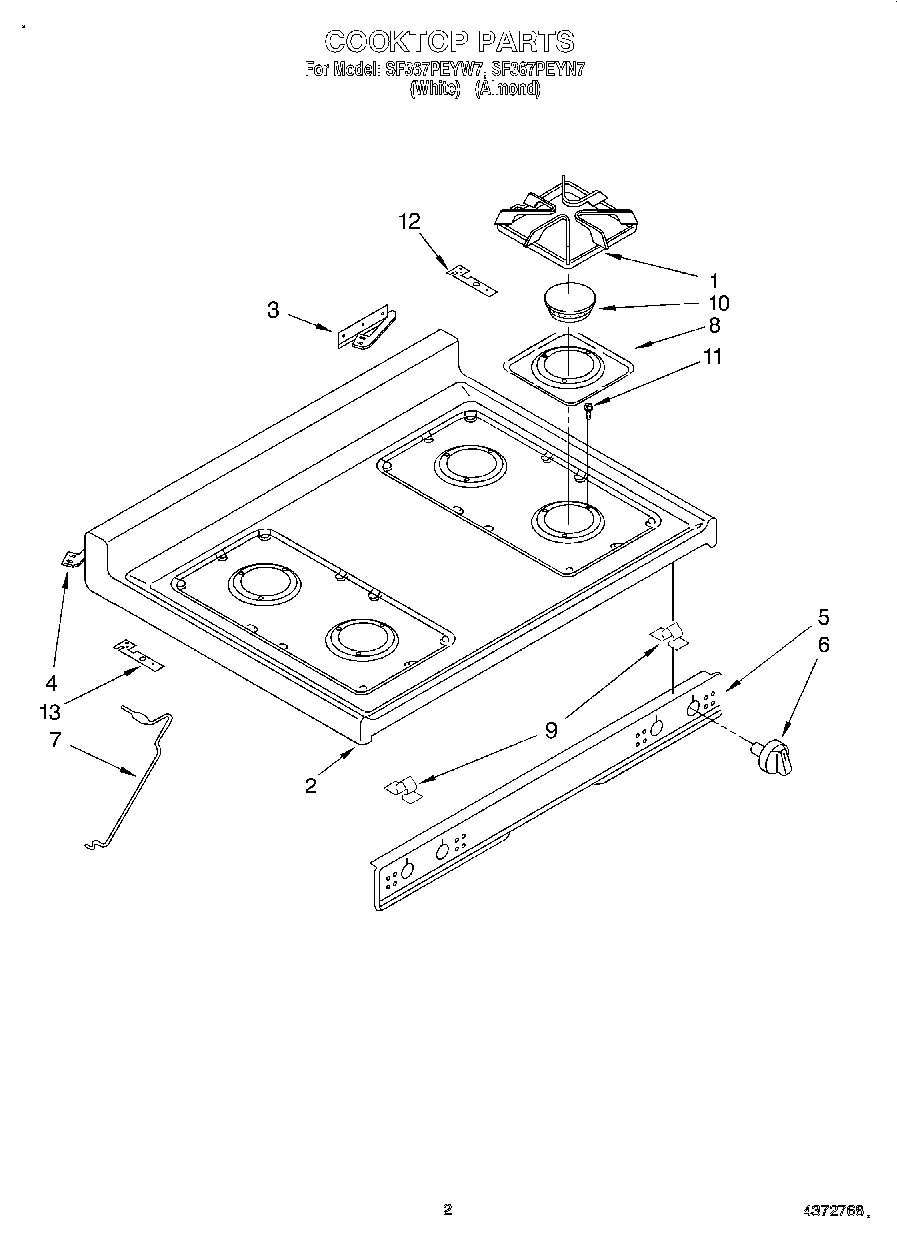

SF367PEYW7 02 – COOKTOP

Products

PositionProduct
1Grate (4)
2Top, Main
2Top, Main (Almond)
3Bracket, Hinge (Right Side)
4Bracket, Hinge (Left Side)
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
9Clip, Top Mtg.
10Cap, Burner (4)
11Screw, Burner Mtg.
12Bracket, Mounting (R.H.)
13Bracket, Mounting (L.H.)
