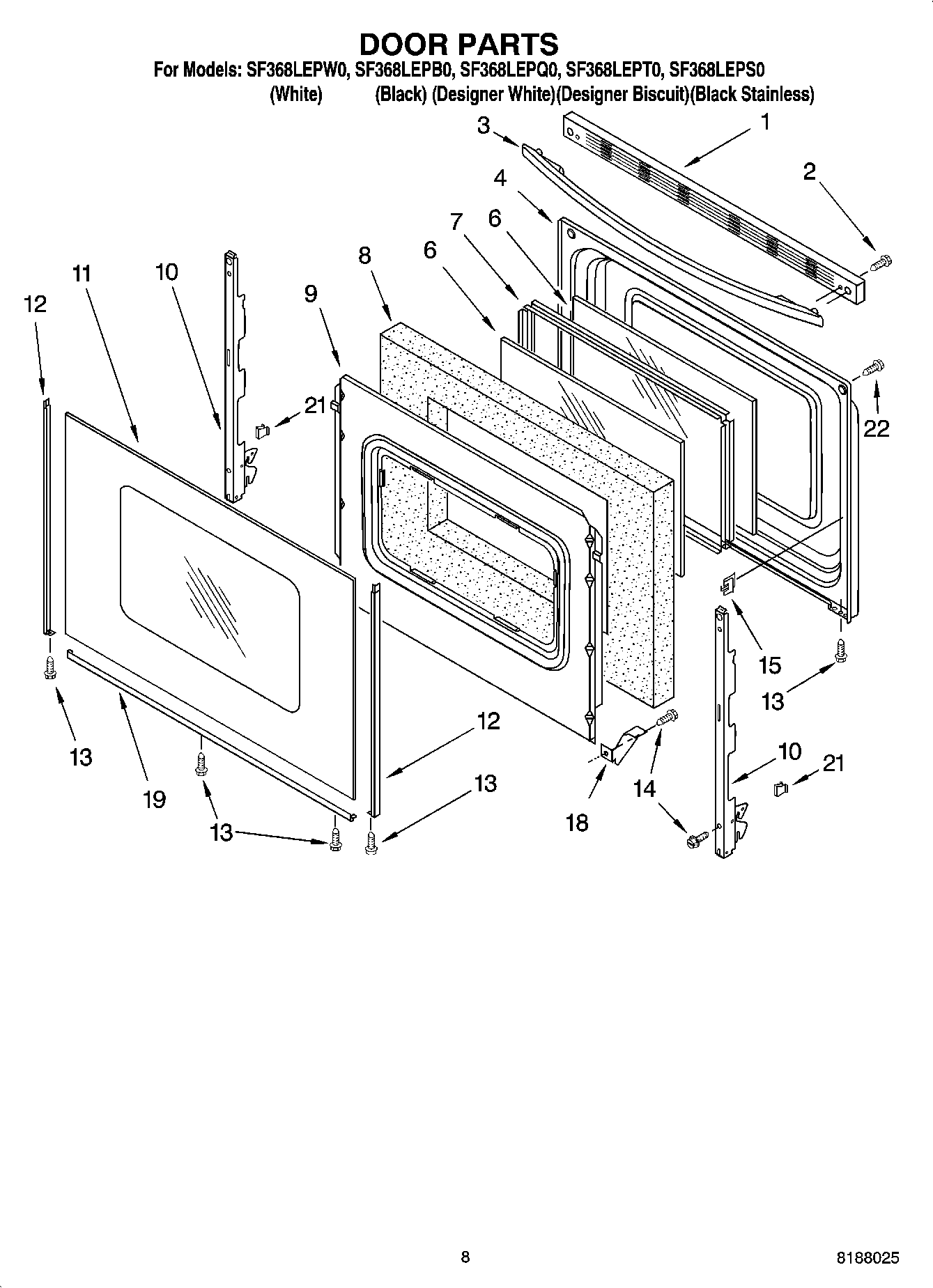

SF368LEPB0 06 – DOOR PARTS, OPTIONAL PARTS

SF368LEPB0 06 – DOOR PARTS, OPTIONAL PARTS

SF368LEPB0 06 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
3196896 Whirlpool Clip
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
8523599 Whirlpool Oven Wire Harness
3400964 Whirlpool Oven Clip
TIE,WIRE
WPL 8523424
WPL 8524207
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WPL ARI163194A
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
16515 Whirlpool Clip
FOIL, ALUMINUM OVEN (18“ X 25 )
350930 Whirlpool White Spray Paint
WPW10208653 Whirlpool Insulation
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
WPL ARI163193A
799344 Whirlpool Refrigerator Paint
WPL ARI163192A
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
WPL ARI163187A
WPL ARI163188A
WPL ARI163189A
WPL ARI163190A
WPL ARI163191A
814381 Whirlpool Pin
72017 Whirlpool Appliance Touch-Up Paint White
1Trim, Top (Black)
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
2Trim, Top (Stainless Model)
3WPW10202216 Whirlpool Door Handle
3WPW10202217 Whirlpool Door Handle
3Handle, Door (Biscuit)
4Liner, Door
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10Hinge, Door (Stainless Model)
10WP8053807 Whirlpool Oven Door Hinge
11Glass, Outer (Biscuit)
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10118454 Whirlpool Door Outer Glass White
11Glass, Outer (Stainless Steel)
12W10761014 Whirlpool Right Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523172 Whirlpool Left Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523173 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP3196175 Whirlpool Screw
15Clip, Glass (4)
18WP3196794 Whirlpool Glass Bracket
19WP8523175 Whirlpool Door Trim Assembly
19WP8523177 Whirlpool Door Trim Assembly
19WP8523178 Whirlpool Door Trim
19WP8523180 Whirlpool Door Trim Assembly
21WP3196925 Whirlpool Clip Assembly
22WP179051 Whirlpool Screw
