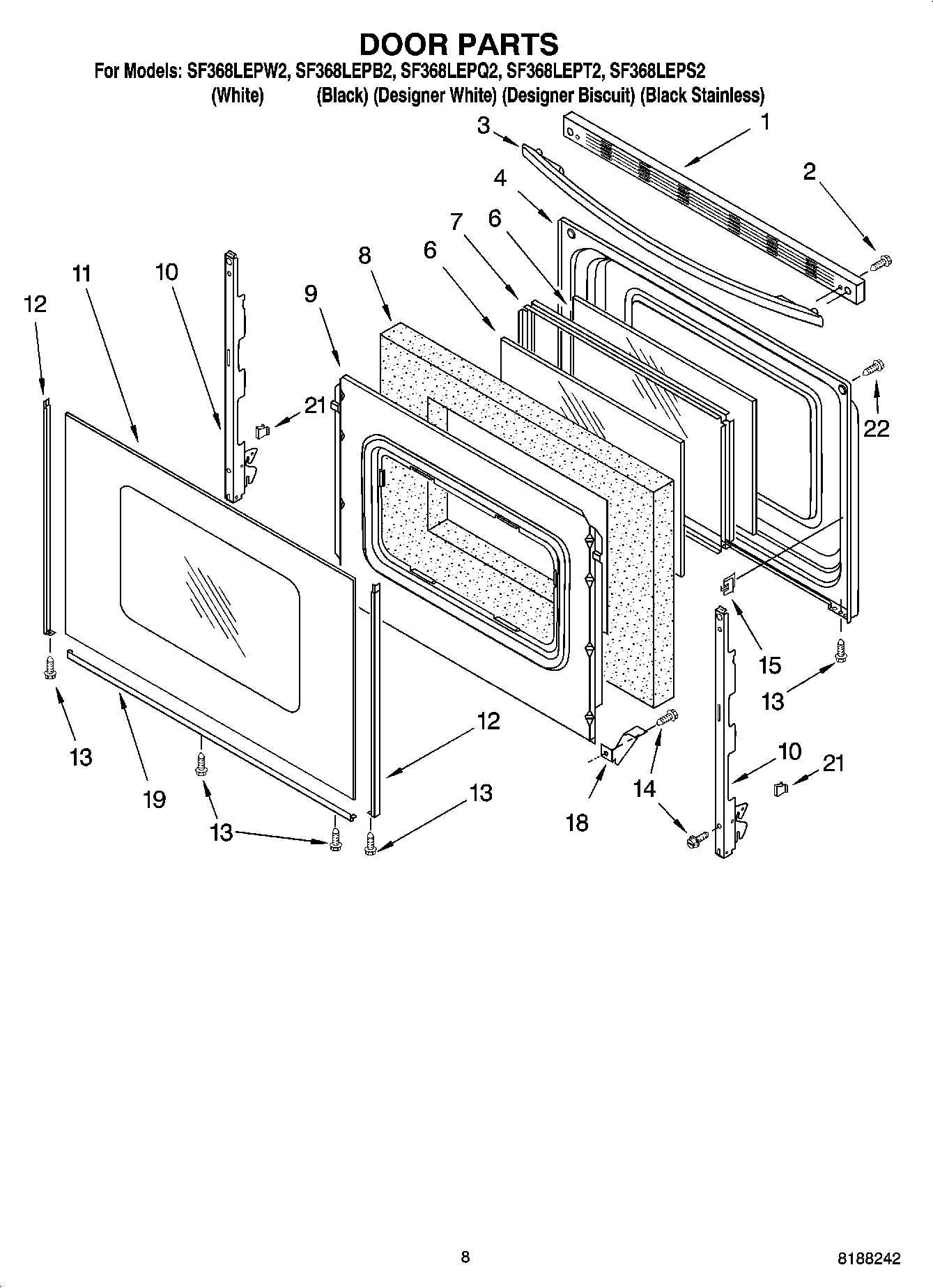

SF368LEPB2 06 – DOOR PARTS, OPTIONAL PARTS

SF368LEPB2 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

SF368LEPB2 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI163214A
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	Grease
	3196896 Whirlpool Clip
	WPL ARI163213A
	WPL ARI163212A
	WPL ARI163211A
	WPL ARI163210A
	WPL ARI163209A
	WPL ARI163208A
	WPL 9758205
	WPL 8524207
	TIE,WIRE
	8523599 Whirlpool Oven Wire Harness
	WPL ARI163215A
	3400964 Whirlpool Oven Clip
	350930 Whirlpool White Spray Paint
	WPW10208653 Whirlpool Insulation
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	285006 Whirlpool Spray
	W11447673 Whirlpool Range Tip Anchor
	Wire, 25` Roll (Red 14 Ga.)
	4392899 Whirlpool Biscuit Touch-Up Paint
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	FOIL, ALUMINUM OVEN (18“ X 25 )
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	814381 Whirlpool Pin
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
1	Trim, Top (Biscuit)
2	Trim, Top (Stainless Model)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Biscuit)
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	Hinge, Door (Stainless Model)
10	WP8053807 Whirlpool Oven Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	Glass, Outer (Biscuit)
11	WPW10118455 Whirlpool Door Glass Assembly
11	Glass, Outer (Stainless Steel)
12	WP8523166 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523173 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	WP3196175 Whirlpool Screw
15	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP8523175 Whirlpool Door Trim Assembly
19	WP8523178 Whirlpool Door Trim
19	WP8523177 Whirlpool Door Trim Assembly
19	WP8523180 Whirlpool Door Trim Assembly
21	WP3196925 Whirlpool Clip Assembly
22	WP179051 Whirlpool Screw
