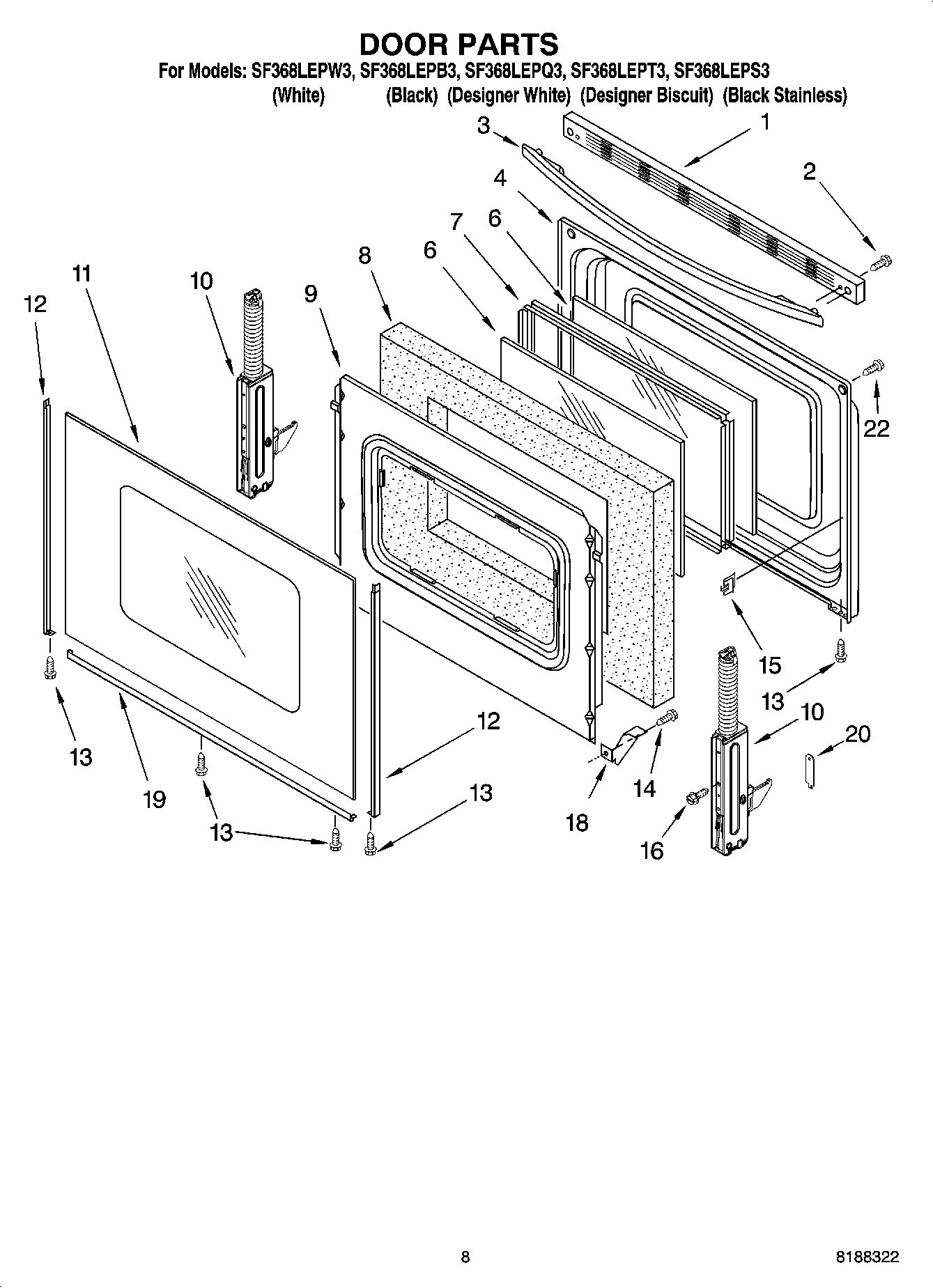

SF368LEPB3 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

SF368LEPB3 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

SF368LEPB3 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI163224A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
3196696 Whirlpool Clip
Grease
3196896 Whirlpool Clip
WPL ARI163223A
WPL ARI163222A
WPL ARI163221A
WPL ARI163220A
WPL ARI163219A
WPL 9758205
WPL ARI163225A
WPL 8524207
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
3400964 Whirlpool Oven Clip
814381 Whirlpool Pin
W11447673 Whirlpool Range Tip Anchor
Wire, 25` Roll (Red 14 Ga.)
4392899 Whirlpool Biscuit Touch-Up Paint
WPW10208653 Whirlpool Insulation
511873 Whirlpool Refrigerator Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
4392901 Whirlpool Biscuit Spray Paint
4396923 Whirlpool Broil Pan Set Gray Porcelain
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
1Trim, Top (Black and S.Steel Models)
1Trim, Top (Biscuit)
1Trim, Top (Black)
1WPW10016370 Whirlpool Door Trim
2W10777162 Whirlpool Screw
3Handle, Door (Biscuit)
3WPW10202216 Whirlpool Door Handle
3WPW10202217 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
10W10347464 Whirlpool Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11Glass, Outer (Stainless Steel)
11Glass, Outer (Biscuit)
11WPW10118455 Whirlpool Door Glass Assembly
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523173 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP3196175 Whirlpool Screw
15Clip, Glass (4)
16WPW10031790 Whirlpool Screw
18WP3196794 Whirlpool Glass Bracket
19WP8523177 Whirlpool Door Trim Assembly
19WP8523180 Whirlpool Door Trim Assembly
19WP8523175 Whirlpool Door Trim Assembly
19WP8523178 Whirlpool Door Trim
209761517 Whirlpool Oven Clip Assembly
22WP179051 Whirlpool Screw
