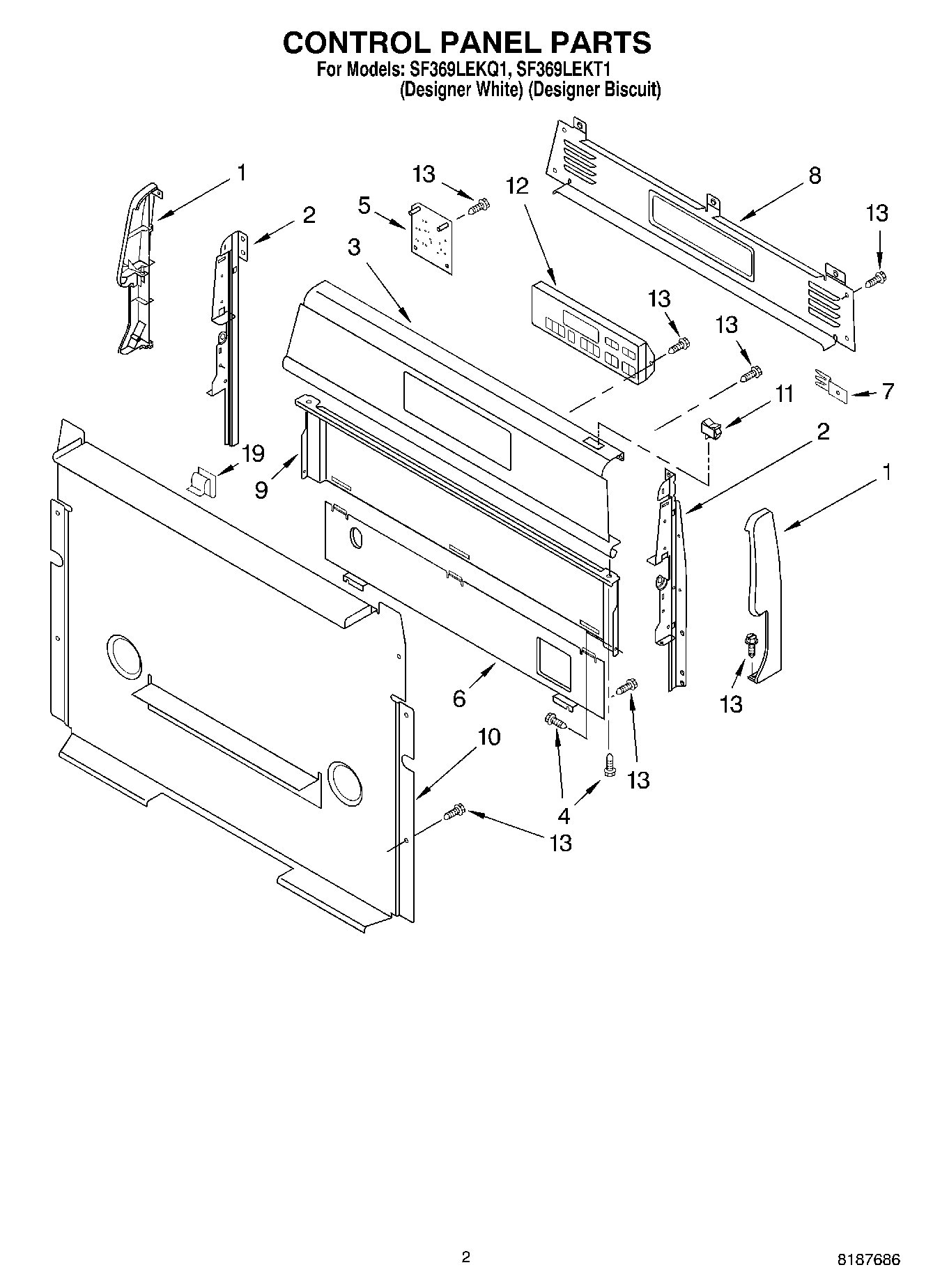

SF369LEKQ1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8Cover, Upper
9Shield, Heat
10Cover, Lower
113149360 Whirlpool Light Switch
11Switch, Rocker (Biscuit)
12Control, Range (White)
12Control, Range (Biscuit)
13SCREW
19WP8273564 Whirlpool Clip
