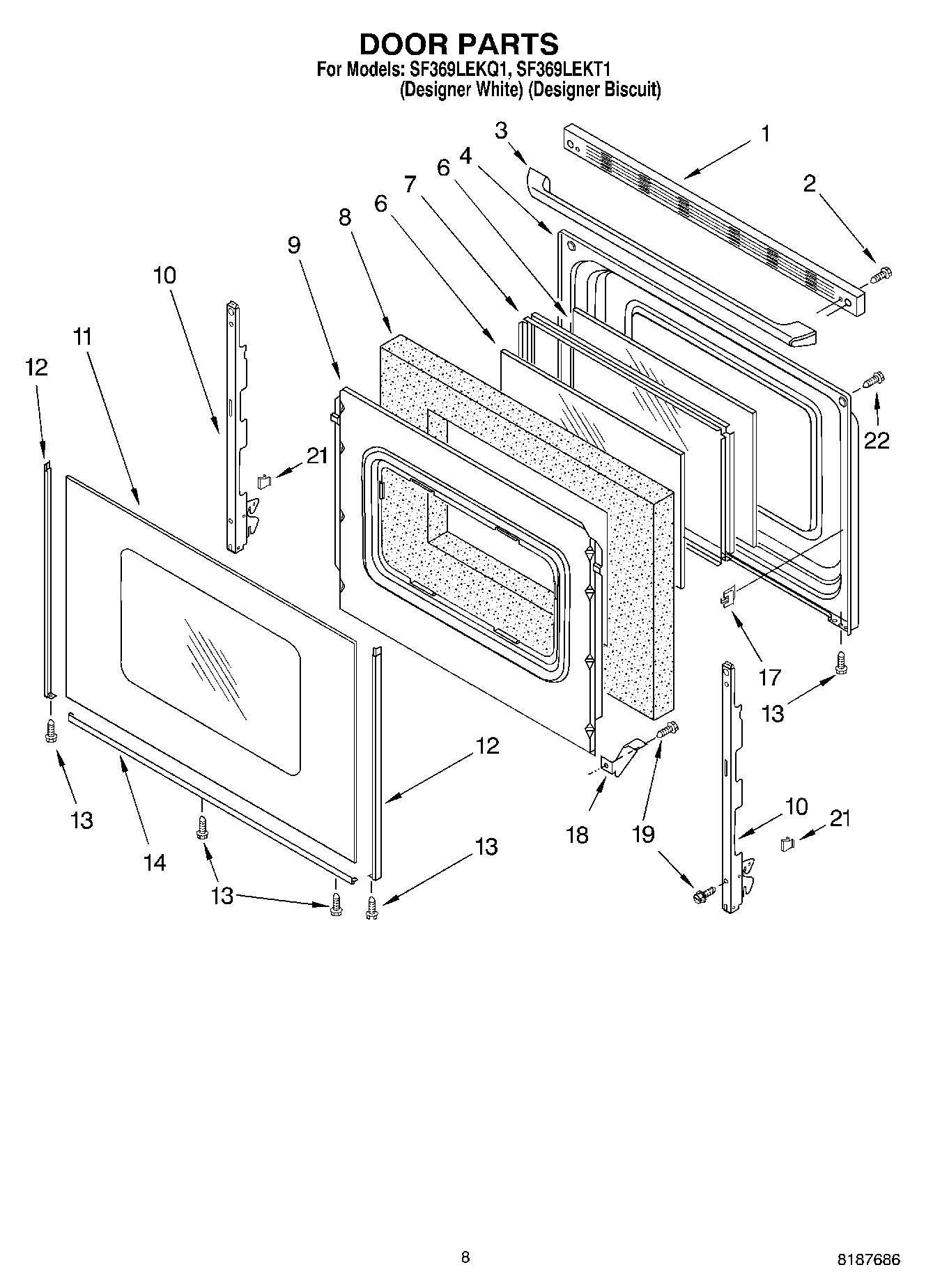

SF369LEKQ1 06 – DOOR

SF369LEKQ1 06 – DOOR

Written by

in

SF369LEKQ1 06 – DOOR

Products

Position	Product
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Biscuit)
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	Glass, Outer Door (Biscuit)
11	WP8053834 Whirlpool Door Glass
12	8184860 Whirlpool Oven Door Trim
13	W10491985 Whirlpool Screw
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
17	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP3196175 Whirlpool Screw
21	WP3196925 Whirlpool Clip Assembly
22	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
22	Wire (14 Ga. 200 c Brown)
22	Grease
22	3196696 Whirlpool Clip
22	8212471 Whirlpool Oven Paint
22	1
22	WPL 8053527
22	3196896 Whirlpool Clip
22	350942 Whirlpool Spray Paint
22	8523599 Whirlpool Oven Wire Harness
22	WPL 8523424
22	WPL 8273901
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Yellow)
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
22	511873 Whirlpool Refrigerator Paint
22	4392901 Whirlpool Biscuit Spray Paint
22	4392899 Whirlpool Biscuit Touch-Up Paint
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	16515 Whirlpool Clip
22	3400964 Whirlpool Oven Clip
22	WP179051 Whirlpool Screw
22	814381 Whirlpool Pin
22	285006 Whirlpool Spray
22	Wire, 25“ Roll (White 14 GA.)
22	350930 Whirlpool White Spray Paint
