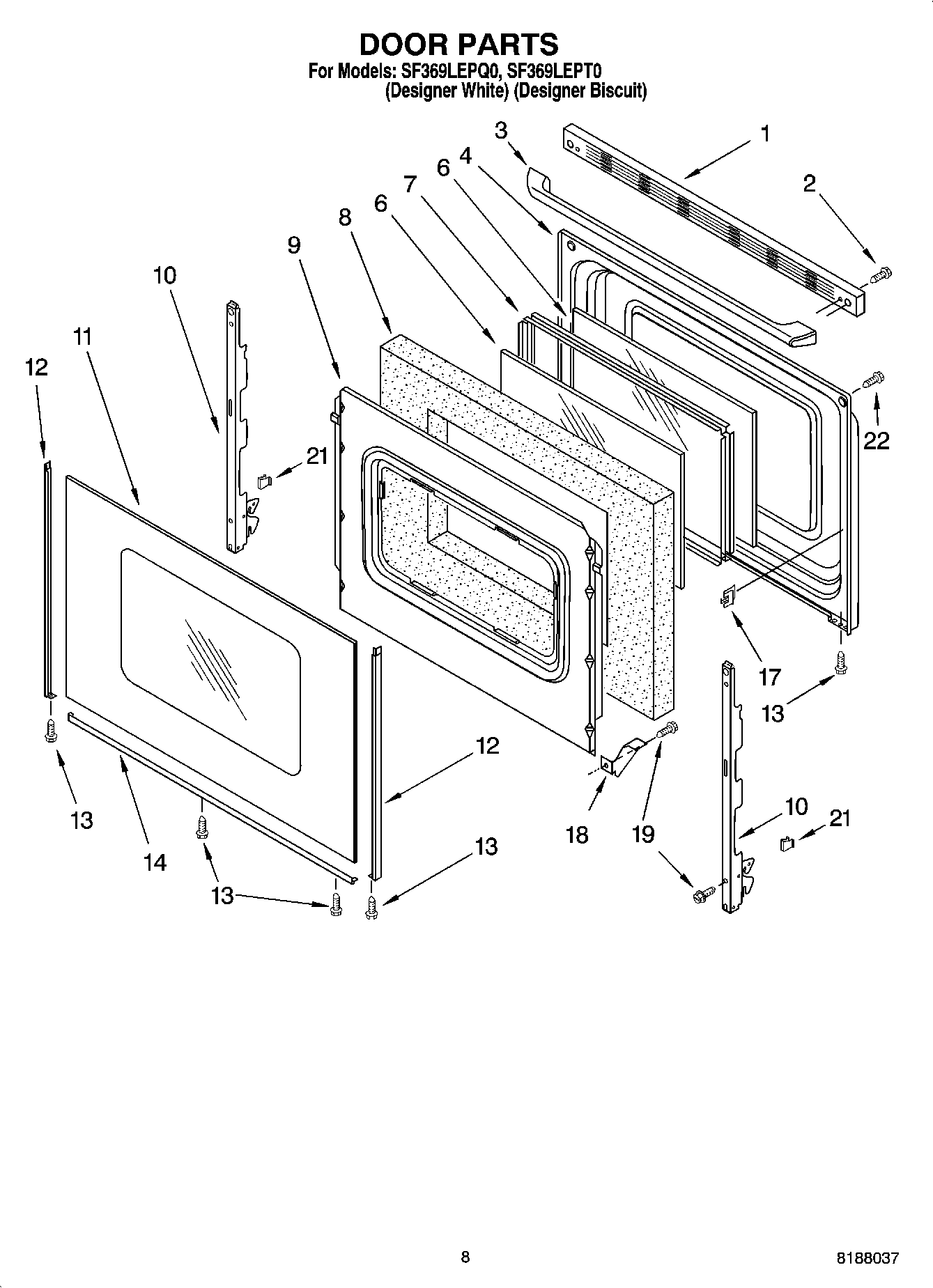

SF369LEPQ0 06 – DOOR PARTS, OPTIONAL PARTS

SF369LEPQ0 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

SF369LEPQ0 06 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI163463A
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WPL ARI163464A
WPL ARI163462A
WPL ARI163461A
WPL ARI163460A
WPL ARI163459A
WPL ARI163458A
WPL ARI163457A
WPL 8524207
WPL 8523424
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
3196896 Whirlpool Clip
3400964 Whirlpool Oven Clip
Grease
814381 Whirlpool Pin
WPW10208653 Whirlpool Insulation
WPL 799832
FOIL, ALUMINUM OVEN (18“ X 25 )
511873 Whirlpool Refrigerator Paint
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Almond (Uncut)
WP72107 Whirlpool Touchup
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3Handle, Door (Biscuit)
3WPW10202216 Whirlpool Door Handle
4Liner, Door
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11Glass, Outer (Biscuit)
12WP8523166 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
13W10491985 Whirlpool Screw
14WP8523178 Whirlpool Door Trim
14WP8523175 Whirlpool Door Trim Assembly
17Clip, Glass (4)
18WP3196794 Whirlpool Glass Bracket
19WP3196175 Whirlpool Screw
21WP3196925 Whirlpool Clip Assembly
22WP179051 Whirlpool Screw
