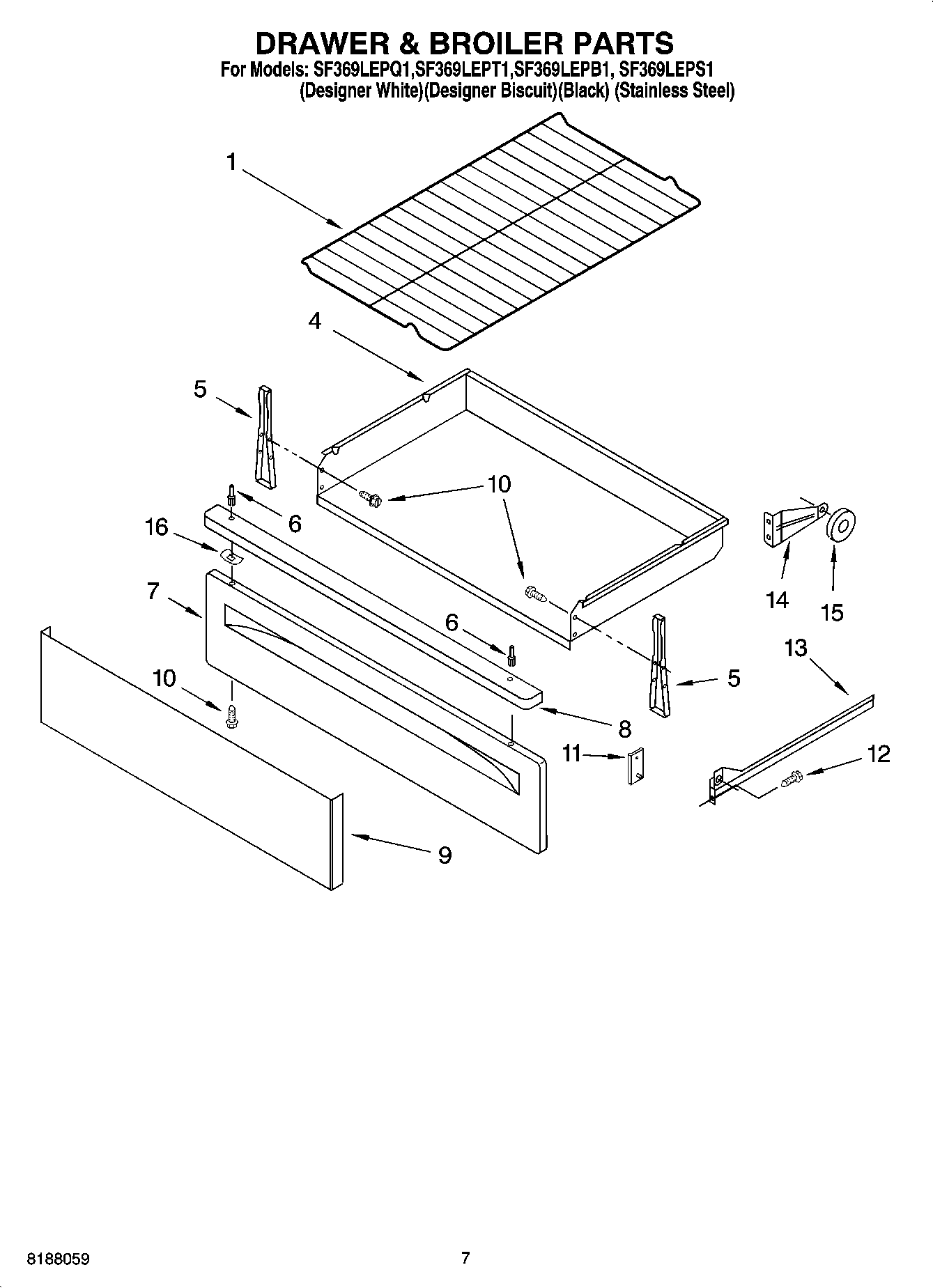

SF369LEPQ1 05 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
4	Drawer, Storage
5	BRKT-MNTG
6	WP3196814 Whirlpool Rivet
6	WP3196813 Whirlpool Rivet
6	3196815 Whirlpool Oven Rivet
7	PANEL, DRAWER FRONT (BISCUIT)
7	W11230490 Whirlpool Drawer Panel
7	W11230486 Whirlpool Drawer Panel
8	Handle
9	Panel, Stnls & US
10	WP3400832 Whirlpool Screw
11	Spacer, Glide
12	WP3196175 Whirlpool Screw
13	Rail, Drawer (Right Hand)
13	Rail, Drawer (Left Hand)
14	Bracket, Roller
15	814229 Whirlpool Primary Roller
16	WP9781235 Whirlpool Clip
