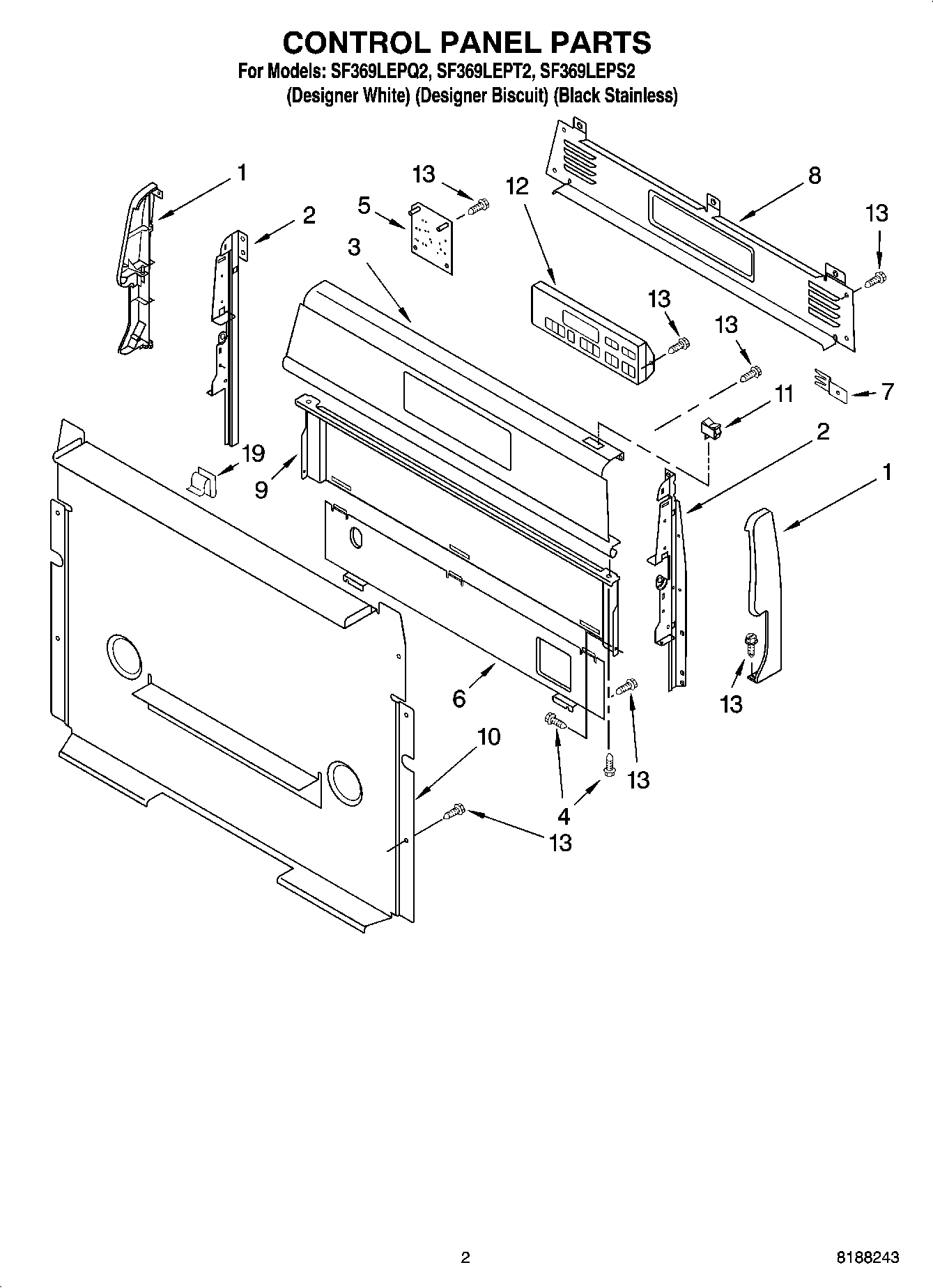

SF369LEPQ2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Biscuit Right Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap (Black Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (Stainless)
3Panel, Backguard (White)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8Cover, Upper
9Shield, Heat
10Cover, Lower
11Switch, Rocker (Biscuit)
113149360 Whirlpool Light Switch
11WP4314961 Whirlpool Lite Switch
12WP6610449 Whirlpool Electronic Control Board
12Control, Range (White)
12Control, Range (Biscuit)
13SCREW
19WP8273564 Whirlpool Clip
