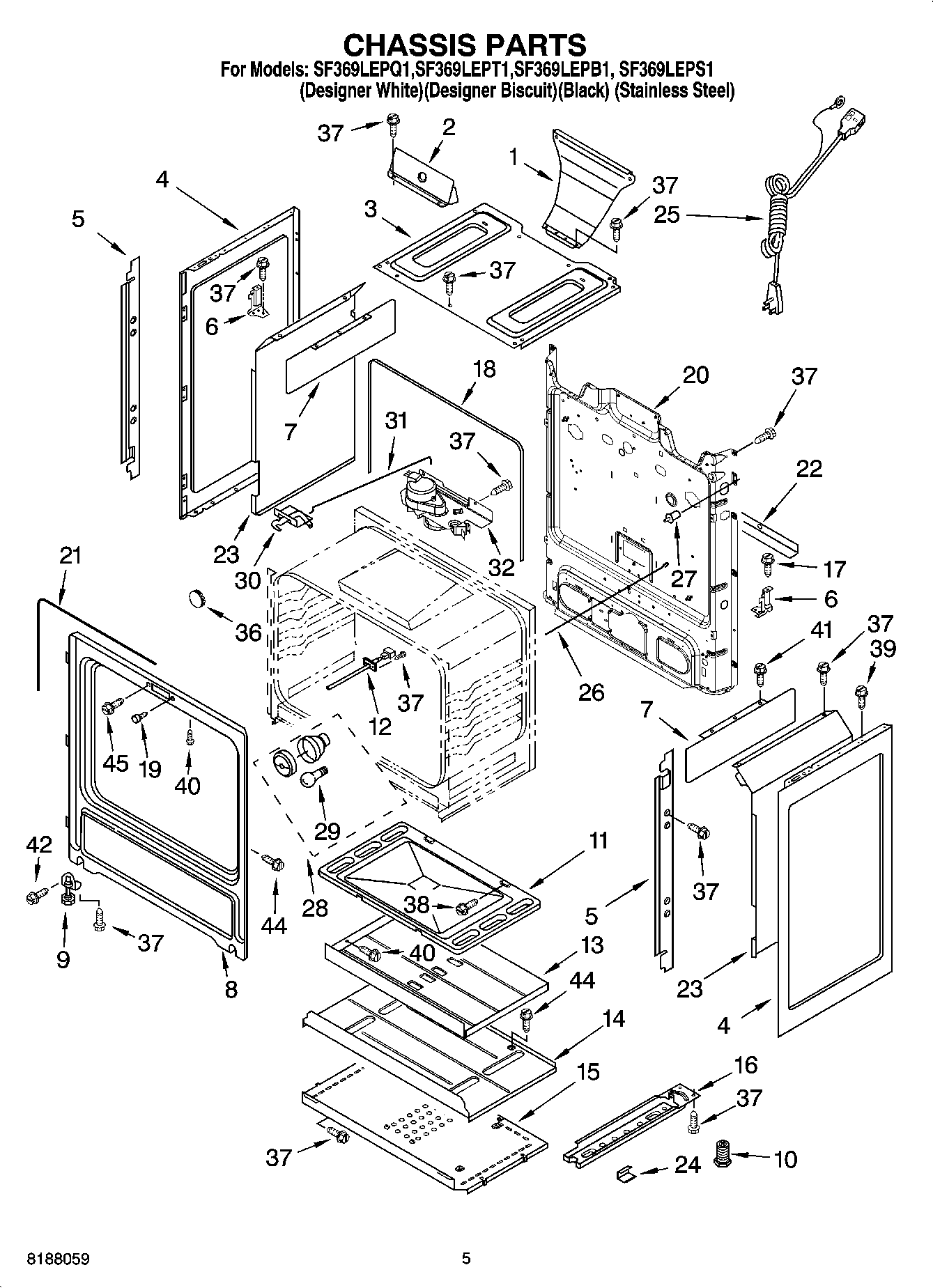

SF369LEPS1 04 – CHASSIS PARTS

Products

Position	Product
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	W11379351 Whirlpool Burner Box
4	W10162246 Whirlpool Side Panel
4	WPW10575396 Whirlpool Side Panel
4	W11730303 Whirlpool Side Panel
5	Sheild, Heat (2)
6	8523249 Whirlpool Oven Support Bracket
7	Shield, Heat (2)
8	Frame, Front
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
12	WPW10181986 Whirlpool Oven Sensor
13	8053967 Whirlpool Oven Heat Baffle
14	8053969 Whirlpool Heat Shield
15	8053968 Whirlpool Oven Heat Shield
16	WPW10306546 Whirlpool Base Rail
17	WP4449743 Whirlpool Screw
18	Seal, Oven Flange
19	W10877054 Whirlpool Spacer Assembly
20	Back, Main
21	W11542153 Whirlpool Door Gasket
22	Brace, Main Back
23	Retainer, Insul. (Right Hand)
23	Retainer, Insul. (Left Hand)
24	Clip, Panel (6)
25	WP9757891 Whirlpool Power Cord
26	9757239 Whirlpool Oven Door Rod
27	W11243424 Whirlpool Light Switch
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP9761013 Whirlpool Door Latch
30	W11169708 Whirlpool Screw
31	W10078370 Whirlpool Latch Rod
32	WPW10107830 Whirlpool Stove Door Lock Latch Assembly
36	Button, Plug
38	Screw
39	3196166 Whirlpool Screw
39	WPL 8281194
40	SCREW
41	WP3196557 Whirlpool Screw
42	Screw
44	WP7101P246-60 Whirlpool Screw
45	W11688737 Whirlpool Insulation
45	WP3400832 Whirlpool Screw
45	W11684915 Whirlpool Insulation
45	8053915 Whirlpool Oven Insulation
45	Insulation
