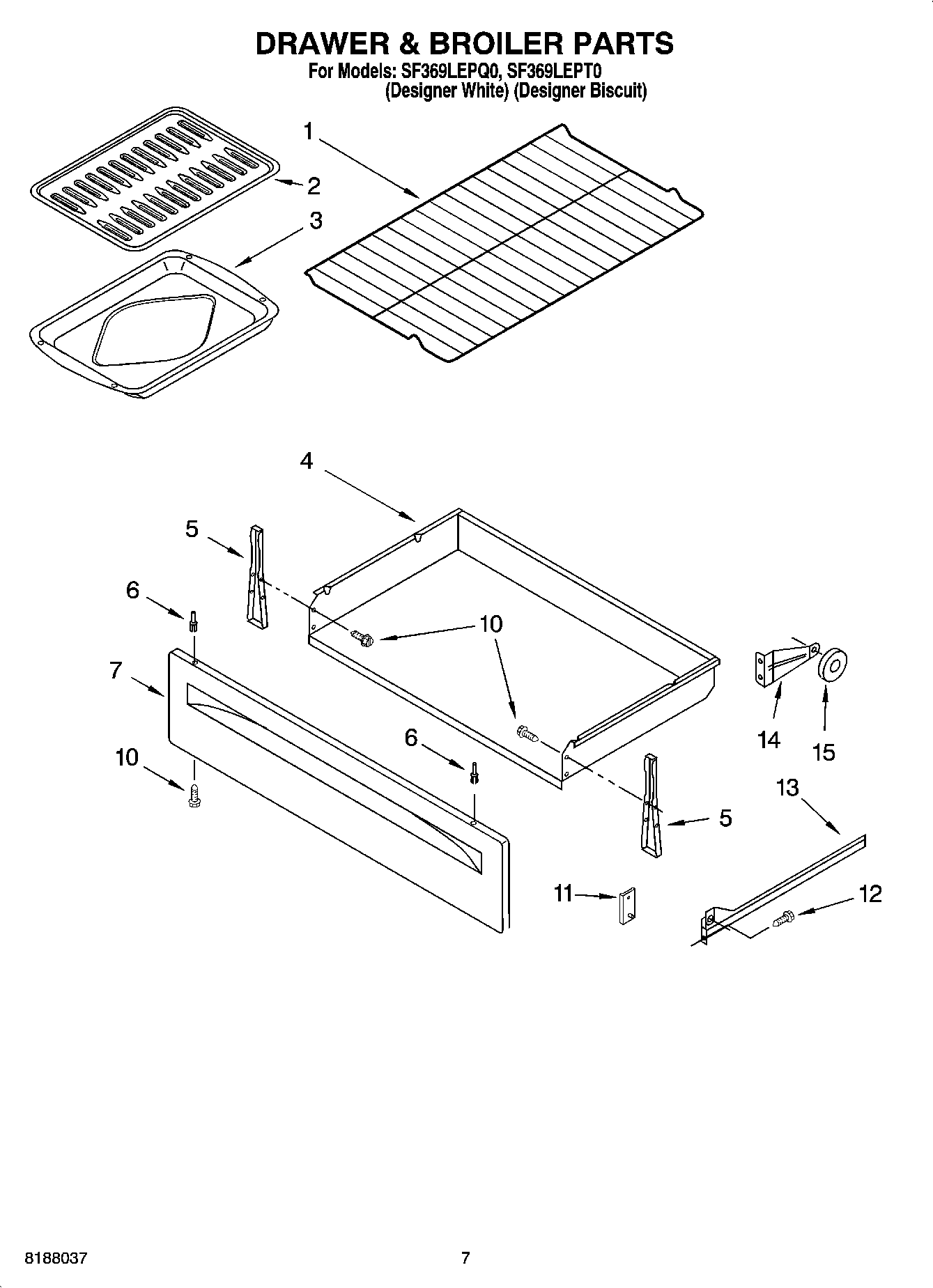

SF369LEPT0 05 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5BRKT-MNTG
6WP3196814 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
7W11230486 Whirlpool Drawer Panel
7PANEL, DRAWER FRONT (BISCUIT)
10WP3400832 Whirlpool Screw
11Spacer, Glide
12WP3196175 Whirlpool Screw
13Rail, Drawer (Left Hand)
13Rail, Drawer (Right Hand)
14Bracket, Roller
15814229 Whirlpool Primary Roller
