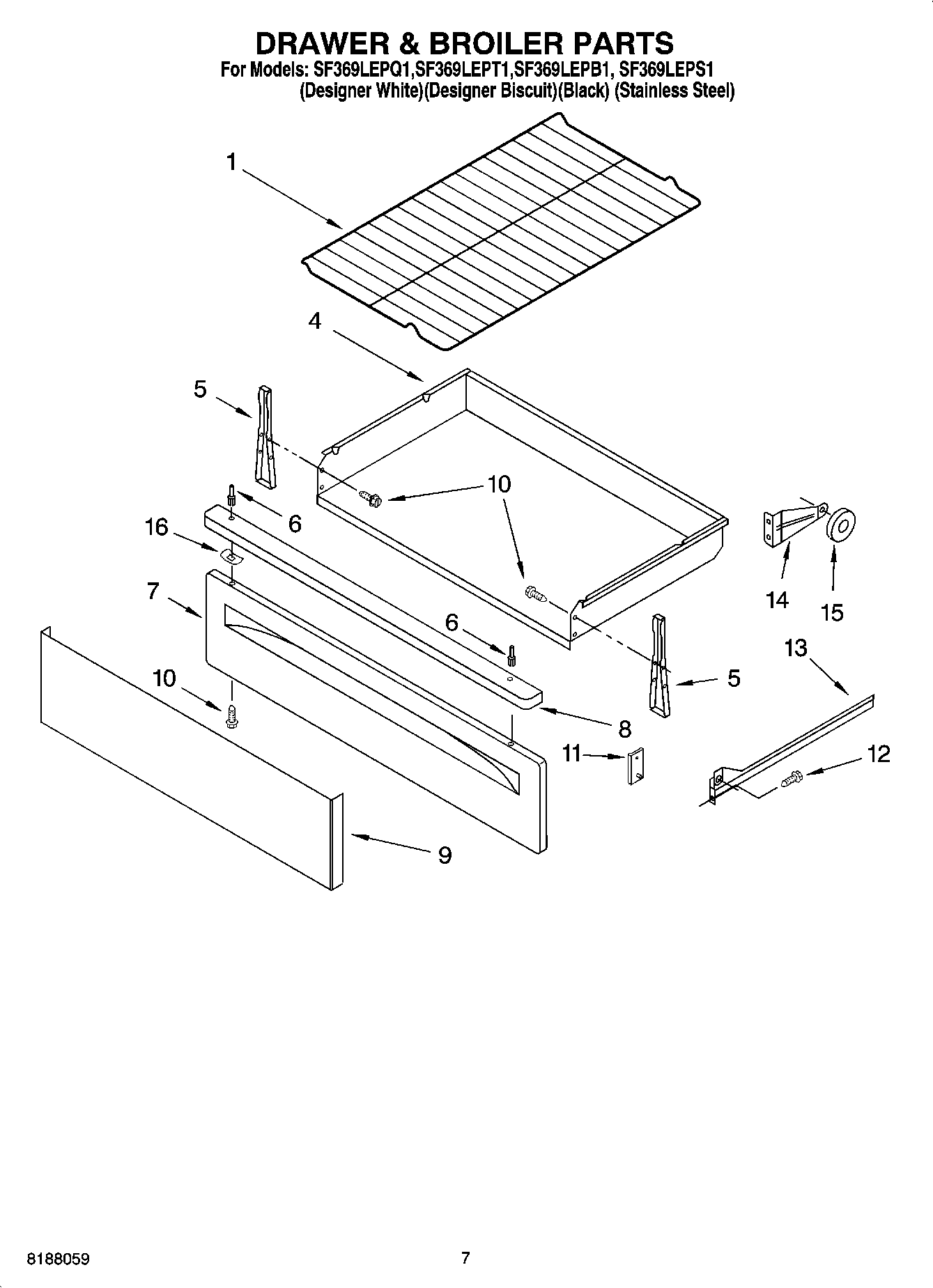

SF369LEPT1 05 – DRAWER & BROILER PARTS

SF369LEPT1 05 – DRAWER & BROILER PARTS

Written by

in

SF369LEPT1 05 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
4Drawer, Storage
5BRKT-MNTG
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
7PANEL, DRAWER FRONT (BISCUIT)
7W11230490 Whirlpool Drawer Panel
7W11230486 Whirlpool Drawer Panel
8Handle
9Panel, Stnls & US
10WP3400832 Whirlpool Screw
11Spacer, Glide
12WP3196175 Whirlpool Screw
13Rail, Drawer (Right Hand)
13Rail, Drawer (Left Hand)
14Bracket, Roller
15814229 Whirlpool Primary Roller
16WP9781235 Whirlpool Clip
