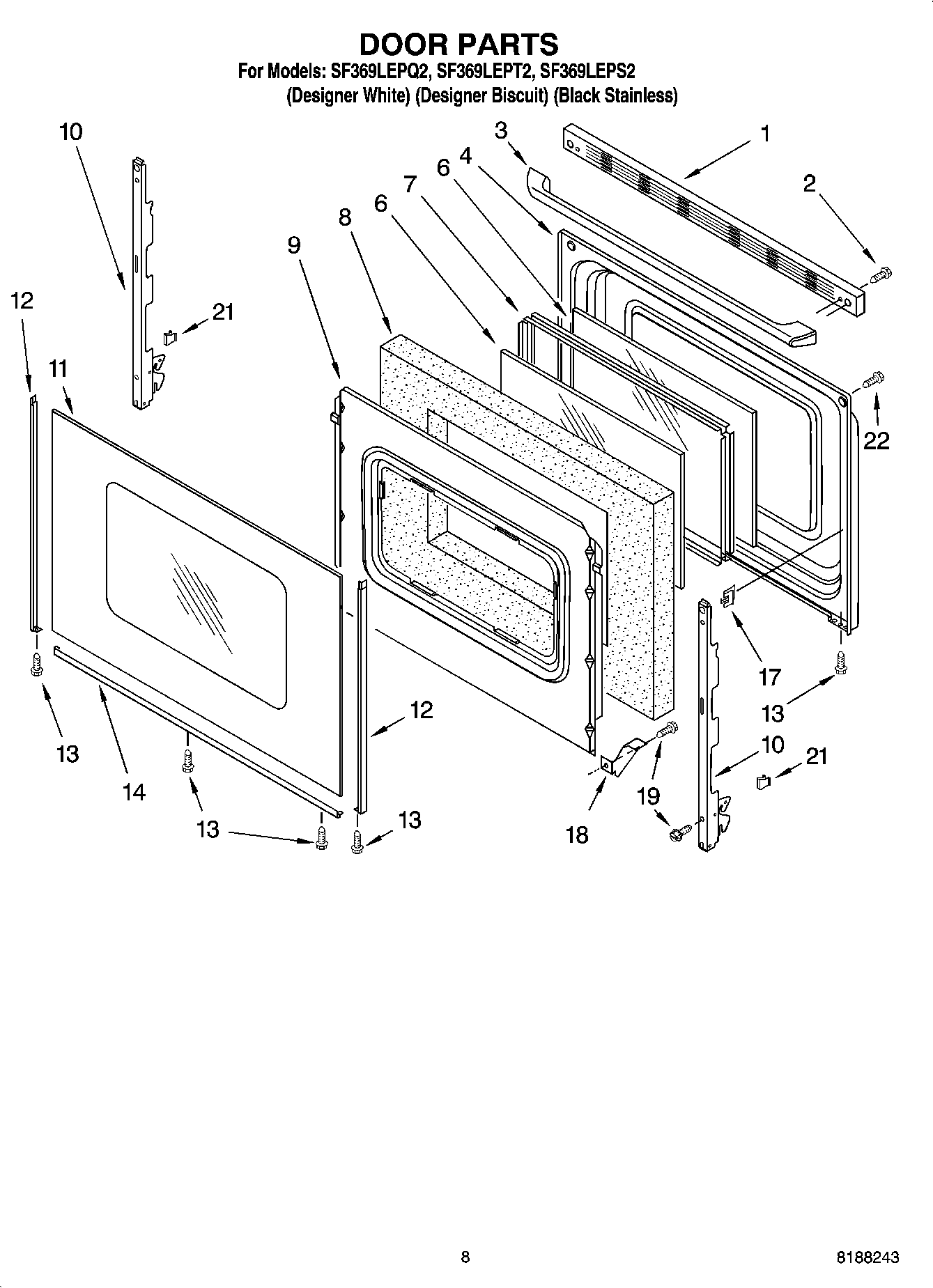

SF369LEPT2 06 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI163559A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
3196696 Whirlpool Clip
WP3195996 Whirlpool Pan Grid
WPL ARI163558A
WPL ARI163557A
WPL ARI163556A
WPL ARI163555A
WPL ARI163554A
WPL ARI163553A
WPL 9758205
WPL 8524207
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
3196896 Whirlpool Clip
WPL ARI163560A
Grease
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
814381 Whirlpool Pin
W11447673 Whirlpool Range Tip Anchor
WPL 799832
72017 Whirlpool Appliance Touch-Up Paint White
WP3196076 Whirlpool Broil Pan
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
350942 Whirlpool Spray Paint
350956 Whirlpool Spray Assembly
1Trim, Top (Biscuit)
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Stainless Model)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3Handle, Door (Biscuit)
3WPW10202216 Whirlpool Door Handle
4Liner, Door
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10Hinge, Door (Stainless Model)
10WP8053807 Whirlpool Oven Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11Glass, Outer (Biscuit)
11Glass, Outer (Stainless Steel)
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12W10761014 Whirlpool Right Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523180 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
17Clip, Glass (4)
18WP3196794 Whirlpool Glass Bracket
19WP3196175 Whirlpool Screw
21WP3196925 Whirlpool Clip Assembly
22WP179051 Whirlpool Screw
