SF370LEGW1 01 – COOKTOP

SF370LEGW1 01 – COOKTOP

Written by

in

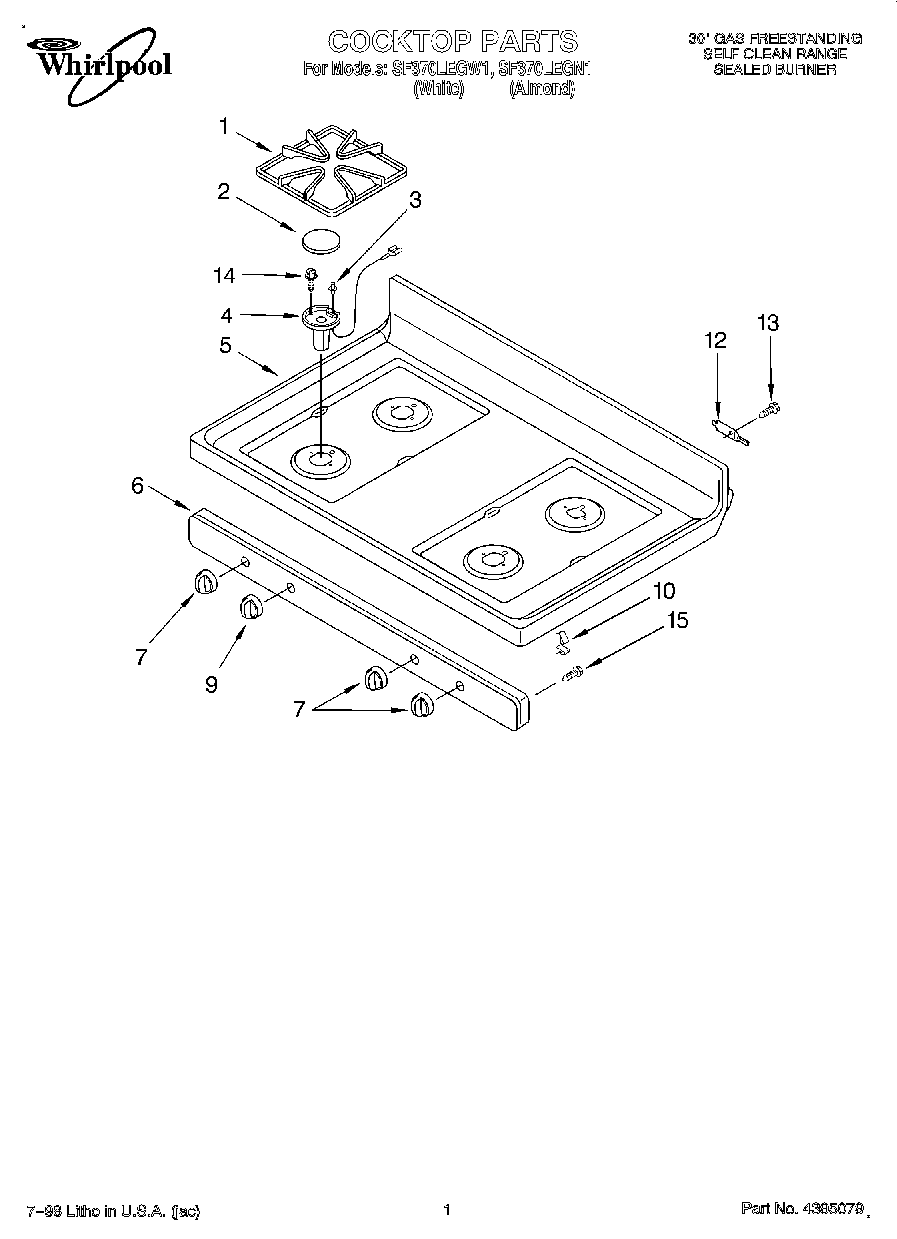

SF370LEGW1 01 – COOKTOP

Products

PositionProduct
1WPW10268483 Whirlpool Grate Kit
2Cap, Burner (Large (3) (Black))
2Cap, Burner (Small (1) (Black))
3W11117434 Whirlpool Surface Igniter
3W11032529 Whirlpool Surface Igniter
3W11087383 Whirlpool Surface Igniter
3W11122877 Whirlpool Surface Igniter
4Burner, 6,500 BTU (RR)
4WP8053360 Whirlpool Burner Head
5Cooktop (White)
5Cooktop (Almond)
68523855 Whirlpool Oven Manifold Panel
7WP8053595 Whirlpool Oven Knob
10Clip – Mounting
12WP3195060 Whirlpool Cooktop Pin
13SCREW
14WP3400861 Whirlpool Screw
15WP3196557 Whirlpool Screw
