SF370PEGQ1 01 – COOKTOP

SF370PEGQ1 01 – COOKTOP

Written by

in

SF370PEGQ1 01 – COOKTOP

Products

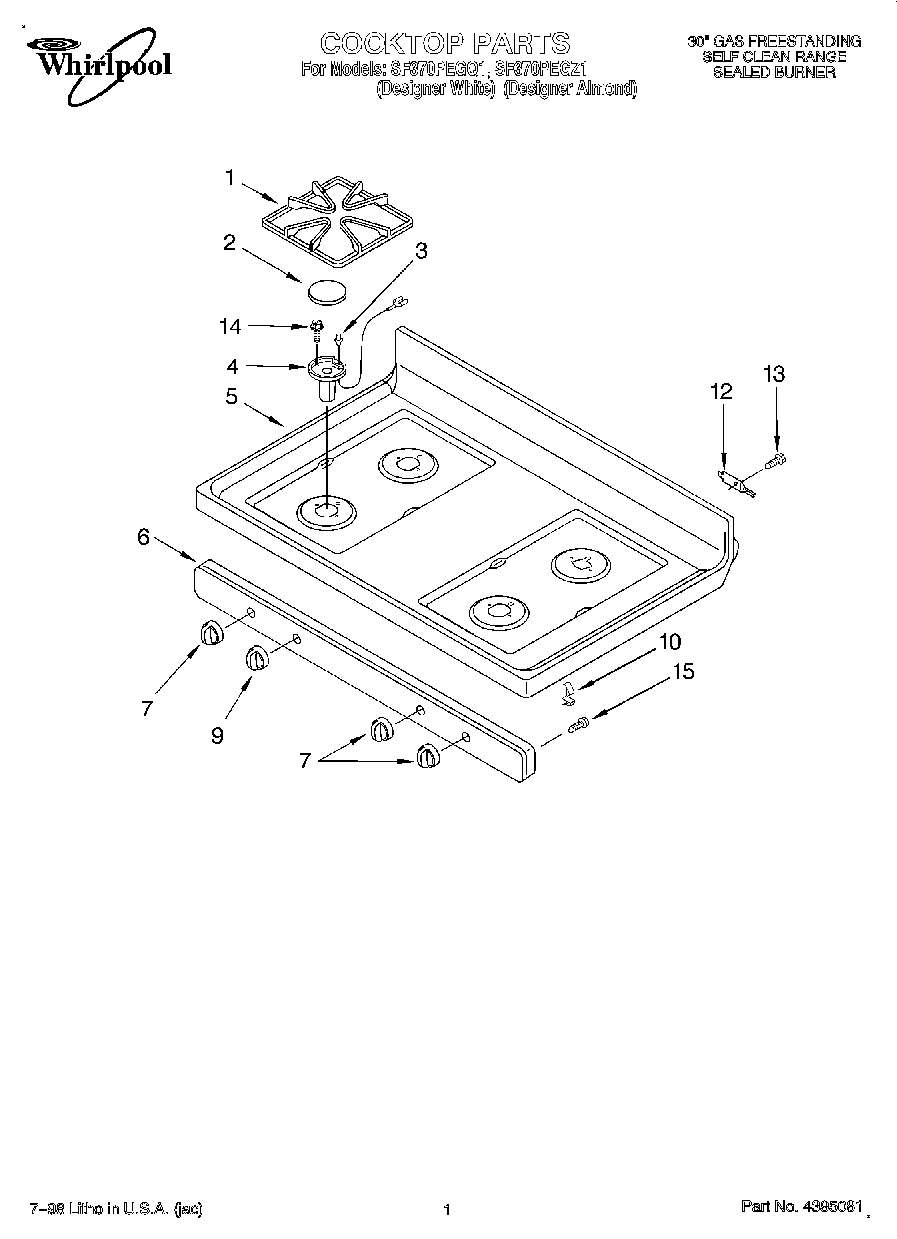

PositionProduct
1W10837340 Whirlpool Grate Kit
1WPW10268483 Whirlpool Grate Kit
2Cap, Burner (Small (1) (Black))
2(Cap, Burner Small (1)) (Gray)
2Cap, Burner (Large (3) (Black))
2Cap, Burner Large (3) (Gray)
3W11122877 Whirlpool Surface Igniter
3W11117434 Whirlpool Surface Igniter
3W11032529 Whirlpool Surface Igniter
3W11087383 Whirlpool Surface Igniter
4WP8053360 Whirlpool Burner Head
4Burner, 6,500 BTU (RR)
5Cooktop (Almond)
5Cooktop (White)
6Panel, Manifold (Almond Model)
6WP8523854 Whirlpool Manifold Panel
7WP8053596 Whirlpool Knob
7Knob, Control (2) (Almond)
9Knob, Powerburner (Almond)
10Clip – Mounting
12WP3195060 Whirlpool Cooktop Pin
13SCREW
14WP3400861 Whirlpool Screw
15WP3196557 Whirlpool Screw
