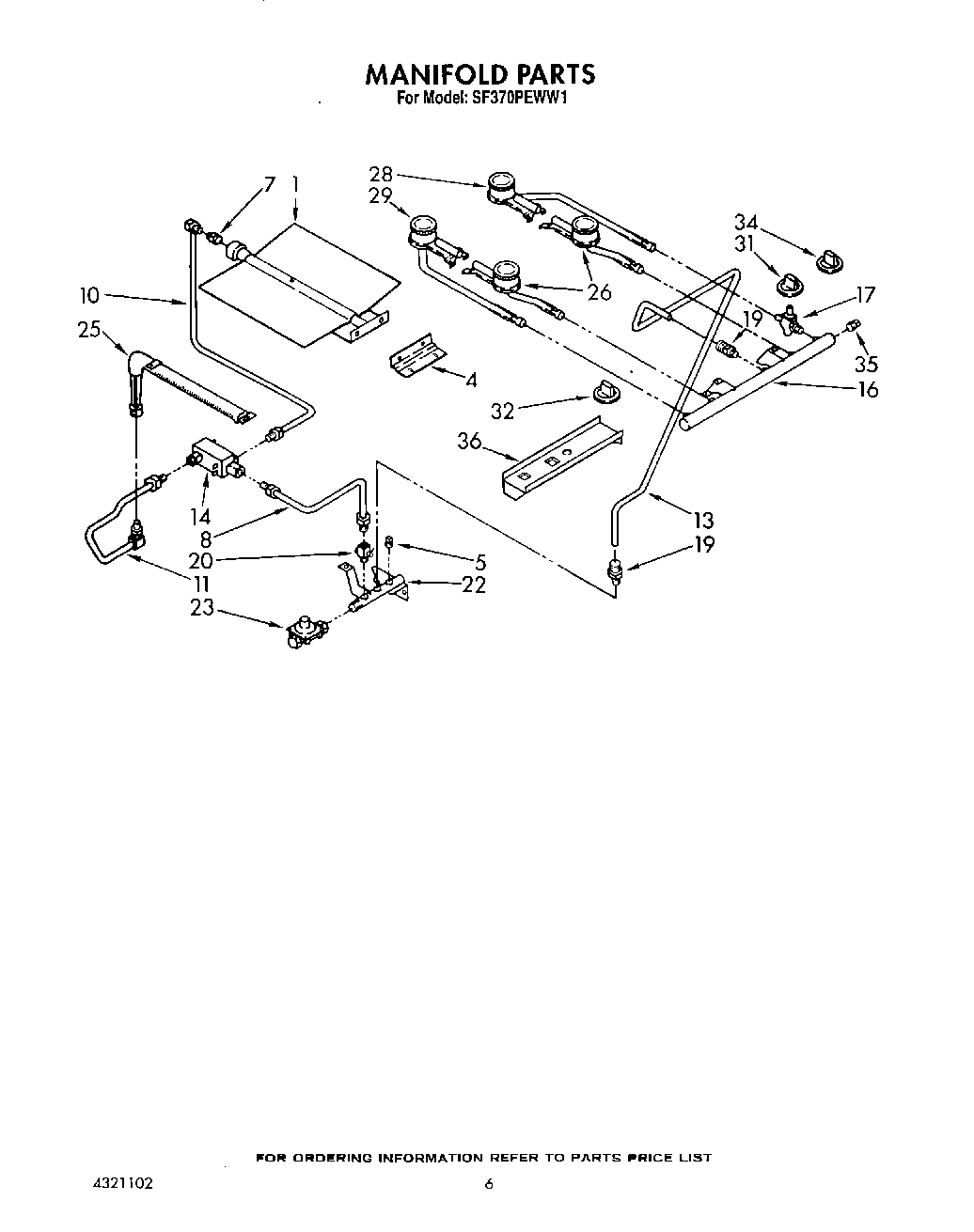

SF370PEWN1 04 – MANIFOLD

Products

Position	Product
1	Burner, Broiler
1	Nut, 6-32 (6)
4	Support, Burner Mounting
5	W10295523 Whirlpool Plug
7	Natural Gas No. 51.
8	Tubing, (Inlet To Gas Valve)
10	Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11	hood & tubing assembly (gas valve to lower oven burner)
11	Nut, Lock
13	tubing (inlet to manifold)
14	Valve, Dual Gas Valve
16	Plate, Cover
17	Valve, Top Burner (Tri-Set)
19	Fitting
20	Valve, Shut-Off
22	Inlet, Gas
23	Regulator, Pressure
25	Oven Burner, Lower
26	Top Burner, Front (2)
28	Top Burner, R.R.
29	Top Burner, L.R.
31	Knob, Top Burner (4)
32	Knob, Oven Control
34	Knob, Selector Switch
35	Pipe Plug, 3/8 NPT
36	shelf, gas valve
