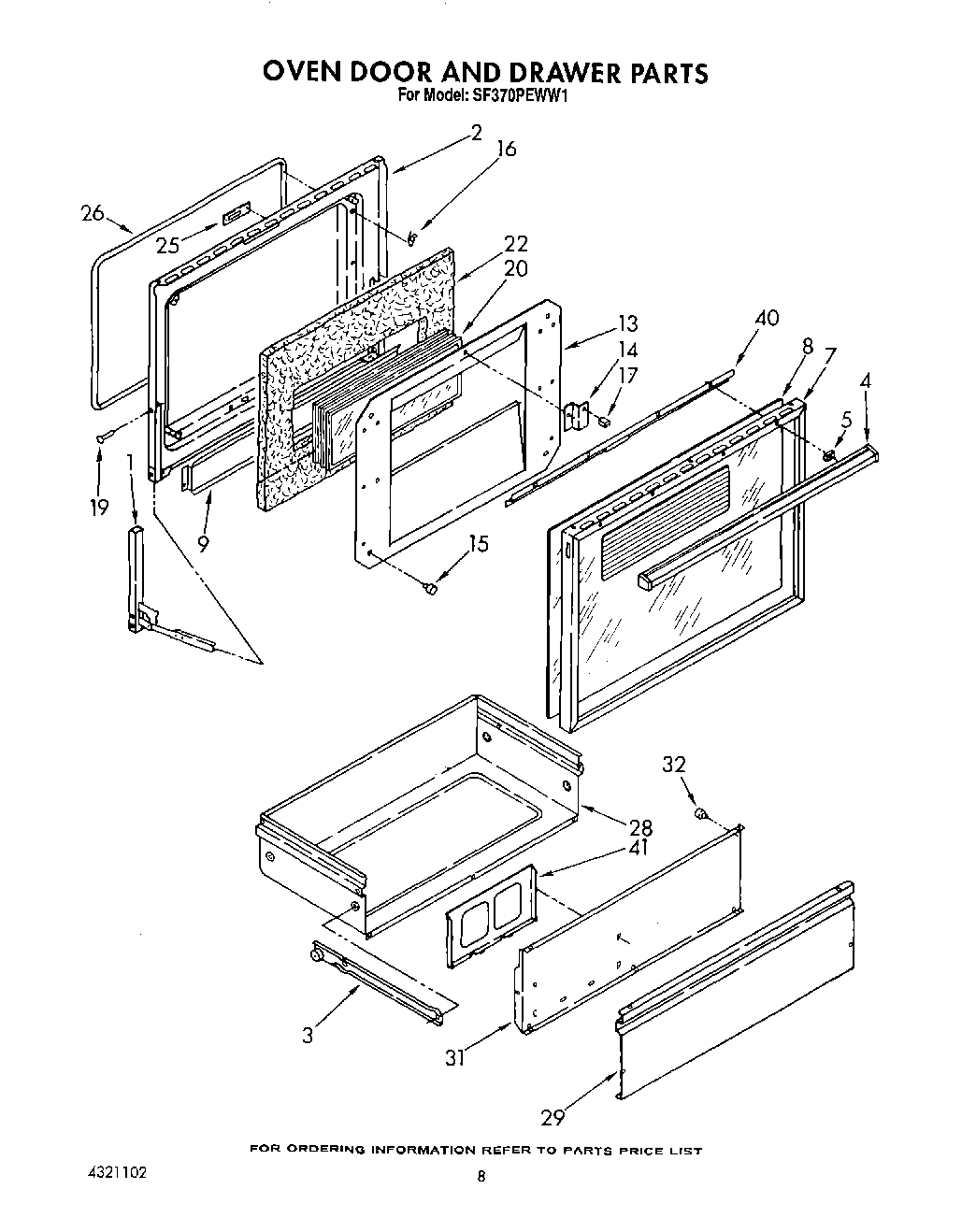

SF370PEWN1 06 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Hinge, Oven Door (L.H.)
1Hinge, Oven Door (R.H.)
2Screw, 8-32 X 5/8 (4)
2WP965173 Whirlpool Dishwasher Screw
2Pad, Oven Door
2WP308685 Whirlpool Microwave Screw
2WP488130 Whirlpool Air Conditioner Nut
3runner (l.h.)
3Runner (R.H.)
4Handle
5Spacer, Handle (2)
7Frame
8Panel, Black Glass
9Baffle, Heat
13Plate, Insulation
14bracket, glass support (4)
15Bumper, Window (2)
16Clip, Speed (14)
19Pin, Hinge (2)
20Retainer, Window (4)
22Insulation, Door
25Plate, Latch
26gasket assembly
28Wrapper, Storage Drawer
29Panel, Drawer (Almond)
29Panel, Drawer (White)
31Liner, Door Panel
32Bumper, Rubber
40Baffle, Air
41Rack, Literature
