SF370PEWN2 02 – INTERNAL OVEN

SF370PEWN2 02 – INTERNAL OVEN

Written by

in

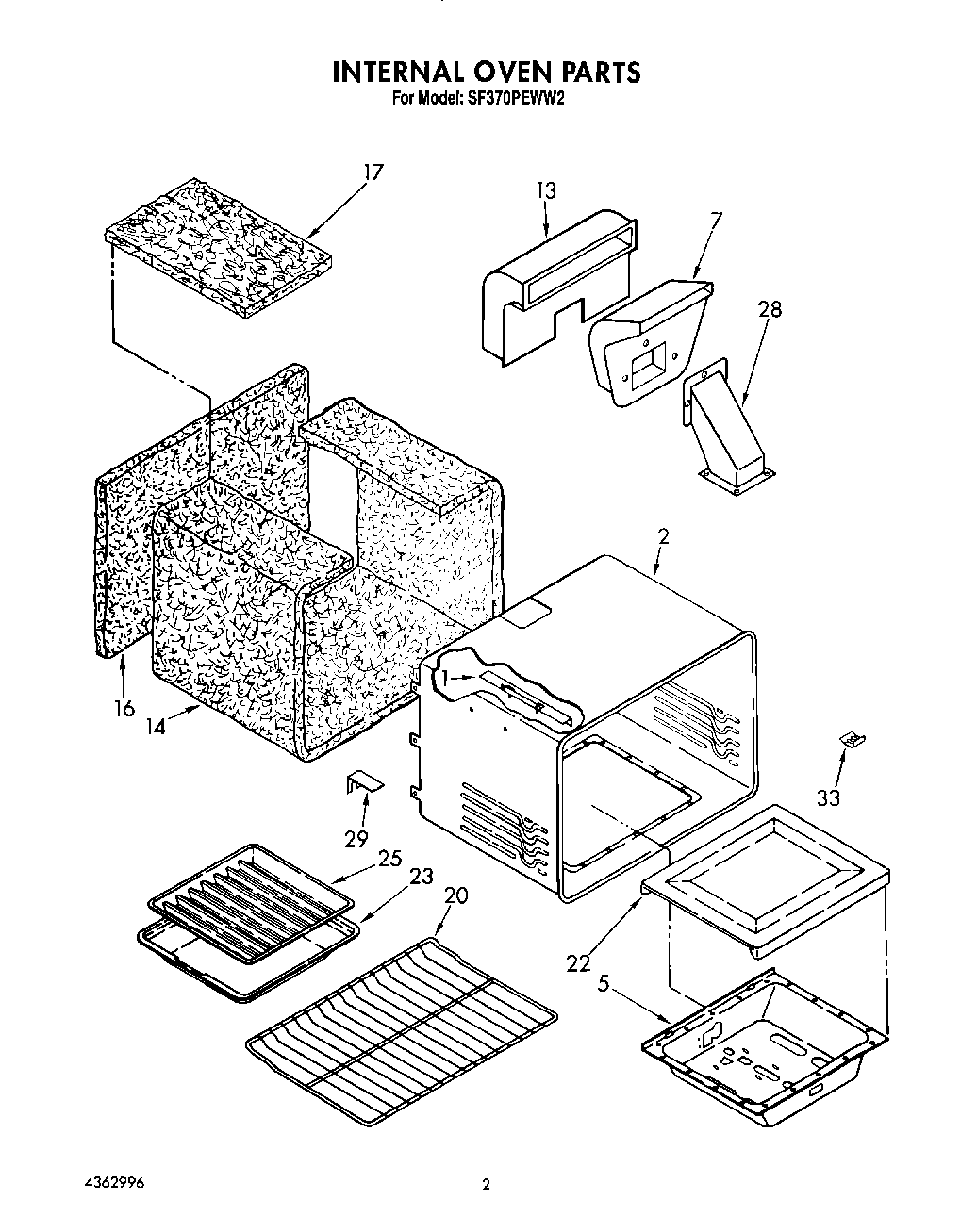

SF370PEWN2 02 – INTERNAL OVEN

Products

PositionProduct
1Sheild, Thermostat Bulb
2Oven 30“ Self-Clean
5Burner, Box, Lower
7Flue, Inner
13Flue, Dilution
14WPW10208653 Whirlpool Insulation
20Rack, Oven (2)
22Bottom, Oven
23Pan, Broiler
25Grid, Broiler
28Vent
28Gasket, Vent
29bracket, oven shell
33Cover, Chip
