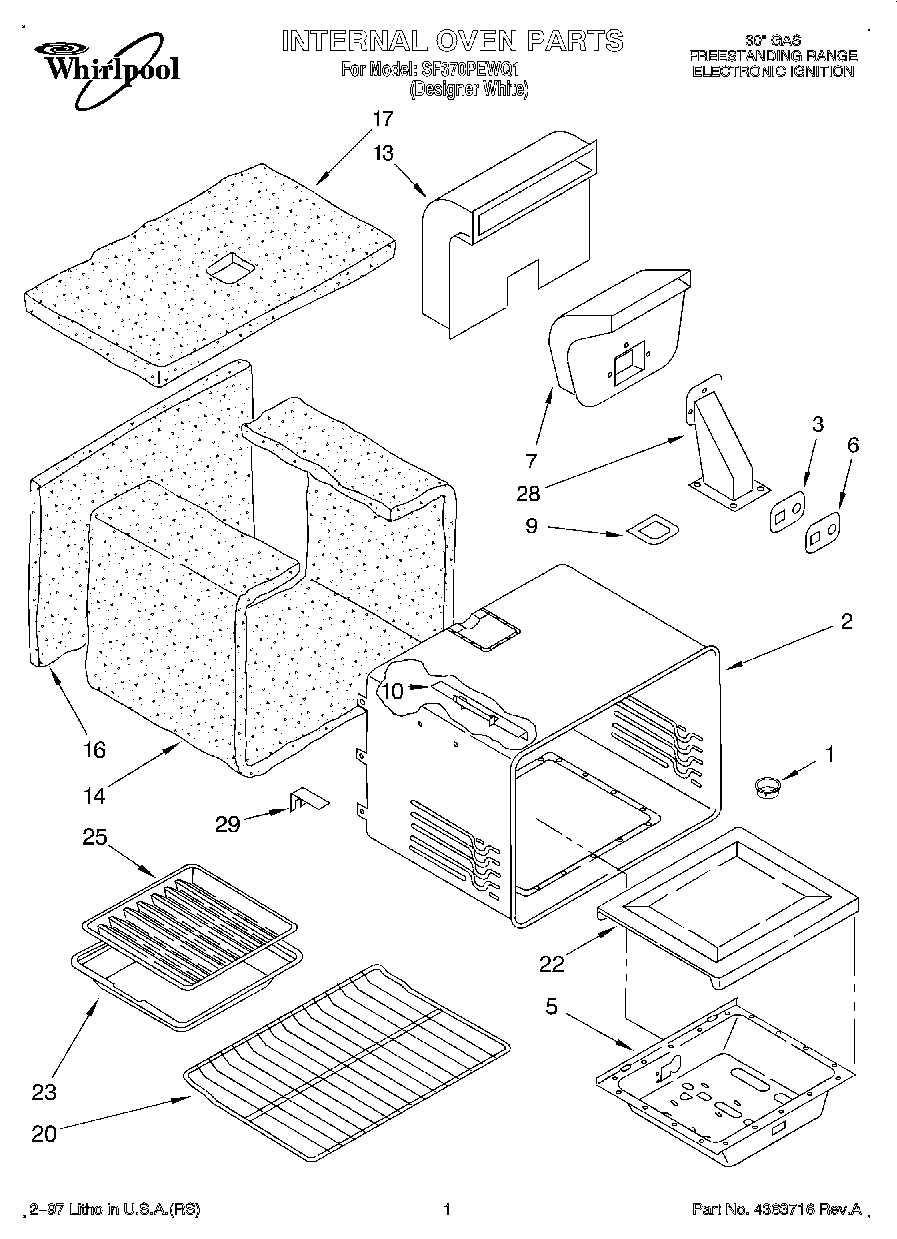

SF370PEWQ1 01 – INTERNAL OVEN

Products

PositionProduct
1Bushing, Snap
2Oven 30“ Self-Clean
3Plate, Burner Broil
5Burner, Box, Lower
6Gasket, Plate
7Flue, Inner
9Gasket, Vent
10Sheild, Thermostat Bulb
13Flue, Dilution
14WPW10208653 Whirlpool Insulation
20Rack, Oven (2)
22Bottom, Oven
23Pan, Broiler
25Grid, Broiler
28Vent
29bracket, oven shell
