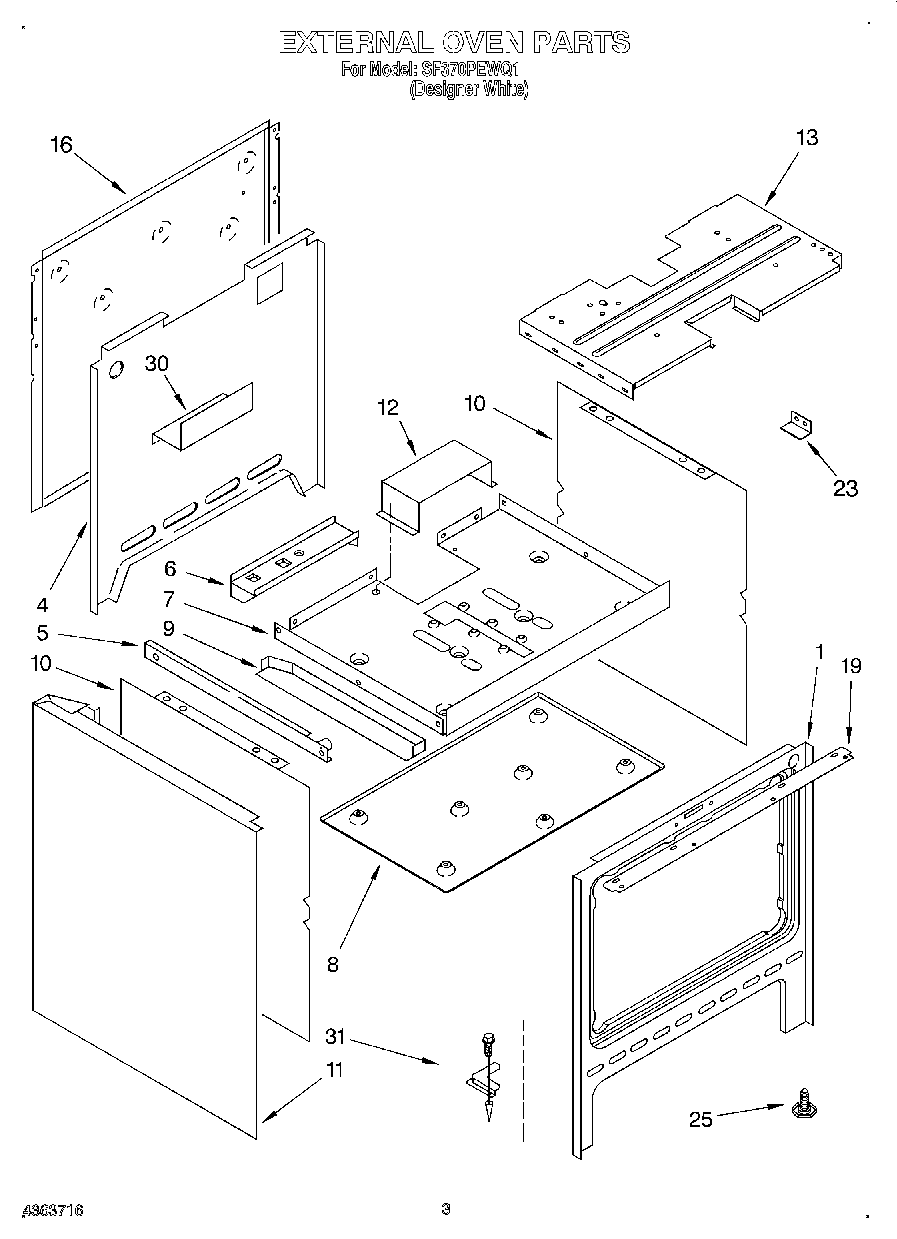

SF370PEWQ1 02 – EXTERNAL OVEN

Products

PositionProduct
1Frame, Front
4Retainer, Rear Insulation
5Track, Storage Drawer (Right Side)
5Track, Storage Drawer (Left Side)
6Shelf, Gas Valve
7Retainer, Bottom Insulation
8Heat Shield, Storage Drawer
9Brace, Bottom (L.H.)
9Brace, Bottom (R.H.)
10Retainer, Insulation (2)
11Panel, End (White)
12Retainer, Ignitor
13Retainer, Top Front Insulation
16Panel, Rear
19Frame, Filler Front
23WP488130 Whirlpool Air Conditioner Nut
23Screw No.8 x 1/2
23WP486754 Whirlpool Compactor Screw
23Bracket, Gas Valve (2)
23Nut, 6-32 (6)
25Leg, Leveling (4)
30Cover, Electrical
31Anti Tip Kit
