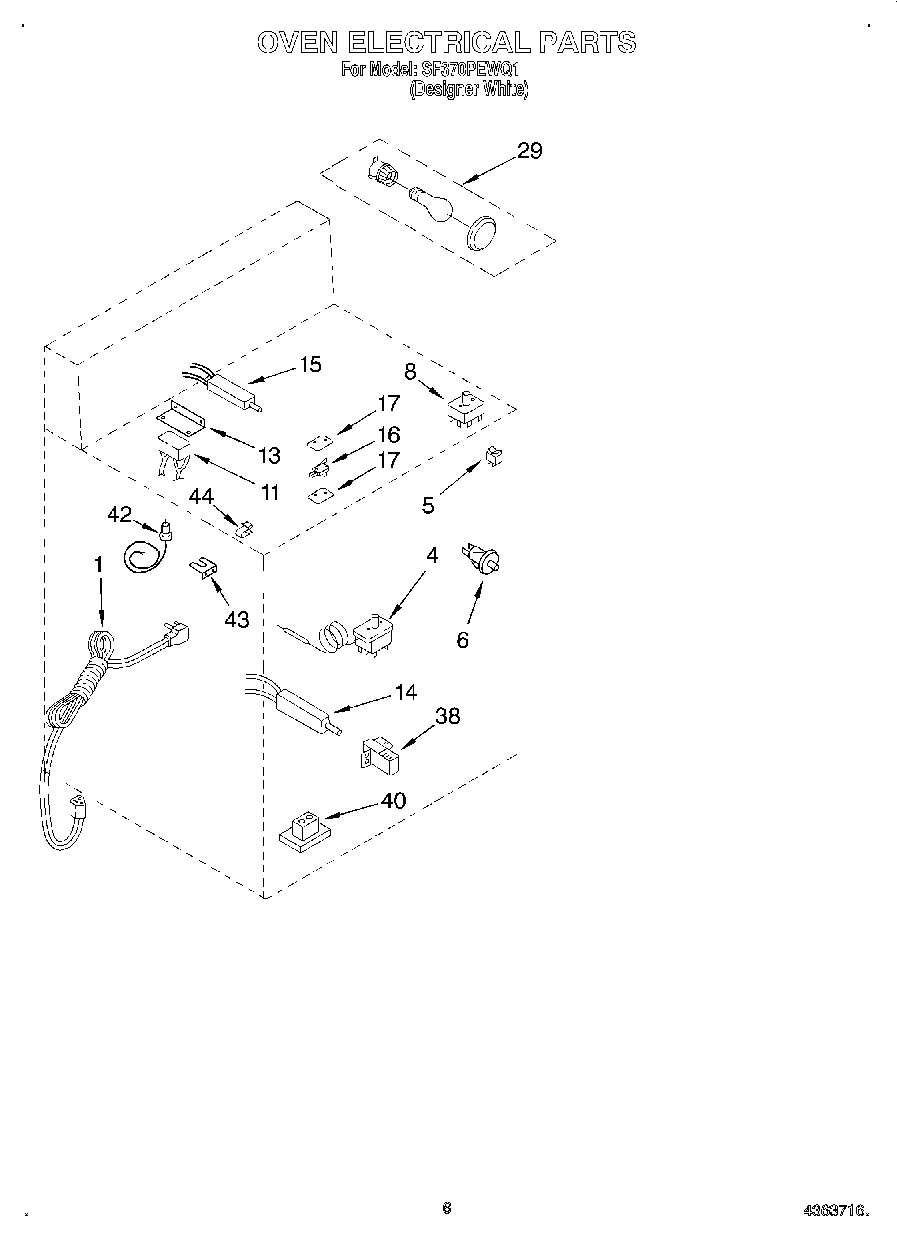

SF370PEWQ1 04 – OVEN ELECTRICAL, LITERATURE

SF370PEWQ1 04 – OVEN ELECTRICAL, LITERATURE

Written by

in

SF370PEWQ1 04 – OVEN ELECTRICAL, LITERATURE

Products

PositionProduct
Diagram, Wiring
Guide, Use & Care
Instructions, Installation
1Cord, Power
4Thermostat, Oven
5Switch, Rocker (White)
6Switch, Oven Light
8Switch, Selector
11Module, Spark
13Bracket, Spark Module
14786324 Whirlpool Flat Igniter
15Ignitor, Broil
16Switch, Oven Door Latch
17screw, 4-40 x 5/8 (2)
17Insulator, Switch
29WP74011278 Whirlpool Light
38Bracket, Bake Ignitor
40Plug, Ignitor Wire
424157608 Whirlpool Surface Igniter
43WPY0070927 Whirlpool Microwave Clip
43WP965173 Whirlpool Dishwasher Screw
44Clip, Cable ESM
