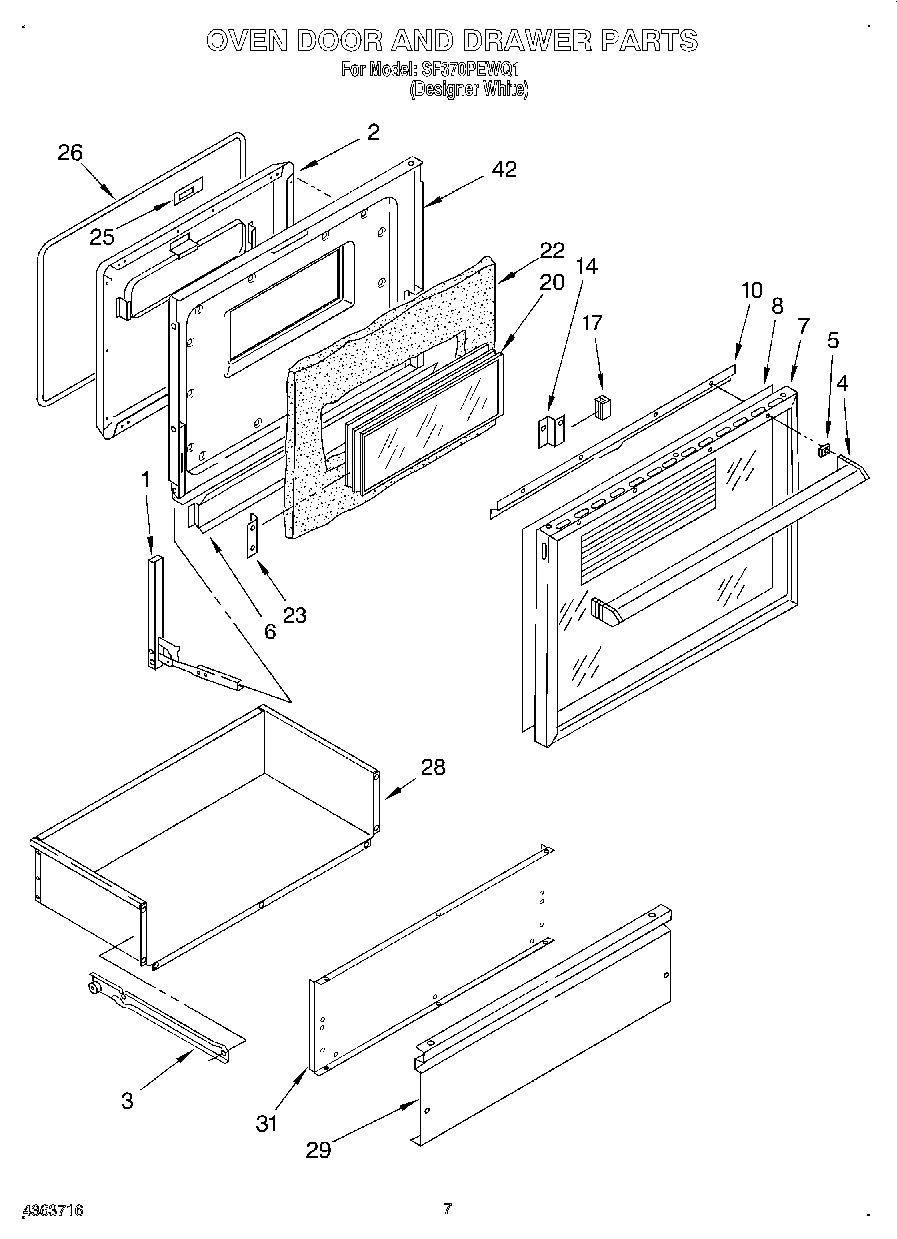

SF370PEWQ1 05 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (R.H.)
1	Hinge, Oven Door (L.H.)
2	Liner, Oven Door
2	WP488130 Whirlpool Air Conditioner Nut
2	Pin-Hinge (2)
2	Screw
2	Runner, Drawer (Screw, 8-18 x 3/8 (4))
3	Runner (R.H.)
3	Runner (L.H.)
4	Handle, Oven Door (White)
5	Spacer, Handle (4)
6	Baffle, Heat
7	Frame (White)
8	Glass, Outer Door
10	Baffle, Air
14	bracket, glass support (4)
17	Bumper, Window (2)
20	Window Assembly
22	Insulation, Door
23	Retainer, Window (4)
25	Plate, Latch
26	gasket assembly
28	Drawer, Storage
29	WP965173 Whirlpool Dishwasher Screw
29	Panel, Drawer (White)
31	Liner, Door Panel
42	Bumper, Rubber
42	Backer, Door
