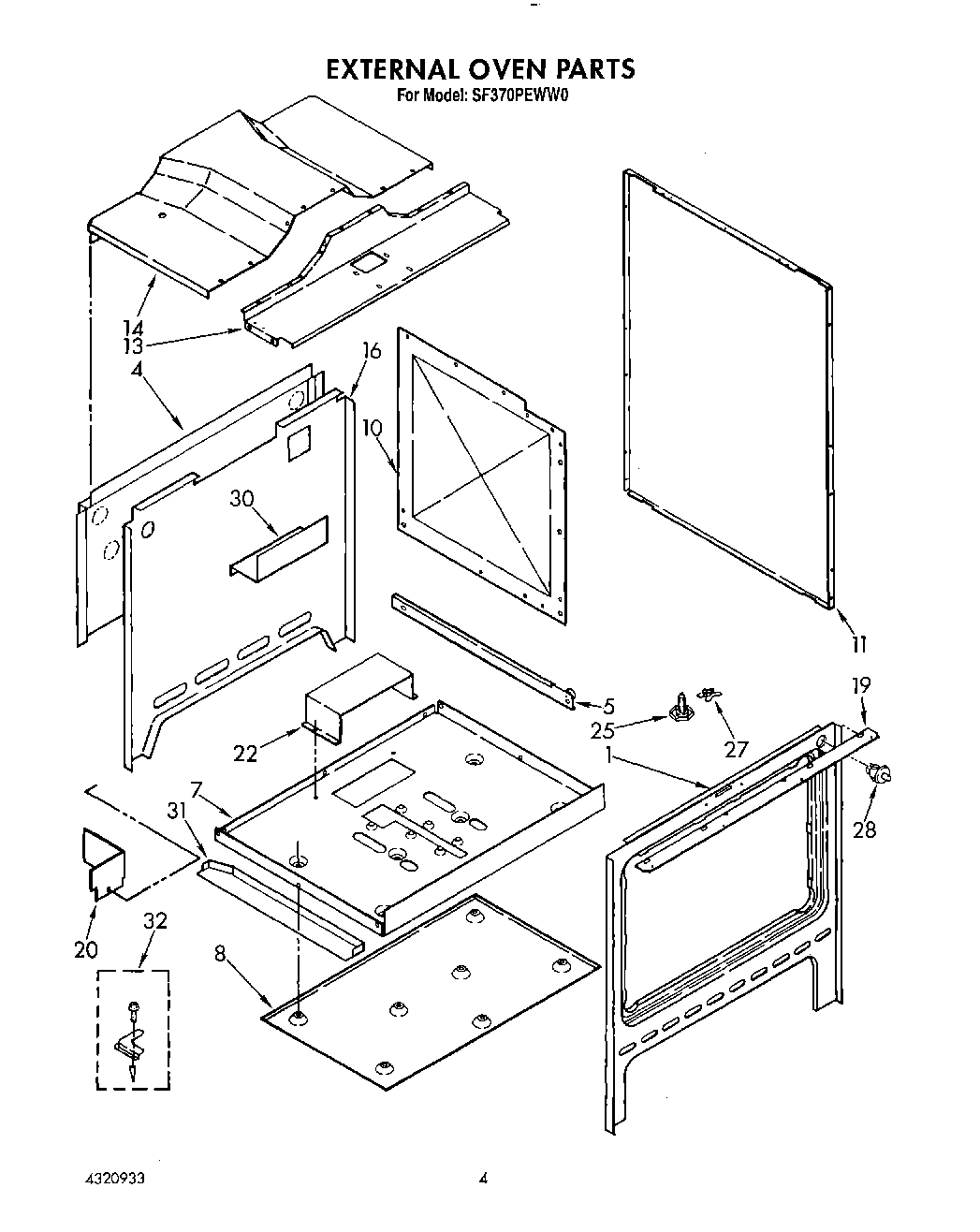

SF370PEWW0 03 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front Not Serviceable
1	Switch, Rocker
4	Retainer, Rear Insulation
5	track, storage drawer (right side)
5	track, storage drawer (left side)
7	retainer, bottom insulation
8	Heat Shield,
10	Retainer, Insulation (2)
11	Panel, End (2) (Almond)
11	Panel, End (2) (White)
13	Retainer, Top Front Insulation
14	Retainer, Top Back
16	WP486754 Whirlpool Compactor Screw
16	bushing, snap
16	nut, 6-32
16	Panel, Rear
16	WP488130 Whirlpool Air Conditioner Nut
16	WP965173 Whirlpool Dishwasher Screw
19	Frame, Filler Front
20	Plate, Cover
22	Retainer, Ignitor
25	leg, leveling (4)
27	Nut (4)
28	Switch, Oven Door
30	cover, electrical
31	Brace, Bottom (R.H.)
31	brace, bottom (l.h.)
32	Anti Tip Kit
