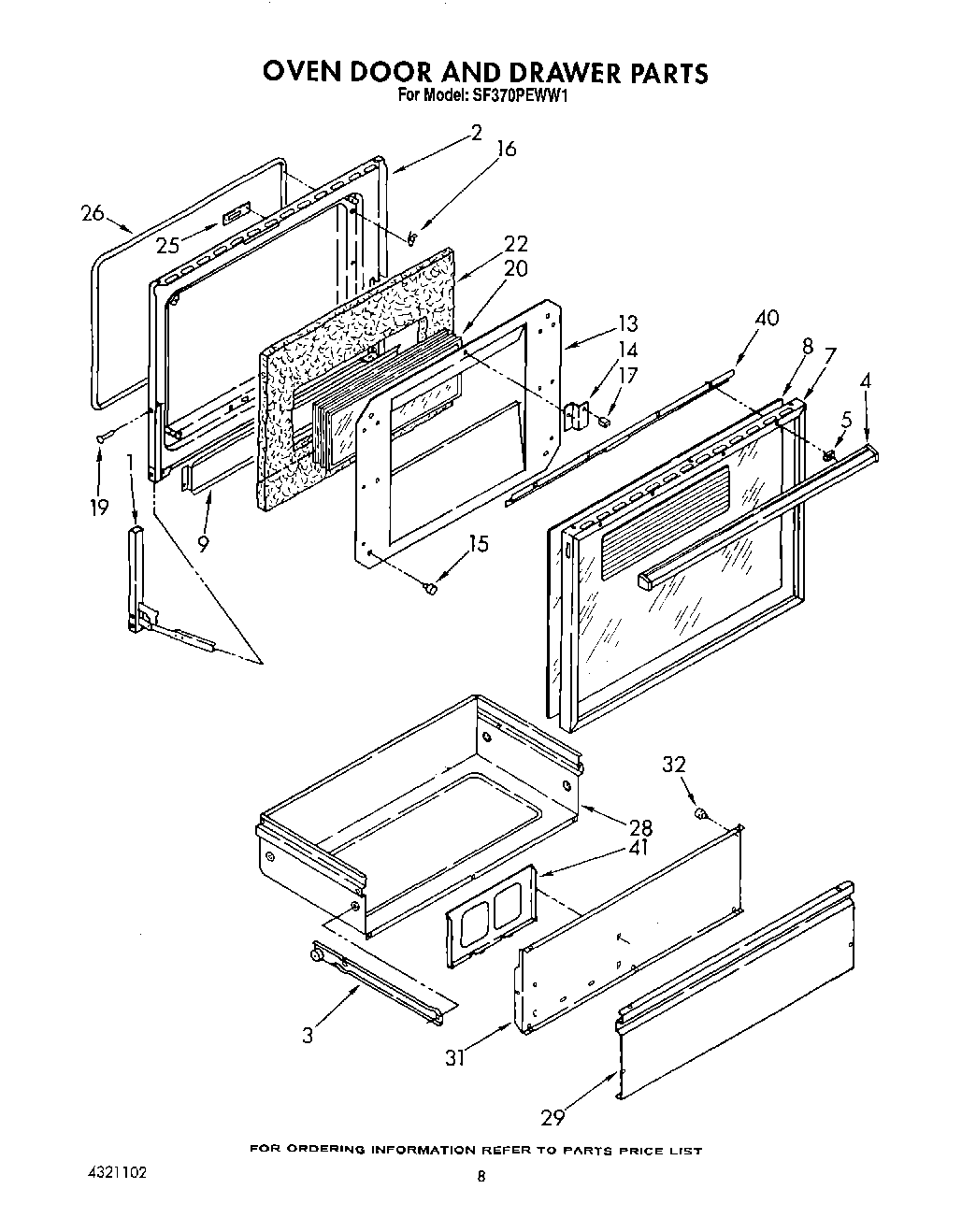

SF370PEWW1 06 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (L.H.)
1	Hinge, Oven Door (R.H.)
2	Screw, 8-32 X 5/8 (4)
2	WP965173 Whirlpool Dishwasher Screw
2	Pad, Oven Door
2	WP308685 Whirlpool Microwave Screw
2	WP488130 Whirlpool Air Conditioner Nut
3	runner (l.h.)
3	Runner (R.H.)
4	Handle
5	Spacer, Handle (2)
7	Frame
8	Panel, Black Glass
9	Baffle, Heat
13	Plate, Insulation
14	bracket, glass support (4)
15	Bumper, Window (2)
16	Clip, Speed (14)
19	Pin, Hinge (2)
20	Retainer, Window (4)
22	Insulation, Door
25	Plate, Latch
26	gasket assembly
28	Wrapper, Storage Drawer
29	Panel, Drawer (Almond)
29	Panel, Drawer (White)
31	Liner, Door Panel
32	Bumper, Rubber
40	Baffle, Air
41	Rack, Literature
