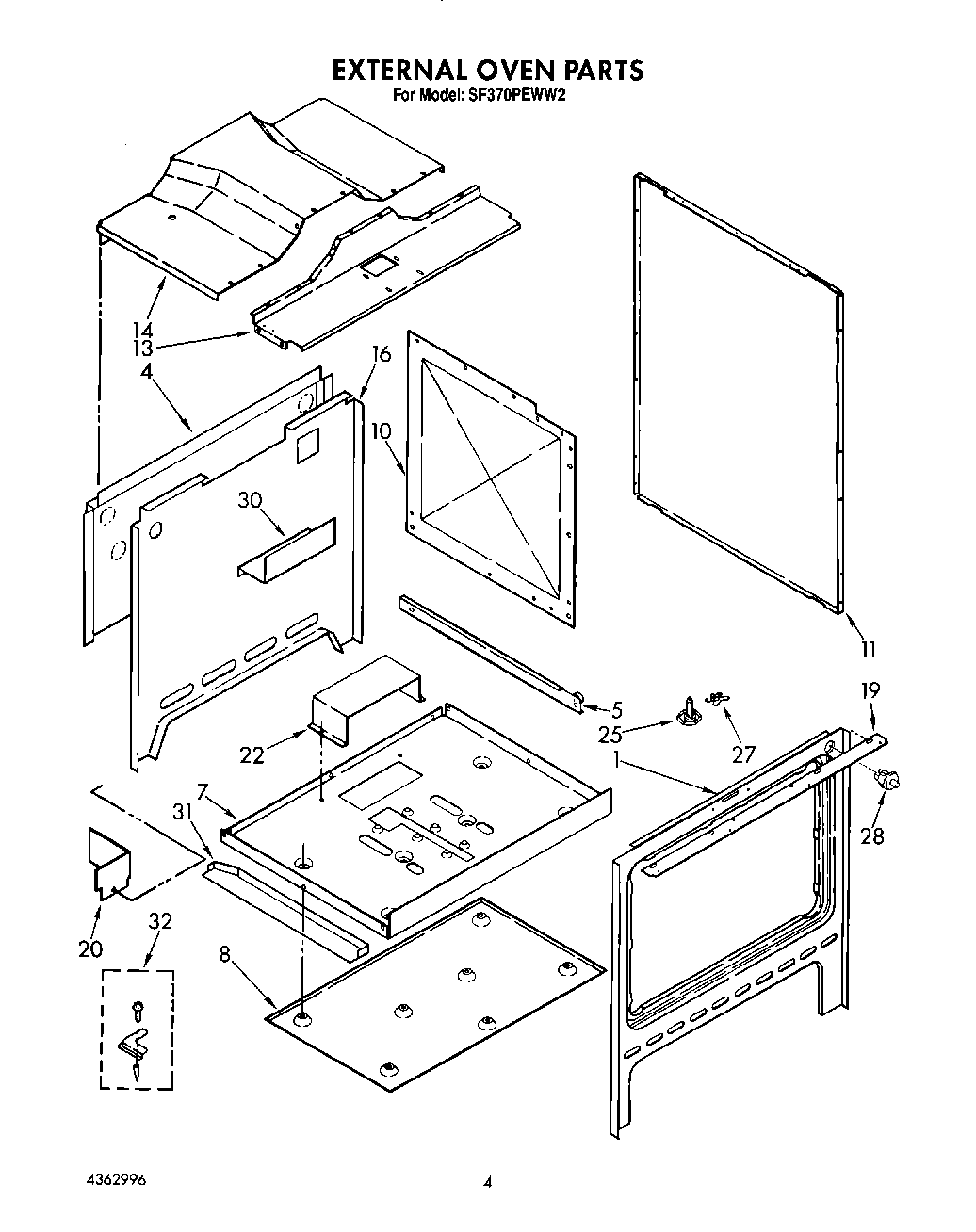

SF370PEWW2 03 – EXTERNAL OVEN

Products

PositionProduct
1Frame, Front
1Switch, Rocker
4Retainer, Rear Insulation
5track, storage drawer (left side)
5track, storage drawer (right side)
7retainer, bottom insulation
8Heat Shield,
10Retainer, Insulation (2)
11Almond
11White
13Retainer, Top Front Insulation
14Retainer, Top Back
16WP965173 Whirlpool Dishwasher Screw
16Bushing, Snap
16nut, 6-32
16Panel, Rear
16WP486754 Whirlpool Compactor Screw
16WP488130 Whirlpool Air Conditioner Nut
19Frame, Filler Front
20Plate, Cover
22Retainer, Ignitor
25leg, leveling (4)
27Nut (4)
28Switch, Oven Door
30cover, electrical
31Brace, Bottom (R.H.)
31brace, bottom (l.h.)
32Anti Tip Kit
