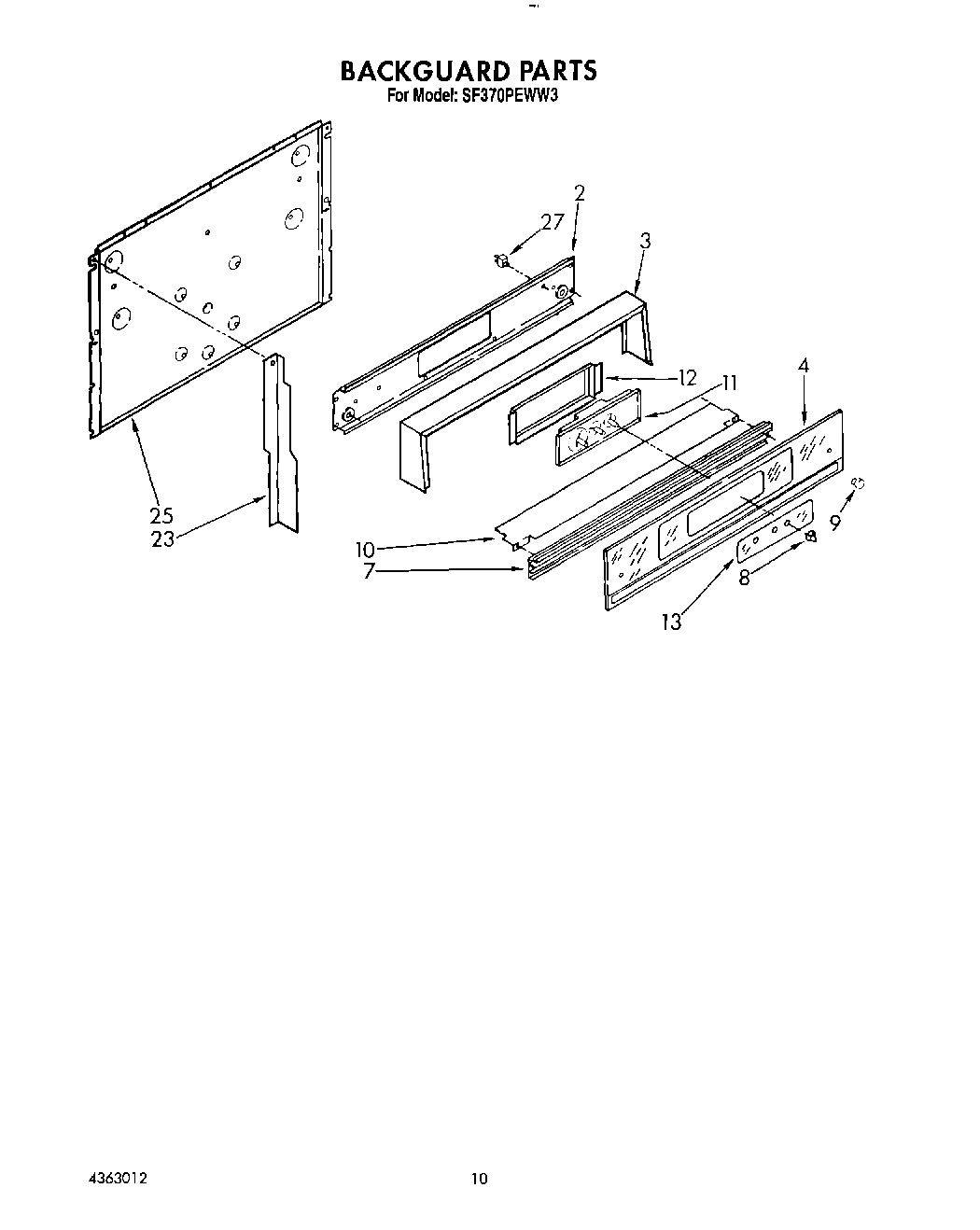

SF370PEWW3 07 – BACKGUARD, LIT/OPTIONALadmin2025-04-26T12:56:14+00:00SF370PEWW3 07 – BACKGUARD, LIT/OPTIONAL
Products
| Position | Product |
|---|
| List, Repair Parts |
| Guide, Use & Care |
| Installation Guide |
| 2 | Panel, Control Mounting (Almond) |
| 2 | Panel, Control Mounting (White) |
| 3 | Frame |
| 4 | Decorative Inlay |
| 7 | Trim, Lower |
| 8 | Knob, Clock |
| 9 | Lens, Indicator Light |
| 10 | Shield, Heat |
| 11 | Clock |
| 12 | Plate, Clock Mounting |
| 13 | Glass, Timer |
| 23 | Support, R.H. |
| 23 | Support L.H. |
| 25 | Panel, Rear |
| 27 | Light, Indicator Oven |
