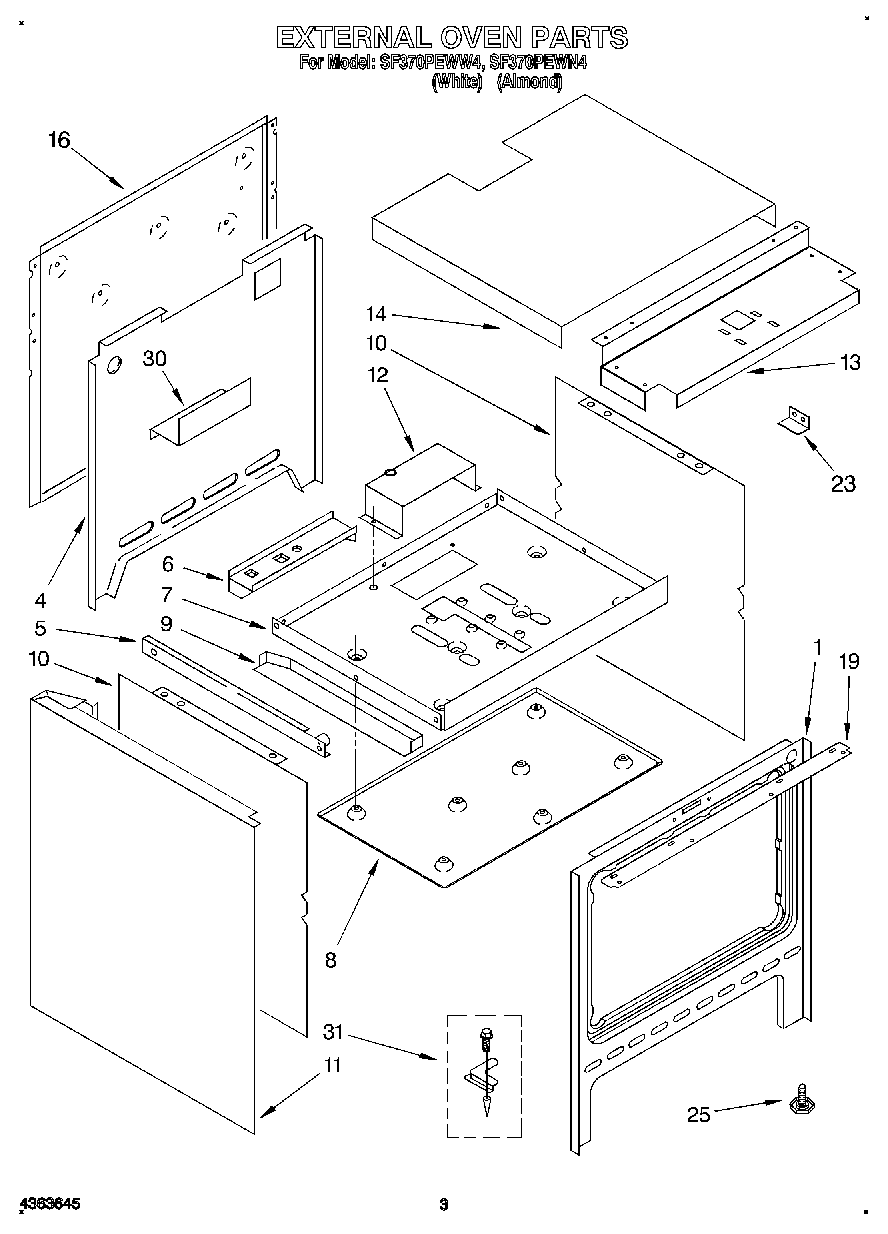

SF370PEWW4 02 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front
4	Retainer, Rear Insulation
5	Track, Storage Drawer (Left Side)
5	Track, Storage Drawer (Right Side)
6	Shelf, Gas Valve
6	Screw No.8 x 1/2
7	retainer, bottom insulation
8	Heat Shield, Storage Drawer
9	Brace, Bottom (R.H.)
9	Brace, Bottom (L.H.)
10	Retainer, Insulation (2)
11	Panel, End (Almond)
11	Panel, End (White)
12	Retainer, Ignitor
12	WP308685 Whirlpool Microwave Screw
13	Retainer, Top Front Insulation
14	Retainer, Top Back
16	Panel, Rear
19	Frame, Filler Front
23	WP488130 Whirlpool Air Conditioner Nut
23	Nut, 6-32 (6)
23	Bracket, Gas Valve (2)
23	WP486754 Whirlpool Compactor Screw
23	WP965173 Whirlpool Dishwasher Screw
25	Leg, Leveling (4)
30	Cover, Electrical
31	Anti Tip Kit
